Johnson/Evinrude/OMC CC205 Control Cable 479 Series

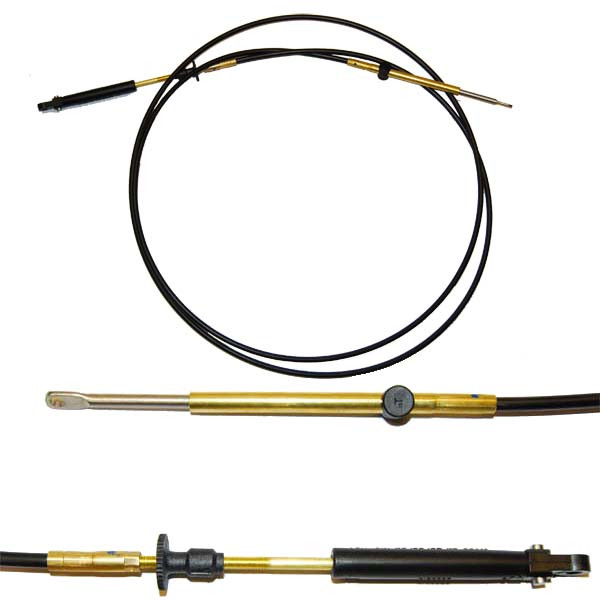

SeaStar Johnson/Evinrude/OMC CC205 Control Cable 479 Series by Dometic

This cable is no longer available. It has been replaced by the SeaStar Extreme CCX205 479 Series Control Cable

The SeaStar  CC205 Control Cable Assembly is a OEM direct-replacement control cable for BRP/OMC/Johnson/Evinrude controls 1979 and newer. These standard performance control cables are replacements for 479 series cables and are suitable for most applications with short, simple cable routings. SeaStar 479 control cables meet OEM specifications for fit, function, reliability, and quality.

SeaStar is a leading aftermarket and OEM manufacturer that specializes in control cables along with steering parts and accessories. SeaStar control cables are some of the best control cables on the market and are an industry leader in steering and throttle cables. They are made with stainless steel and brass fittings that resist corrosion. The wires are manufactured with stainless steel Lubri-Core for a long-lasting control cable that is durable and reliable.

Direct replacement for Teleflex Marine CC205 series original factory control cables. SeaStar Solutions replaced Teleflex Marine and has been acquired by Dometic Group.

Features:

• Drop-in replacement cables are engineered as replacements for original equipment cables.
• Cables use the existing connection components.
• Stainless steel and brass fittings.
• Standard cables use stainless steel Lubri-Core core wire for smooth operation and long life.
• 8" minimum bend radius.
• Black HDPE outer casing for durability and best resistance to UV and chemicals.

Applications:

• Replaces 479 type cables
• BRP / OMC / Johnson / Evinrude and Gale with BRP/OMC controls 1979 to date.

These CC205 Standard series cables come in lengths from 10' to 24'. Lengths 6' to 50' are offered in the Xtreme series cables: TEL-CCX20506.1

How to Order a 479 Series Control Cable - Measure Twice, Order Once

For a New Installation: Measure cable routing path from control head attachment point to engine connection as follows:

Outboards

• Measure from control along unobstructed cable routing to center of outboard.
• Add four feet to allow for loop, which provides unrestricted engine movement.
• Round up to the next foot and order required cable.

Inboards & Sterndrives

• Measure from control along unobstructed cable routing to shift and/or throttle connection.
• Round this dimension up to the next foot and order required cable part.

For Replacement of Existing Cable: If you removed the old cable, measure for replacement cable as follows:

• Measure from tip to tip and round up to the next foot if necessary (aftermarket cables are sold in foot increments up to 30 feet; after that, they are only sold in even foot increments).
• The control cable part number contains its lengths. For example, SeaStar Solutions cables are usually listed as CC205XX, where XX=length in feet.
