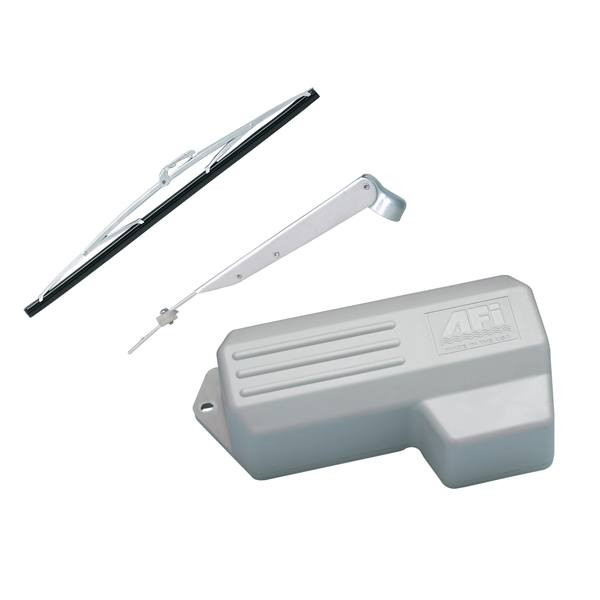

AFI 1000 Wiper Kit - 80 Degree Sweep Set

AFI 1000 Wiper Kit - 80 Degree Sweep Set

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
• 0.625" diameter shaft (16 mm)
• 12 volt heavy-duty motor with anti-rotation drive shaft
• Knurled drive shaft and solid brass arm drive nut
• Coast to park with adjustable right or left self parking
• Retail version includes 5 amp fuse and holder (on/off switch not included)
• RF shielded circuitry
• Weight: 1.75 lbs
• Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
• Measures approximately 6.625" L x 3.375"W x 2" D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps

Frequently Asked Questions

What is the AFI 1000 Wiper Kit - 80 Degree Sweep Set used for?

The AFI 1000 Wiper Kit - 80 Degree Sweep Set is a 12-volt marine wiper motor system designed to power 18-inch Deluxe arm and blade combinations at an 80-degree or smaller sweep. It can also operate 16-inch Deluxe arm and blade combinations with a 110-degree sweep.

What sweep angles can the AFI 1000 Wiper Motor use?

The AFI 1000 Wiper Motor comes factory preset for an 80-degree or 110-degree sweep and can be adjusted to 50, 65, 80, or 110 degrees. The 80-degree configuration is designed for an 18-inch Deluxe arm and blade combination, while the 110-degree setting supports a 16-inch combination.

What are the electrical specifications of the AFI 1000 Wiper Kit?

The AFI 1000 Wiper Motor operates on 12 volts and has a stall torque of 55 in-lbs, stall current of 9.8 to 10.0 amps, and no-load current of 0.8 to 1.2 amps. The retail version also includes a 5-amp fuse and holder, but an on/off switch is not included.

Does the AFI 1000 Wiper Motor have adjustable parking?

Yes. The AFI 1000 Wiper Motor features coast-to-park operation with adjustable right- or left-side self-parking. This allows the motor's parking position to be configured for the desired side.

What shaft lengths are available for the AFI 1000 Wiper Kit?

The AFI 1000 Wiper Kit is available with either a 1.5-inch or 2.5-inch shaft length. The listed shaft length includes 0.5 inch of knurled arm fitting. The motor has a 0.625-inch (16 mm) diameter shaft and measures approximately 6.625 inches long by 3.375 inches wide by 2 inches deep.
