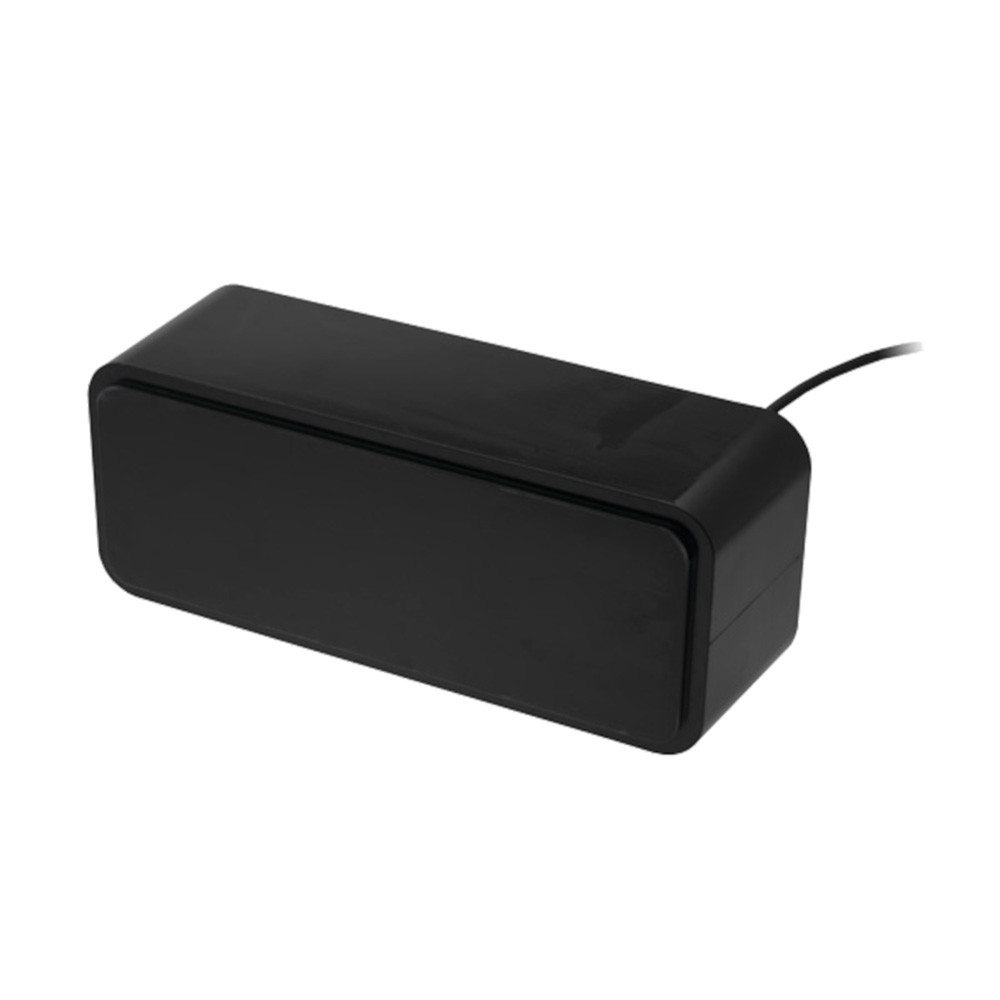

Airmar CM599LH 1-3kW Pocket Mounted Transducer - No Connector

CM599LH 1-3kW Pocket Mounted Transducer - No Connector

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000') plus the incredible resolution that the high-frequency band delivers.

The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beamwidth.

Features:

• Depth and fast-response water-temperature sensing
• 2 to 3 kW of power for exceptional deep-water performance
• Low frequency: 28 to 60 kHz
• 23° to 9° port-starboard beamwidth
• 11° to 5° fore-aft beamwidth
• Maximum depth to 3048 m (10000')
• High frequency: 130 to 210 kHz
• 8° to 4° beamwidth
• Maximum depth to 457 m (1500')
• 112 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200  kHz plus everything else in the bandwidth
• Resin housing with curved-edge design for wet-box installation
• Can be installed in a cavity or welded tank
• Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts
• Patented Xducer ID® technology

Specifications:

• Frequency Band: Low-High
• Functions: Depth, Temperature
• Material: Urethane
• Mounting Style: Tank, Cavity, Pocket/Keel Mount
• Connector: Bare Wire
• Display Connector: 0
• Hull Material: Fiberglass or metal
• Max Vessel LOA: 8 m (25') and above
• High Frequency: 130-210 kHz
• Common Use: Fishing, Commercial Fishing
• Max Deadrise Angle: Any
• Tilted Element: No
• Low Frequency Beamwidth: 11°x23°-5°x9°
• Low Frequency: 28-60 kHz
• High Frequency Beamwidth: 8°-4°
• Max Deadrise: Accommodates any deadrise angle based on custom installation
• Power Rating: 2-3 kW
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Country of Origin: USA
• Cable-Length: 15 m (49')
• Weight: 14.2 kg (31.2 lb.)
• Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
