Blue Sea Compact 8 Circuit Fuse Block

SKU:
BSS-5046
Availability:
In Stock - Ships Today
List Price: $55.99
Starting At: $41.99
You save $14.00

Earn Captains Club Points Learn More

FREQUENTLY BROUGHT TOGETHER

PRODUCT DESCRIPTION

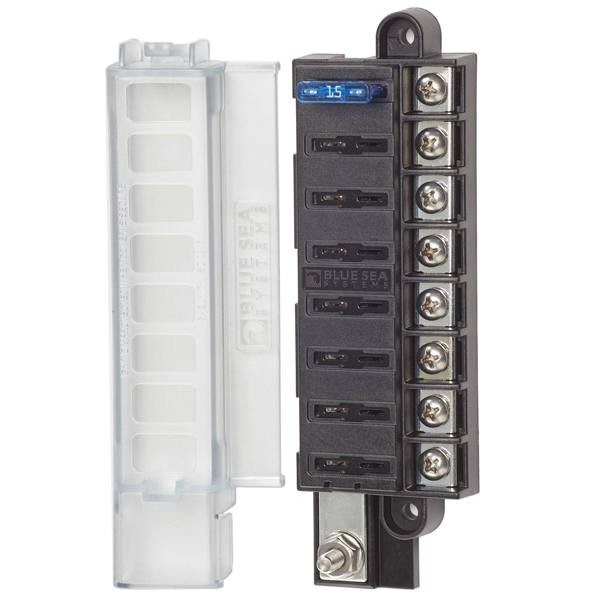

Blue Sea Systems ST Blade Compact 8 Circuit Fuse Block

Blue Sea Systems' Compact Fuse Blocks provide surface mount circuit protection for ATO/ATC fuses in a compact footprint. Includes a cover and eight write-on circuit labels. The insulating cover meets ABYC/USCG insulation requirements.

  • Ignition protected when cover is secure - meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 8 write-on circuit labels
  • Fuses sold separately

Specifications:

  • Circuits: 8
  • Maximum Amperage: 100A per block | 30A per circuit
  • Maximum Voltage: 32V DC
  • Mounting: #8 Screw
  • Terminal Stud Torque: 24 in-lb
  • Screw Terminal Torque: 15 in-lb
  • Screw Terminal Type: #8-32 Screws with captive star lock washer
  • Terminal Stud Size: #10-32
  • Weight: 0.40lb
