Blue Sea Momentary Push Button Backlit Switch - Off/On

free shipping
SKU:
BSS-4181
Availability:
In Stock - Ships Today
List Price: $70.49
Starting At: $63.99
(You save $6.50

Earn Captains Club Points Learn More

FREQUENTLY BOUGHT TOGETHER

Description

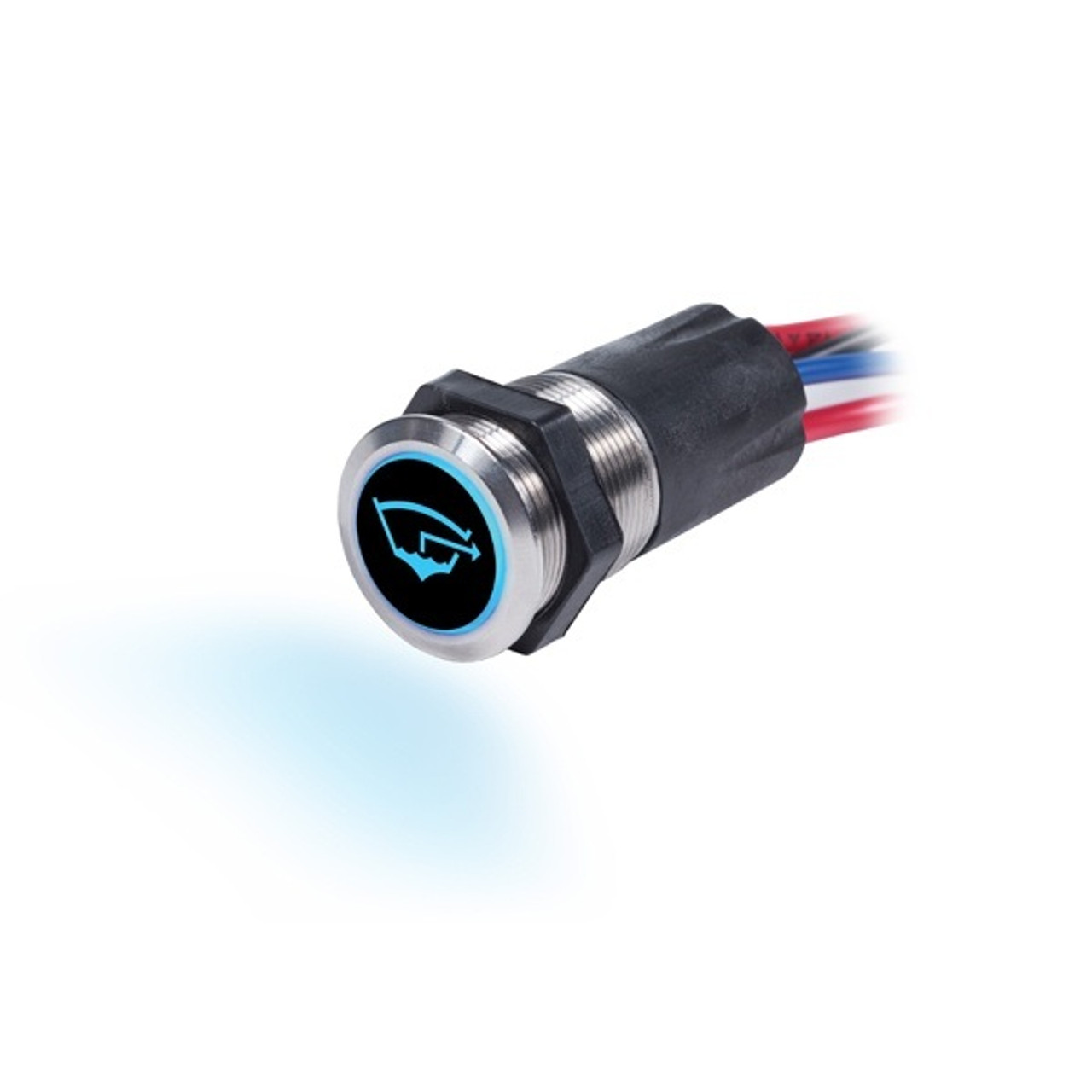

Blue Sea Momentary Push Button Backlit Switch - Off/On

This Blue Sea Momentary Push Button Backlit Switch - Off/On features five included ICON labels. The labels include: accessory, lights, anchor light, running light, and bilge pump. This momentary switch has a nominal voltage of 12V DC and a maximum voltage of 15V DC. The backlit button is blue when it is off and red when it is on.

Features:

  • Momentary
  • Five ICON Labels Included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
  • Backlit Button Is Blue When OFF and Red When ON
  • Additional 50 ICON Label Kit Sold Separately

Specifications:

  • Action: OFF-(ON)
  • Weight: 0.35 lb (0.16 kg)
  • Nominal Voltage: 12V DC
  • Maximum Voltage: 15V DC
  • Temperature Range: -20°C to 55°C
  • Amperage: 15A @ 12V DC
  • Maximum LED Operating Current: 20mA
  • Switching Cycles: 10,000
  • Max Panel Thickness: 0.24in (6.1 mm)
  • Mounting Hole: 7/8" (22mm)
  • Termination: 3" - Bare Wire Pigtail
  • Wire Size: Black & Blue Wires 18 AWG, Red & Orange Wires 16 AWG
