Bob's Machine Action Series Hydraulic Jack Plate

free shipping
SKU:
BOB-100-106010.1
Availability:
In Stock Ships Today
List Price: $1,635.29
Starting At: $1,421.99
(You save $213.30

FREQUENTLY BOUGHT TOGETHER

  • Choose Options
  • Choose Options

Description

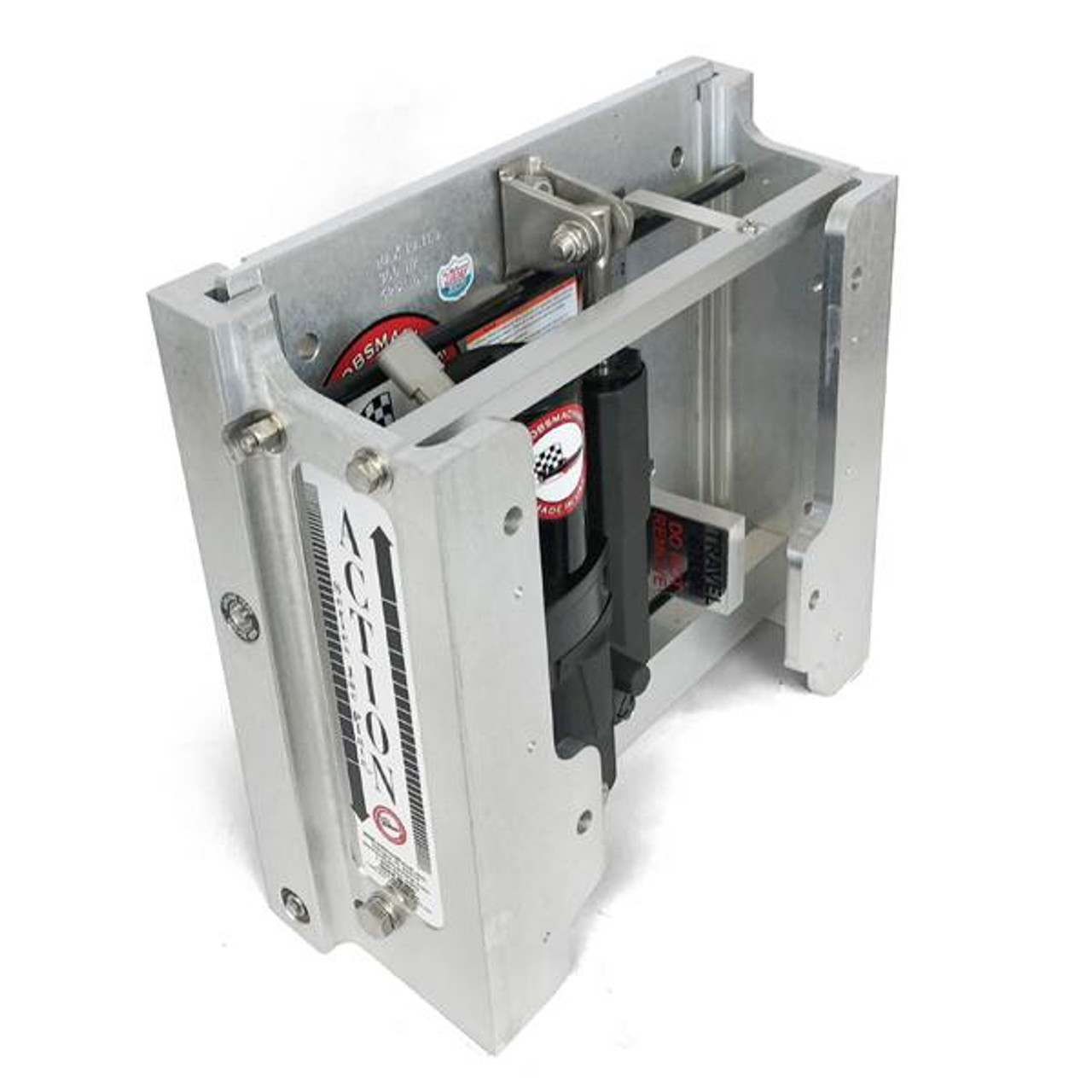

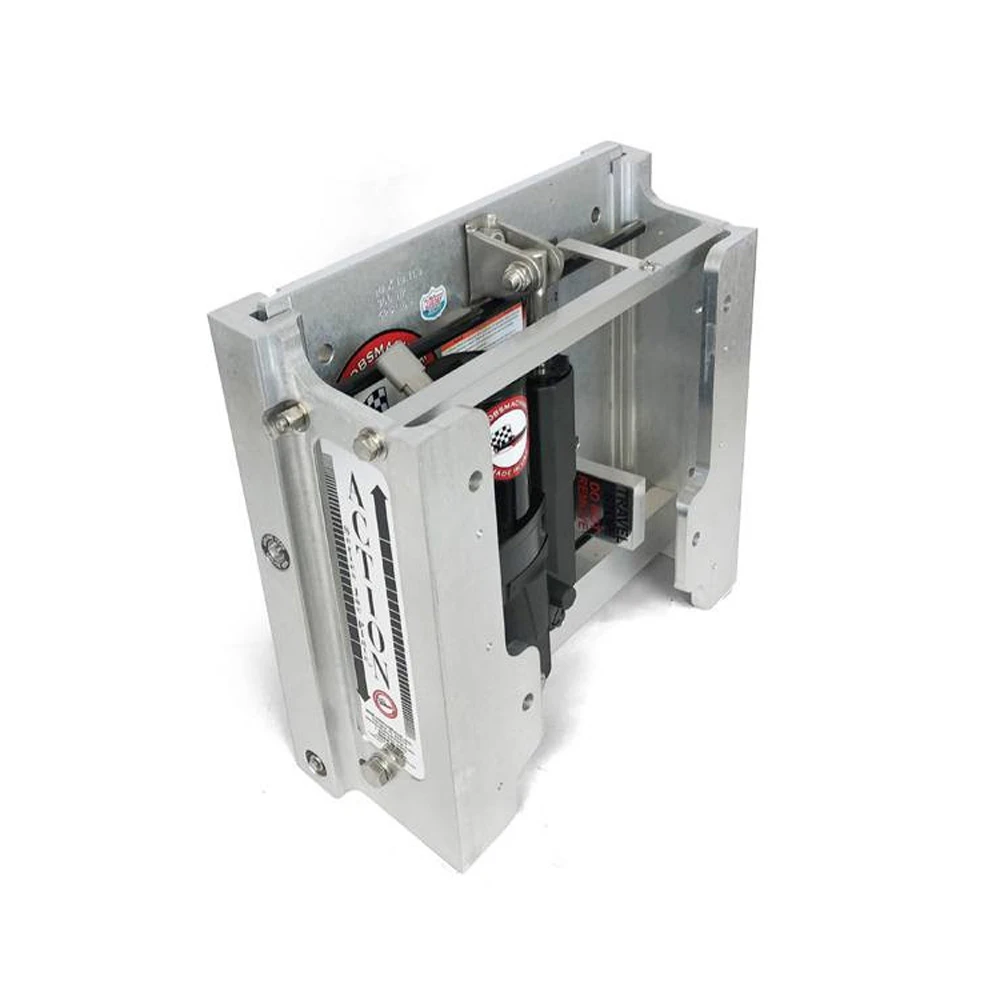

Bob's Machine Action Series Hydraulic Jack Plate

Bob's Machine Action Series Hydraulic Jack Plates are built to be powerful, durable, and versatile. The Action Series jack plates are the first jack plates to offer a pump inside the jack plate structure, eliminating the need to mount a pump inside the boat. This unique feature gives boaters more room inside the boat and helps save time in rigging. Additionally, this jack plate can be converted to have the pump inside the boat if the owner desires to change styles. The internal pump has a motor stronger than any other internal jack plate on the market; the result is greater lifting speed and strength with heavy outboards.

Bob's Action Series Jack Plates incorporate many great features including automotive-style grease nipples in the side rails, tension rods, a three year warranty on the pump and a limited lifetime warranty on the structure. These jack plates are offered in 6", 8", 10", and 12" setbacks, Unlike competitors that require setback spacers to achieve proper setback, Bob's jack plates offer a 1 piece design. Jack plate, wiring harness, relays, and a rocker style switch are all included.

Features:

  • Rated for 300 HP, up to 625 lbs. motors
  • Provides 7.5" of lift
  • Internal pump inside plate for easier rigging
  • Large powerful motor can lift heavy outboards under full power
  • One piece jack plate - no C-Channels to bolt on to increase setback
  • Can be converted to have pump inside the boat
  • Pre-drilled for dual side mount Power Pole brackets
  • Automotive grease fittings
  • Adjustable tension rods
  • Wiring is plug and play with waterproof Deutsch connectors
  • Includes jack plate, wiring harness, relays, rocker style switch
  • Made in the USA

Specifications:

Item Model Plate Weight Max. HP Setbacks
100-106010 6" Action Series 52 lbs. 300 HP 6"
100-108001 8" Action Series 56 lbs. 300 HP 8"
100-111000 10" Action Series 61 lbs. 300 HP 10"
100-112112 12" Action Series 67 lbs. 300 HP 12"

Warranty:

  • 5 Year Action Pump Warranty
  • Limited lifetime structure warranty against manufacturing defects
