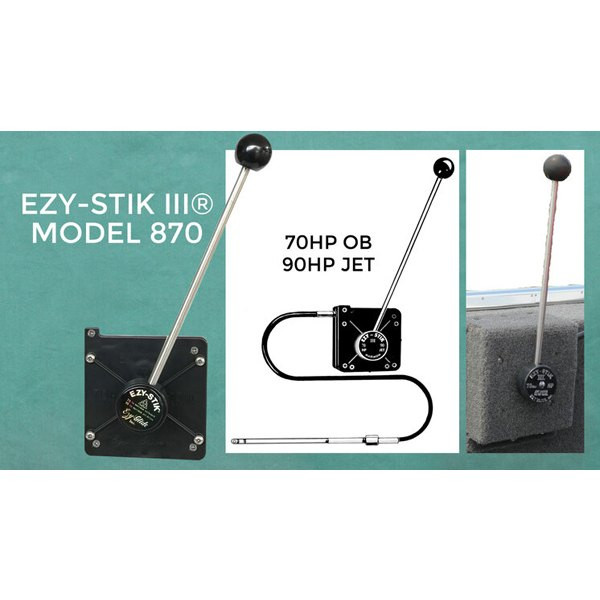

EZY-Glide EZY-Stik III Model 870 Mechanical Steering Kit

EZY-Glide EZY-Stik III Model 870 Mechanical Steering Kit

The Ezy-Stik III has incorporated many of the outstanding and time proven features of the Model 840. These great features include a one piece stainless steel drive spool, and reinforced composite housing. The Model 870 has been developed due to the increased demand for a system with quicker response and shorter lock-to-lock travel distance. The quicker turning ratio provides a faster response and a shorter travel distance from lock to lock.

Due to the fact that 4-stroke engines transfer more negative torque feedback to the operator, if the engine is a 4-stroke over 40 HP, the Ezy-Stik II Model 840 should be considered over the Model 870. Although the 870 has a horsepower rating of 70HP/90HP Jet, it is not recommended for 4-stroke engines over 40 HP.

This system is rated for:

• Outboard engines not to exceed 70 HP
• Jet drives not to exceed 90 HP

Specifications:

• Total lever movement: 44.8 inches/161 degrees
• Steering ratio: 5.0/1
• Housing dimensions: Approx. 7-1/2" x 7-1/2"
• Lever length: 16"

How to Measure a New System or Replacement Cable Length from EZY-Glide

• Measure from the center of the helm position to the center of the engine.
• Add 8" to this measurement.
• Round up your system length measurement to the nearest 1/2 foot. (For example, a 12'2" measurement would order a 12-1/2' cable)

 Click to Download EZY-Stik III Model 870 Installation Instructions

Frequently Asked Questions

What is the EZY-Glide EZY-Stik III Model 870 Mechanical Steering Kit used for?

The EZY-Glide EZY-Stik III Model 870 is a mechanical steering system designed for outboard engines up to 70 HP and jet drives up to 90 HP. Its quicker steering ratio provides faster response and shorter lock-to-lock travel compared with systems designed with a slower turning ratio.

What horsepower engines are compatible with the EZY-Glide EZY-Stik III Model 870?

The Model 870 is rated for outboard engines not exceeding 70 HP and jet drives not exceeding 90 HP. However, it is not recommended for 4-stroke engines over 40 HP because these engines transfer more negative torque feedback to the operator.

Why does the EZY-Glide Model 870 provide quicker steering response?

The Model 870 was developed with a quicker turning ratio to provide faster steering response and a shorter travel distance from lock to lock. Its steering ratio is 5.0:1, with total lever movement of 44.8 inches and 161 degrees.

What are the main construction features of the EZY-Glide EZY-Stik III Model 870?

The EZY-Stik III Model 870 incorporates a one-piece stainless steel drive spool and reinforced composite housing. The housing measures approximately 7-1/2 inches by 7-1/2 inches, and the lever length is 16 inches.

How do I determine the correct cable length for the EZY-Glide Model 870?

Measure from the center of the helm position to the center of the engine, then add 8 inches. Round the resulting system length up to the nearest 1/2 foot. For example, a measurement of 12 feet 2 inches would require ordering a 12-1/2-foot cable.

What should I consider before choosing the EZY-Glide Model 870 for a 4-stroke engine?

If the outboard is a 4-stroke engine over 40 HP, the Model 870 is not recommended even though its overall rating reaches 70 HP. The product description recommends considering the Ezy-Stik II Model 840 instead for 4-stroke engines over 40 HP.
