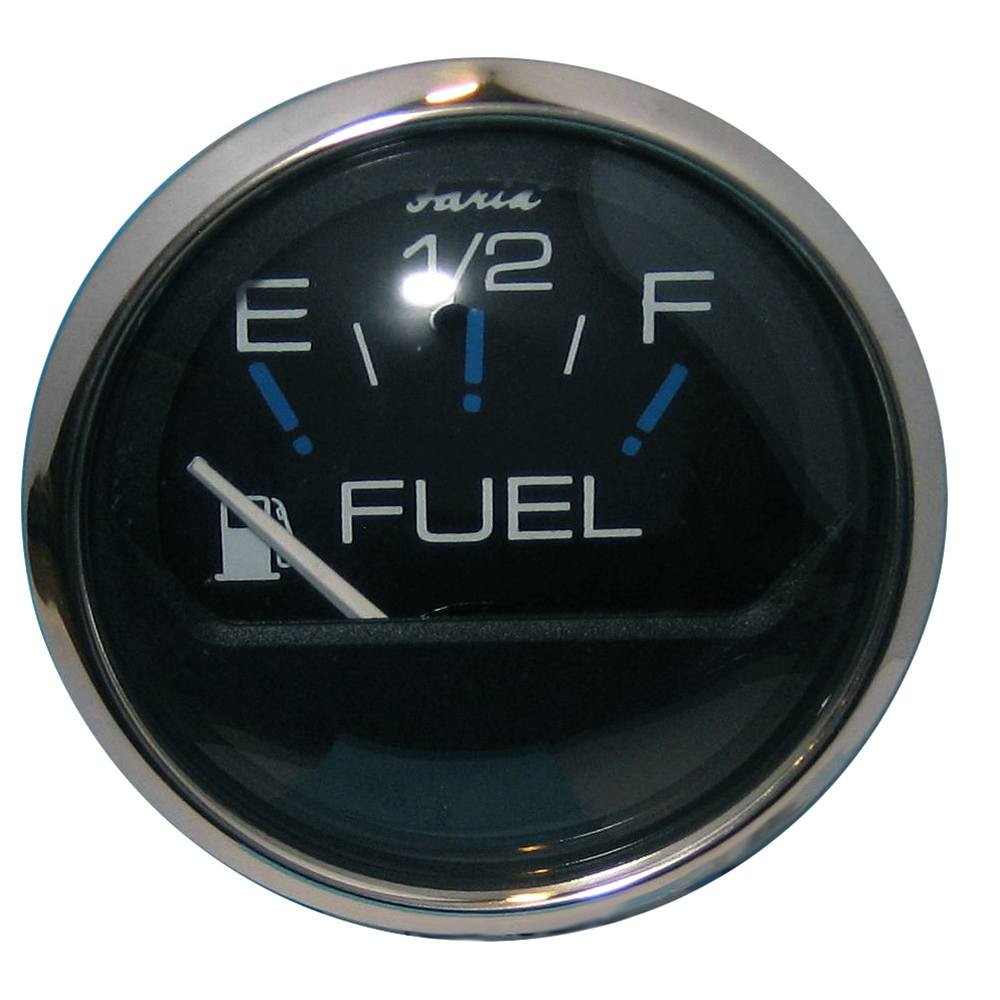

Chesapeake black SS 2" Fuel Level Gauge (E-1/2-F)
2" - Hole Size: 2.0625" (53mm)
Fuel Level gauge operates by sending a low amperage current through the gauges's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...
As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.
Quick Guide (pdf)
