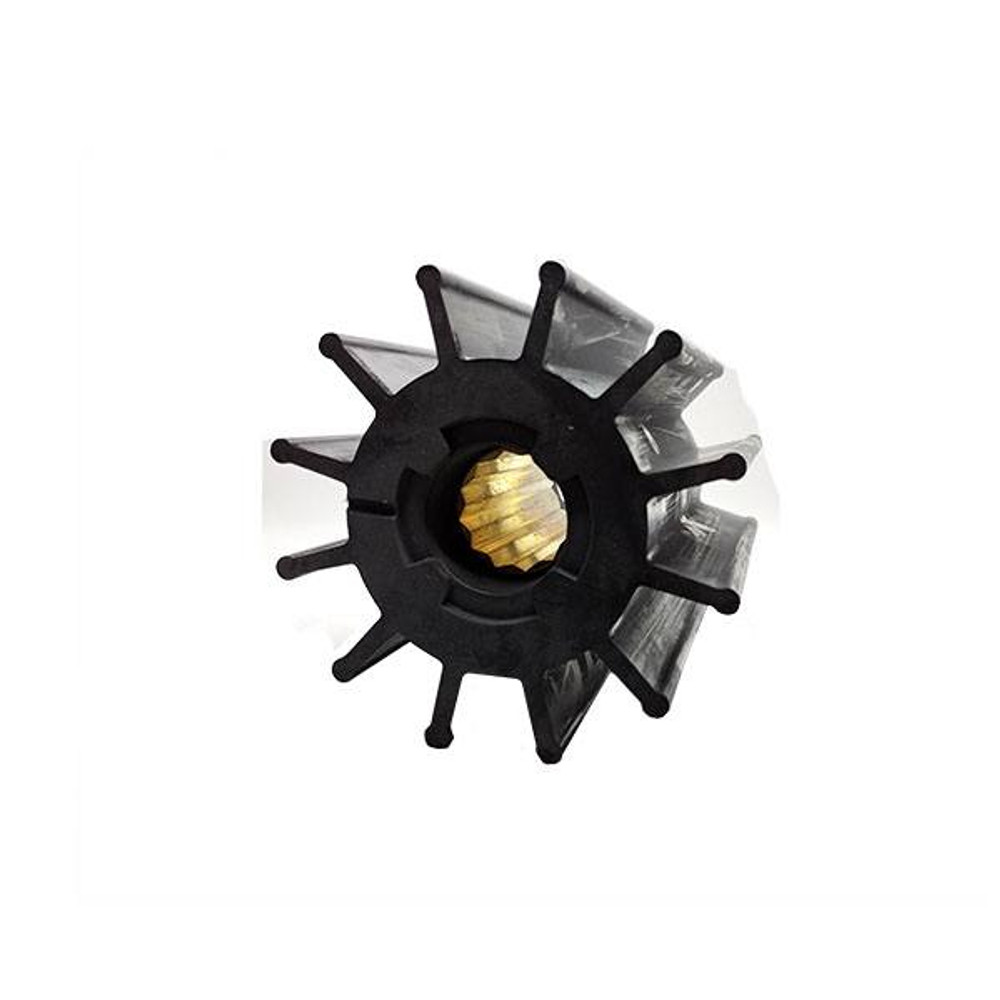

Jabsco 17938-0001-P Impeller replaces Volvo D12/D13/D16

Jabsco 17938-0001-P Impeller replaces Volvo D12/D13/D16

This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, 2 O-rings and instructions for easy installation.

Replaces:

• Volvo
• D12 3830663
• D12 3830459
• D13 3830459
• D16 3830459

Specifications:

• Diameter: 3-3/4"
• Width: 3-3/4"
• Shaft Diameter: 1"
• Drive Type: Spline Drive
• Material: Neoprene
• Blades: 12

Jabsco 17954-0001-P Impeller Installation Instructions

1. Remove screws, endcover, and gasket
2. Remove old impeller using Jabsco removal tool
3. Remove any debris from pump chamber
4. Lubricate inside pump wall and grease
5. Insert replacement impeller into impeller bore with a twisting motion
6. Fit replacement gasket and endcover
7. Tighten endcover screws

Frequently Asked Questions

What is the Jabsco 17938-0001-P Impeller used for?

The Jabsco 17938-0001-P Impeller is a replacement water pump impeller made from neoprene. It is listed as a replacement for Volvo D12, D13, and D16 applications and features a 12-blade design with a spline drive.

Which Volvo engines does the Jabsco 17938-0001-P Impeller replace?

The Jabsco 17938-0001-P Impeller replaces Volvo D12 part numbers 3830663 and 3830459, Volvo D13 part number 3830459, and Volvo D16 part number 3830459. Verify the existing impeller part number before ordering to confirm it matches your application.

What are the dimensions and specifications of the Jabsco 17938-0001-P Impeller?

The Jabsco 17938-0001-P Impeller has a 3-3/4" diameter, 3-3/4" width, and 1" shaft diameter. It uses a spline drive, is made from neoprene, and has 12 blades.

What is included with the Jabsco 17938-0001-P Impeller?

The Jabsco 17938-0001-P Impeller comes with lubricant, two O-rings, and installation instructions. These components are included with the impeller for the replacement procedure provided in the product description.

How do you install the Jabsco replacement impeller?

Remove the screws, endcover, and gasket, then remove the old impeller using a Jabsco removal tool. Clean debris from the pump chamber, lubricate and grease the inside pump wall, and insert the replacement impeller into the impeller bore with a twisting motion. Install the replacement gasket and endcover, then tighten the endcover screws.
