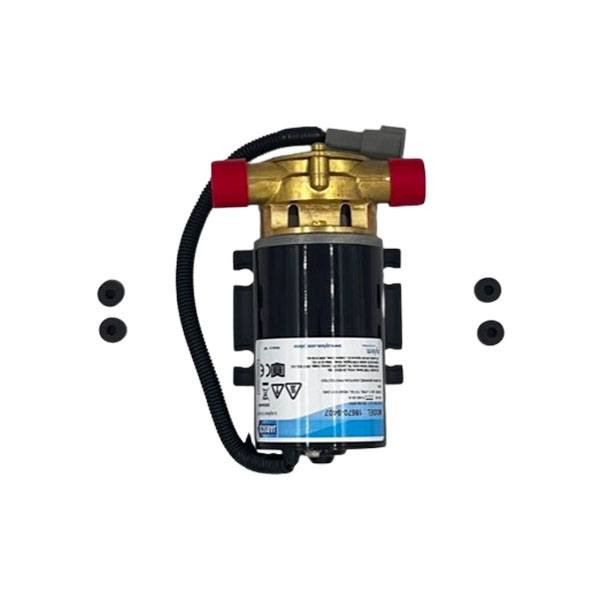

Add to CartThis ballast pump from Jabsco is a reversible pump, meaning that it can both fill and empty your ballast tank. This pump can add approximately 80 pounds of ballast water every minute, with a flow rate of 9 GPM. It is self priming up to 3 ft. This pump acts in accordance with USCG 183.410 and ISO 8846 Marine (ignition protection).
Engineered with a bronze pump head and oil-resistant nitrile impeller for a long lasting life in marine environments. This high-pressure and high flow pump is ideal for bilge pumping, livewell circulation, draining bait tanks, engine oil changing and washdown applications.
Ballast Pump Specifications:
Replacement:
What is the Jabsco 18670-9407 Mastercraft Ballast Pump used for?
The Jabsco 18670-9407 Mastercraft Ballast Pump is a reversible pump designed to both fill and empty ballast tanks. It provides a 9 GPM flow rate and is also described for bilge pumping, livewell circulation, bait tank draining, engine oil changing, and washdown applications.
How does the Jabsco 18670-9407 Mastercraft Ballast Pump fill and empty a ballast tank?
The Jabsco 18670-9407 is reversible, allowing the pump to move water in either direction for filling or emptying a ballast tank. The product description states that it can add approximately 80 pounds of ballast water per minute with its 9 GPM flow rate.
What are the specifications of the Jabsco 18670-9407 Mastercraft Ballast Pump?
The pump has a 9 GPM (34 LPM) flow rate and operates at a nominal 12 VDC. It has a maximum current draw of 12A and requires a 20A fuse. The pump is self-priming to 3 feet.
What type of connections does the Jabsco 18670-9407 Mastercraft Ballast Pump use?
The Jabsco 18670-9407 Mastercraft Ballast Pump has a 1-inch hose barb or 1/2-inch NPT internal connection. Verify your existing plumbing connection before installation to ensure the pump matches your system.
Is the Jabsco 18670-9407 Mastercraft Ballast Pump ignition protected?
Yes. The Jabsco 18670-9407 Mastercraft Ballast Pump is described as complying with USCG 183.410 and ISO 8846 Marine ignition protection requirements.
What materials are used in the Jabsco 18670-9407 Mastercraft Ballast Pump?
The pump features a bronze pump head and an oil-resistant nitrile impeller. These components are specified as part of the pump's construction for marine applications.
