Add to CartThis Johnson Pump macerator pump takes care of toilet waste. A rotary cutter shreds waste before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet or the bowl discharge outlet.
Features:
Dimensions:
Click to Download Johnson Macerator Pump User Manual

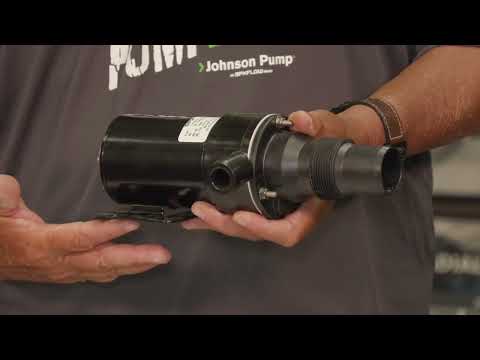

What is the Johnson Pump TA3P10-19 Macerator Pump used for?
The Johnson Pump TA3P10-19 Macerator Pump is designed to handle toilet waste by using a rotary cutter to shred waste before pumping it into or out of a holding tank. For installation, the pump should be connected as close as possible to the holding tank discharge outlet or bowl discharge outlet.
What flow rate does the Johnson Pump TA3P10-19 Macerator Pump provide?
The Johnson Pump TA3P10-19 Macerator Pump has a capacity of 10 GPM at 0.2 bar. It uses a 12V DC motor and has a listed current draw of 15 amps with a recommended fuse size of 20 amps.
What hose connections does the Johnson Pump TA3P10-19 use?
The Johnson Pump TA3P10-19 has a 1-1/2-inch inlet connection that accepts either 1-1/2-inch hose or 1-1/2-inch BSP. The outlet connection is designed for 1-inch hose.
What materials are used in the Johnson Pump TA3P10-19 Macerator Pump?
The Johnson Pump TA3P10-19 features a phenol plastic motor body, a thermoplastic polyester housing, a nitrile impeller, and a stainless steel shaft. It uses a lip seal as part of its construction.
What are the dimensions of the Johnson Pump TA3P10-19 Macerator Pump?
The Johnson Pump TA3P10-19 measures 9.06 inches long, 4.25 inches wide, and 3.23 inches high. The pump weighs 4.2 pounds.
