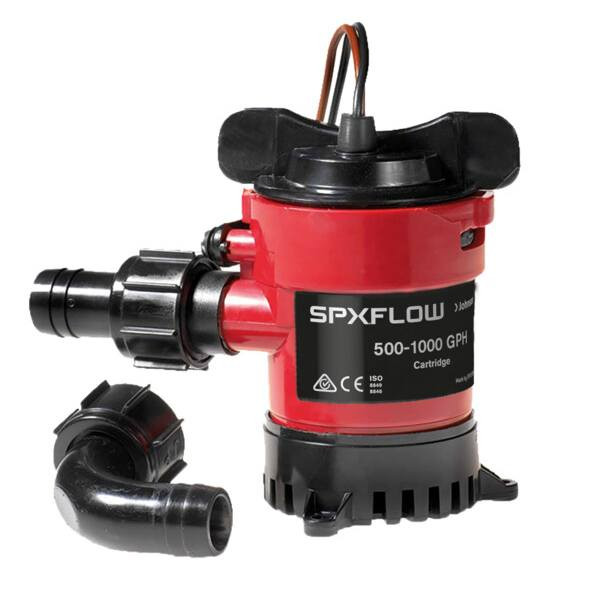

Johnson Pump Cartridge Bilge Pump

free shipping
SKU:
MAY-32903.1
Availability:
In Stock - Ships Today
List Price: $32.99
Starting At: $21.99
(You save $11.00

Earn Captains Club Points Learn More

FREQUENTLY BOUGHT TOGETHER

  • Choose Options

Description

Mayfair Replacement Cartridge Bilge Pump by Johnson Pump

Johnson Pump Cartridge Bilge Pumps are direct replacements to the popular Mayfair Cartridge Bilge Pumps and are designed to make cleaning and maintenance easy! Cartridge Bilge Pumps can be removed for cleaning or replacement without the use of a single tool. Lift a tab on the top, give the cartridge a twist, and pull it out; that's all there is to it! Includes all-in-one motor/impeller unit with no loose parts. Features a thermoplastic body, lip seal shaft seal and a stainless steel motor shaft. Additionally, these cartridge pumps have a water-cooled motor for long service intervals and are extremely energy efficient. These pumps can be combined with a float switch for automatic operation. Johnson Pump cartridge bilge pumps meet the international standard, ISO 8849 marine.

Features:

  • 12V cartridge bilge pump with high impact housing.
  • Easy installation and increased longevity.
  • Corrosion, chemical and fuel resistant.
  • Permanent magnet motor along with permanent lubrication.
  • T-Slot for easy float switch attachment
  • Includes both a straight and 90 degree smooth elbow Dura-Port

Specifications:

  • Outer diameter discharge port: 3/4"
  • Fuse Size: 5 Amp
  • Voltage: 12V DC
  • Wire Size: 16 GA
Part No. Capacity 3 ft head Capacity straight Amperage
32503 33 l/min - 535 GPH 40 l/min - 630 GPH 2.5 A
32507 44 l/min - 700 GPH 50 l/min - 800 GPH 3 A
32903 50 l/min - 800 GPH 63 l/min - 1000 GPH 3.2 A



pdficon.png Click to Download the Johnson Pump Cartridge Bilge Pump User Manual



California Residents: warning sign WARNING Cancer and Reproductive Harm - P65Warnings.ca.gov

PRODUCT REVIEWS

QUESTIONS & ANSWERS

Other Details

Google Product Type:
Bilge Pump
Size:
3/4"
Voltage:
12v
Product MPN:
32903, 32703, 32503
Product UPC:
729321329033, 729321327039, 729321325028
