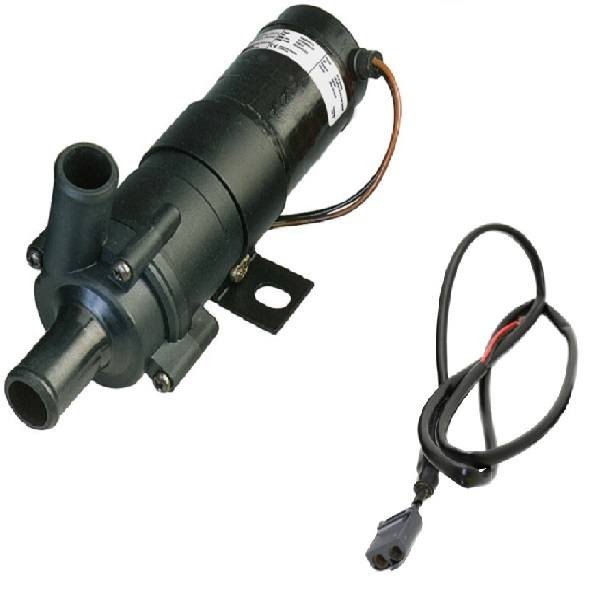

Johnson Pump CM30P7-1 Circulation Pump w/Cord

Johnson Pump CM30P7-1 Circulation Pump

The Johnson Pump CM30P7-1 is a heavy duty magnetically driven circulating pump. Compact but powerful, this is an ideal pump for circualtion duties such as water/antifreeze in heating systems or for circulating cooling fresh water. The CM series pumps by Johnson are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before switching on.

Features:

• Pump Body: PPA, Thermoplastic
• Shaft: Stainless Steel
• Impeller: PPA, Thermoplastic

Specifications:

• Voltage: 12
• Port size: 5/8" or 3/4" hose
• Minimum Liquid Temp: -40° F
• Maximum Liquid Temp: 212° F
• Dry running: 30 minutes max
• Input Power: 27W Max
• Mounting: Separate universal bracket for flat surfaces
• Capacity: 5.3 GPM
• Length: 6.97"
• System Pressure: 2.5 bar max (36 psi)
• Width: 2.68"
• Height: 3.35

Frequently Asked Questions

What is the Johnson Pump CM30P7-1 Circulation Pump used for?

The Johnson Pump CM30P7-1 is a heavy-duty magnetic-drive circulating pump designed for circulation duties such as water or antifreeze in heating systems and circulating cooling fresh water.

What is the flow capacity of the Johnson Pump CM30P7-1?

The Johnson Pump CM30P7-1 has a listed capacity of 5.3 GPM and a maximum system pressure of 2.5 bar (36 psi).

What size hose does the Johnson Pump CM30P7-1 use?

The Johnson Pump CM30P7-1 has ports designed for 5/8" or 3/4" hose connections.

What are the temperature limits for the Johnson Pump CM30P7-1?

The Johnson Pump CM30P7-1 has a minimum liquid temperature of -40° F and a maximum liquid temperature of 212° F.

Can the Johnson Pump CM30P7-1 run dry?

The Johnson Pump CM30P7-1 can run dry for a maximum of 30 minutes. Because it is a normal-priming centrifugal pump, it should be mounted so it remains flooded or be primed before switching it on.

What are the construction materials and dimensions of the Johnson Pump CM30P7-1?

The Johnson Pump CM30P7-1 has a PPA thermoplastic pump body and impeller with a stainless steel shaft. It measures 6.97 inches long, 2.68 inches wide, and 3.35 inches high, and has a maximum input power of 27W.
