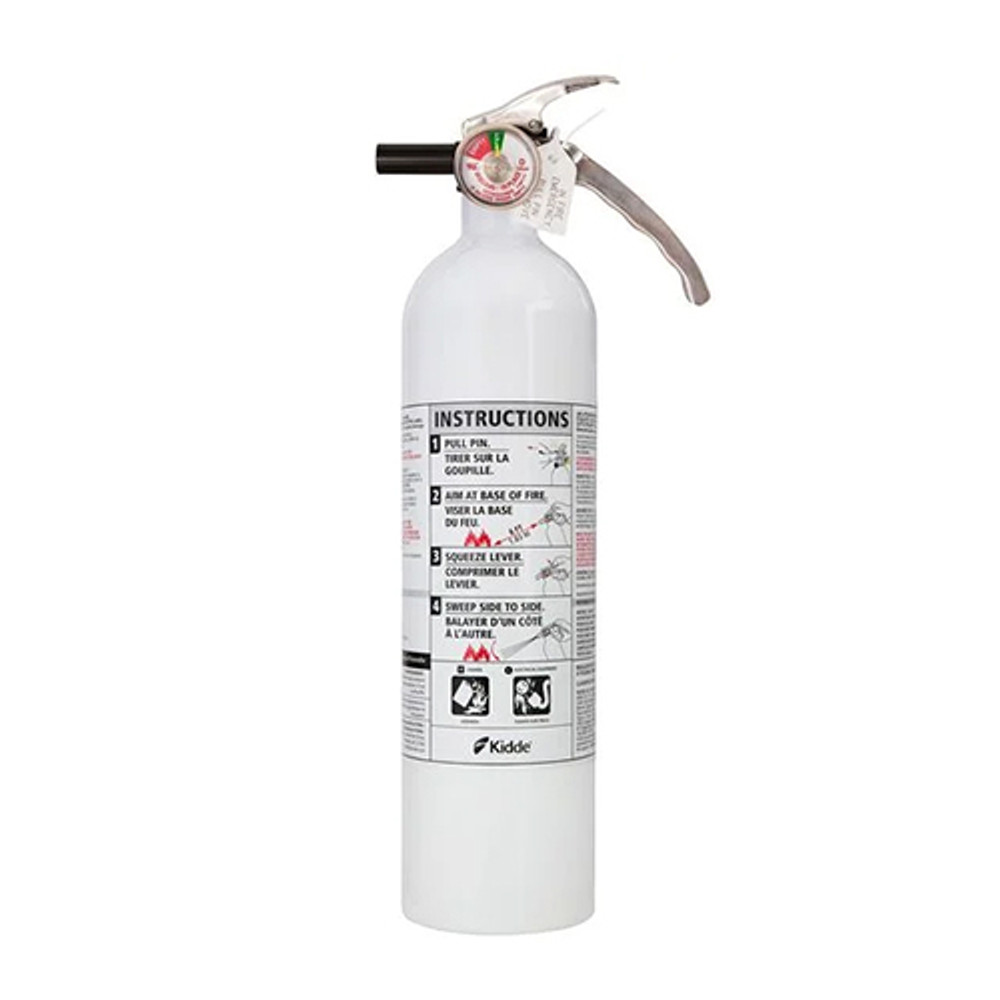

Kidde Mariner 110 A:B:C Marine Fire Extinguisher

Kidde Mariner 110 1-A:10-B:C Marine Fire Extinguisher

The Kidde Mariner 110 fire extinguisher is USCG 5-B rated for use on marine vessels. This fire extinguisher has a classification for 1-A Common combustible, 10-B:C flammable liquids and electrical equipment. Constructed from both stainless steel and aluminum to provide corrosion resistance and provide a long service life. These durable components allow Kidde to offer a 12 year service free life and warranty on the Mariner 110. The included polymer mounting bracket is easily mounted for convenient storage and placement in case of emergency.

Features:

• UL Rated 1-A:10-B:C
• USCG 5-B Rated & Approved
• Included Mounting Bracket
• Dry Chemical Extinguisher
• Stainless Steel & Aluminum Construction
• 12 Year Warranty

Specifications:

• Agent Charge: 2.4 lbs
• Discharge Time: 8 - 11 seconds
• Temperature Limits: -40° F - 120° F (-40° C - 49° C)
• Tested to: 300 psi

Mounting Options:

Plastic Strap Retainer w/Fold Down Straps (Included; Model 322057)

1. Fasten retainer to wall
2. Place fire extinguisher into holder
3. Buckle the retainer straps to lock them in place

Steel Bracket w/Metal Straps (Model 420118)

1. Twist the metals straps 90° so they are facing straight out either side
2. Fasten bracket to the wall
3. Place fire extinguisher into holder
4. Buckle the retainer straps to lock the extinguisher into place

Wall Hanger

1. Fasten hangar to wall
2. Place extinguisher into hanger

Motorboat Fire Extinguisher Minimum Requirements:

• Boats Under 26'
• One 5-B or one 20-B rated extinguisher
• Boats 26' - 40'
• Two 5-B or one 20-B rated extinguisher(s)
• Boats 40' - 65'
• Three 5-B or two 20-B rated extinguishers

Frequently Asked Questions

What is the Kidde Mariner 110 1-A:10-B:C Marine Fire Extinguisher used for?

The Kidde Mariner 110 1-A:10-B:C Marine Fire Extinguisher is a dry chemical extinguisher rated for Class A common combustibles, Class B flammable liquids, and Class C electrical equipment. It has a UL 1-A:10-B:C rating and is USCG 5-B rated and approved for marine vessels.

What are the specifications of the Kidde Mariner 110 Marine Fire Extinguisher?

The Kidde Mariner 110 has a 2.4 lb agent charge and an 8–11 second discharge time. Its temperature limits are -40° F to 120° F (-40° C to 49° C), and it is tested to 300 psi.

What is the Kidde Mariner 110 Marine Fire Extinguisher made from?

The Kidde Mariner 110 is constructed from stainless steel and aluminum. These materials are used to provide corrosion resistance and support a long service life. The extinguisher also includes a polymer mounting bracket for convenient storage and placement.

How do you mount the Kidde Mariner 110 fire extinguisher?

The included plastic strap retainer is fastened to a wall before placing the extinguisher into the holder and securing the fold-down straps. A steel bracket with metal straps and a wall hanger are also listed as mounting options, with installation steps provided for each option.

How many fire extinguishers are required for a motorboat?

For boats under 26 feet, the listed minimum is one 5-B or one 20-B rated extinguisher. Boats 26–40 feet require two 5-B or one 20-B rated extinguisher, while boats 40–65 feet require three 5-B or two 20-B rated extinguishers.

What is the service life and warranty of the Kidde Mariner 110?

The Kidde Mariner 110 is designed with a 12-year service-free life and includes a 12-year warranty, according to the supplied product description.
