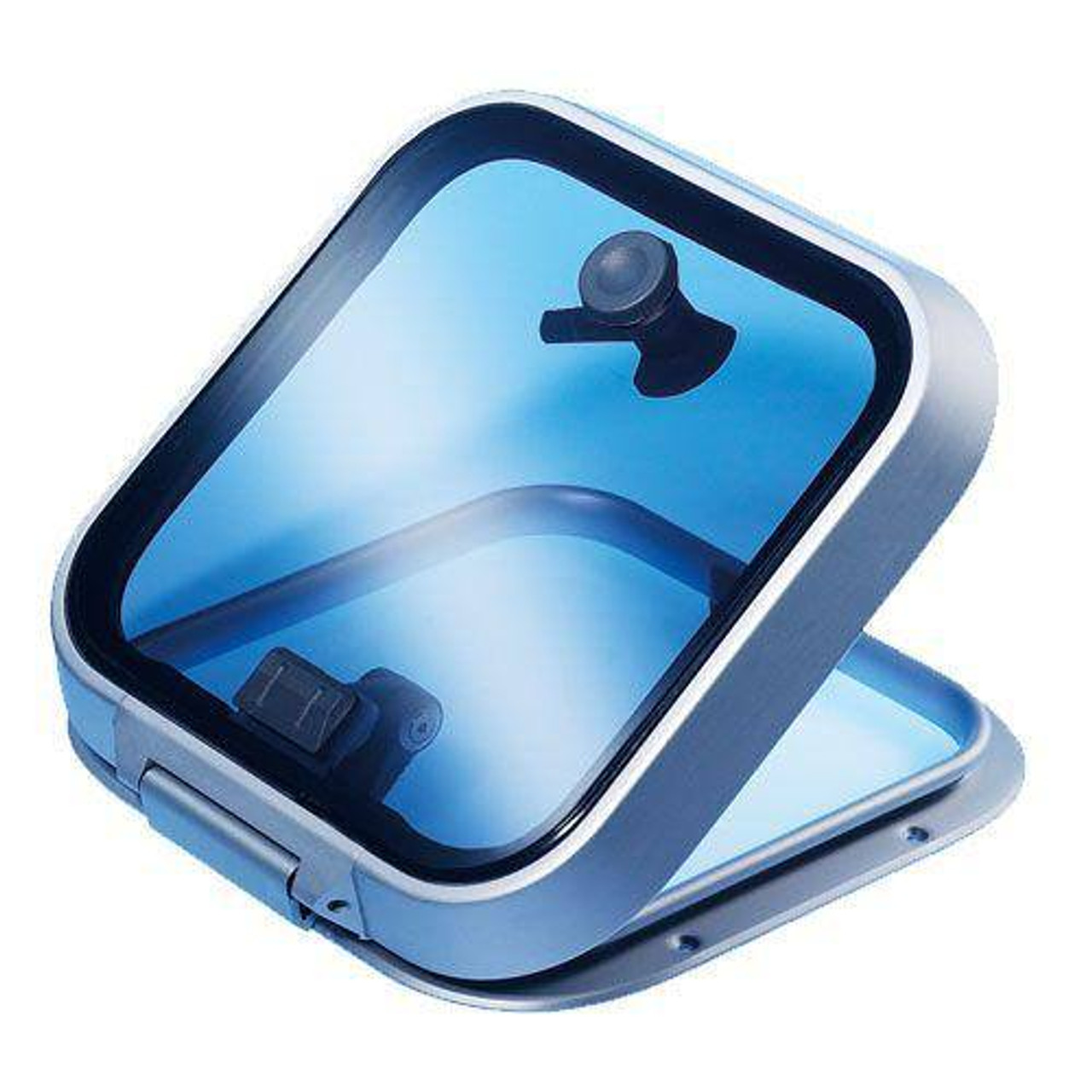

Lewmar Low Profile Deck Hatch

free shipping
SKU:
LEW-39910030.1
Availability:
In Stock - Ships Today
Order within and your order ships today!
List Price: $365.69
Starting At: $317.99
(You save $47.70

Earn Captains Club Points Learn More

FREQUENTLY BOUGHT TOGETHER

  • Choose Options

Description

Lewmar Low Profile Deck Hatch

This Lewmar Low Profile Deck Hatch features smaller ventilation hatches suitable for any deck location on sailboats and larger sizes that can be used as foredeck hatches on smaller to mid-size yachts. With a low frame section and 8mm acrylic windows, this hatch is available in multiple sizes making it a good choice for installation on a variety of boats. The lockable internal and external handles provide added security. Composed of corrosion-resistant clear anodized aluminum, this deck hatch features self-supporting friction levers that will hold the lid open in any position up to 95°.

Features:

  • Low Profile Hatches Open Up To 180° (Round Hatches Open To 170°)
  • Outside Handles Allow Hatch To Be Opened From On Deck If Not Locked
  • Full Range Of Spare Parts Available
  • Corrosion-Resistant Clear Anodized Aluminum Frame With Flange Bases, Inset Hinges and Snag-Resistant Rounded Edges
  • Hinges Flush With Upper Frame
  • Curved Upper Frame Section For Strength and Modern Styling
  • Self-Supporting - Friction Levers Hold Lid Open In Any Position Up To 95°
  • Unique Sealing System Allows Easy Replacement Of Acrylic Lens
  • Locking Handles With Exterior Lever, Vent Position
  • Improved Stronger Lower Frame Design With Higher Breakwater
  • CE Approved For Design Category A / Area 2A*
  • 3 Year Warranty

Mounting Instructions:

  • Fit to a flat surface with a maximum tolerance of +/- 1mm.
  • Fastening size at hinge section use (M6 / 1/4").
  • Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications:

Size Lower Frame Acrylic Colour Acrylic Window Thickness Hatch Weight Length Width Height Radii Cut-Out Length Cut-Out Width Cut-Out Radii
10 9/16" Smoke Grey 5/16" 4.9 lb 13" 13" 1" 2-7/8" 10-1/4" 10-1/4" 1-11/16"
30 9/16" Smoke Grey 5/16" 8.6 lb 15-5/8" 20-3/4" 1" 2-7/8" 12-7/8" 18" 1-11/16"
40 9/16" Smoke Grey 5/16" 10.1 lb 19-5/16" 19-5/16" 1" 2-7/8" 16-9/16" 16-9/16" 1-11/16"
44 9/16" Smoke Grey 5/16" 10.6 lb 20-3/16" 20-3/16" 1" 2-7/8" 17-3/8" 17-3/8" 1-11/16"
54 9/16" Smoke Grey 5/16" 10.8 lb 18-3/16" 22-11/16" 1" 2-7/8" 15-7/16" 19-15/16" 1-11/16"
60 9/16" Smoke Grey 5/16" 14.1 lb 22-11/16" 22-11/16" 1" 2-7/8" 19-15/16" 19-15/16" 1-11/16"

pdficon.pngClick here to download Lewmar Hatch Installation Instructions

California Residents: warning sign WARNING Cancer and Reproductive Harm - P65Warnings.ca.gov

PRODUCT REVIEWS

QUESTIONS & ANSWERS

Other Details

Google Product Type:
Hatches
Product MPN:
39910030, 39930030, 39940030, 39944030, 39954030, 39960030
Product UPC:
743683107047, 743683107108, 743683107139, 743683107160, 743683107207, 743683107221
