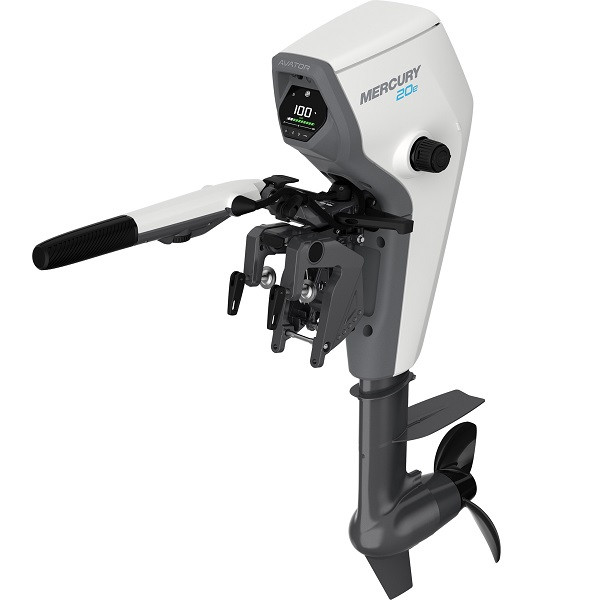

Mercury Avator 20e Tiller 5.5HP Electric Outboard Motor 15" Shaft 15ESRC

Mercury Avator 1003E011A 20e Tiller 5.5HP Electric Outboard Motor 15" Shaft 15ESRC

Power up your outdoor adventures with a Mercury Avator 20e electric outboard motor. Its modular battery system lets you configure your propulsion system for optimal range and runtime. You can set it up it as a portable outboard with one 2300Wh battery or have an Avator Power Center installed to connect up to four batteries. Range-tracking features on the intelligent digital display and Mercury Avator app let you monitor your outing throughout the day so you can explore with confidence. (Requires Avator battery, charger, display and harnessing - plus Power Center, if connecting multiple batteries. Available separately.)

The Mercury Avator 20e is an innovative electric outboard motor has you covered from the morning bite, to the evening cruise. The modular battery system makes it easy to customize your propulsion system to best suit your needs. This electric outboard delivers similar speed and acceleration performance to a 5.5hp internal combustion outboard. This model features a movable tiller handle that is comfortable to use and can be folded down when not in use.

This model allows you to hook up to a single battery or the power center, an integrated hub that distributes power throughout your Avator system. The power center allows you to connect up to 4 batteries for an extended range and runtime. You can also charge up to 4 connected batteries simultaneously from a single charging port.

Mercury is transforming the boating experience with the Avator producing no exhaust fumes and zero direct emissions. Constructed using corrosion-preventative materials and coatings this electric outboard can be used in both fresh and saltwater environments. The Avator is convenient to store at home or a larger vessel thanks to using no fuel and producing no fumes. The 35e comes with a pre-installed SmartCraft connect module to allow you to connect your outboard to the Mercury Marine App.

Avator Electric Motor Features:

• Ability to connect and simultaneously charge up to four (4) batteries when configured with an Avator Power Center
• For peak portability, you can power the system with one 2300Wh battery and no Power Center
• Capable of acceleration similar to 5hp Mercury FourStroke outboard (varies based on boat, load and conditions)
• Up to 16 hours of runtime at 25% throttle and around 1 hour at 100% throttle with a single 2300Wh battery (varies based on boat, load and conditions)
• Charge a 2300Wh battery in as little as 10 hours with the 230W charger - available 520W charger cuts time by more than half
• Pairs with a digital display that shows battery level, remaining runtime and more
• Pre-installed SmartCraft Connect module for accessing performance data, range estimates and other features through the Mercury Marine app
• Rugged, water-resistent lithium-ion batteries
• Industry-exclusive high-torque, high-efficiency transverse flux motor
• Includes prop. Requires Avator battery, charger, display and harnessing - plus Power Center, if connecting multiple batteries - available separately. Contact dealer for requirements

Product Specifications:

• Smartcraft Compatible: Yes
• Trim System: Manual
• Steering: Tiller
• Gearcase: Direct Drive
• Horse Power: 3
• Battery: 2300 Wh - Li ion NMC
• Battery IP Rating: IP67
• Battery Type: 21166
• Battery Weight: 48lbs
• Charger (Standard): 230w
• Input Power: 2700W
• Rated Prop Shaft Power: 2200W
• Rated Voltage: 48V
• Shaft Length: 15" (Short)
• Standard Propeller: 7P
• Total Weight (Excluding Battery): 47lbs

Mercury Avator 20e Construction Details

Modular Batteries

The 35e electric outboard motor requires an Avator power center with at least 2 batteries for operation.

Multi-Purpose Tiller Handle

Requiring no tools, the tiller handle can adjust up, down, left, or right for comfortable steering from any position.

Power Center

Integrated hub that distributes power from the battery bank throughout the system. Can simultaneously charge up to four connected batteries from a single charging port

Strong Transverse Flux Motor

Delivers immediate torque with reliable power. Turns a high thrust three blade prop for efficient batter life.

Ability to connect and simultaneously charge up to four (4) batteries when configured with an Avator Power Center
