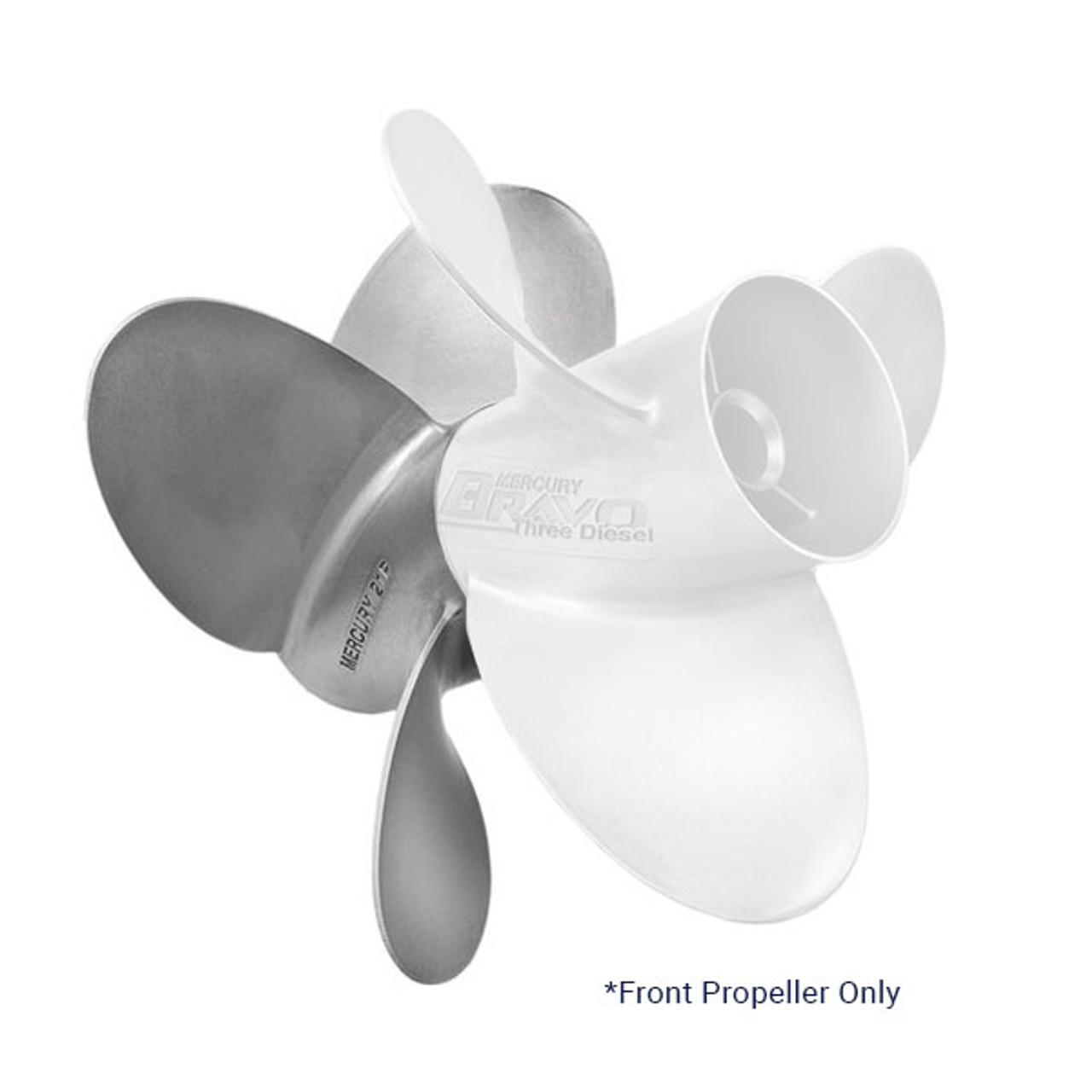

Mercury Bravo 3 Diesel 15.75x 25P LH Front Prop 48-8M0074869

free shipping
SKU:
48-8M0074869
Availability:
Special Order
Order within and your order ships today!
List Price: $1,279.46
Starting At: $1,066.22
(You save $213.24

Earn Captains Club Points Learn More

FREQUENTLY BOUGHT TOGETHER

Description

Mercury Bravo 3 Diesel 15.75 x 25P LH Front Propeller 48-8M0074869

The Mercury Bravo 3 Diesel propeller is the best-performing propeller for diesel engines matched to Bravo III drives. This propeller is designed for use on heavier boats with high-horsepower diesel engines. Features an enhanced blade cup for improved planing performance and fuel economy. The Bravo Three Diesel propellers combine a large-diameter, four-blade front propeller with a smaller diameter three-blade rear propeller to provide unmatched acceleration, tracking, and handling with diesel applications.

Product Features:

  • Construction
    • Proprietary blend of 15-5 stainless steel balances strength and corrosion resistance. Features durable matte finish.
  • Production
    • Created and completed by Mercury engineers and employees in Fond du Lac, Wisconsin, USA.
  • Performance
    • High quality stainless steel is molded into durable propellers that will give you a true competitive advantage

For use on standard Bravo Three, Bravo Three X, and Bravo Three XR drives.

Specifications:

  • Diameter: 15.75
  • Pitch: 25
  • Rotation: Left Hand (Counter)
  • Position: Front
  • Number of Blades: 4
  • Performance Vent System (PVS): No
  • Material: Stainless Steel
  • Hub: Flo Torq SSR

Bravo Three Propeller Installation

  1. Apply an ample amount of the lubricants to the inner and outer propeller shafts
  2. Slide the forward thrust hub onto the outer propeller shaft with the tapered hub end facing aft
  3. Align the splines of the propeller with the shaft splines and slide the propeller into place on the outer shaft
  4. Secure with the forward propeller nut and tighten to the specified torque
  5. Slide the aft thrust hub onto the inner propeller shaft with the tapered hub end facing aft
  6. Align the splines of the propeller with the shaft splines ans slide the propeller into place on the inner shaft
  7. Secure the aft propeller nut and tighten to the specified torque

pdficon.pngClick here for the Bravo Three Propeller Installation Manual

California Residents: warning sign WARNING Cancer and Reproductive Harm - P65Warnings.ca.gov

PRODUCT REVIEWS

QUESTIONS & ANSWERS

Other Details

Google Product Type:
Propellers
Blades:
4
Diameter:
15.75
Pitch:
25
Rotation:
Counter
Position:
Front
Material:
Stainless
Product MPN:
8M0074869
