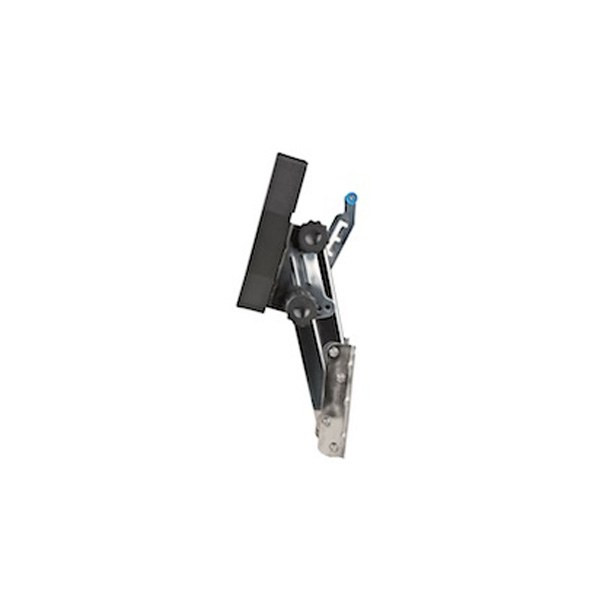

Panther 4 Stroke15HP Max Stainless Outboard Motor Bracket

Panther 4 Stroke15HP Max Stainless Outboard Motor Bracket

Max. 15 HP 4-Stroke & 20 HP 2-Stroke, 11" Lift, Stainless Steel. Adjustable Stainless Steel outboard motor bracket. Works with 4-Stroke motors up to 15hp or 2-Stroke motors up to 20hp, max weight 132lbs. Twist-knob Safety Locks provide increased torque rating while helping secure bracket in place. Built extra-tough and extra-wide for secondary, higher-torque, four-stroke engines. Motor’s weight is counterbalanced by heavy-duty stainless steel torsion springs for easy lifting. The 55-0408SS boasts a 2" thick, weatherproof and maintenance-free polypropylene mounting board along with aircraft-type stainless steel hardware. Four-position lock bar and 11" of travel allow for a better range of trim adjustment letting you fine-tune motor height for optimal performance. Meets ABYC Standards. (Do not use without Panther 55-0415 safety cable—included.) Rated for long or short shaft engines. Setback: 8 3/4" in the up position and 14" in the down position.

Features

• Supports 4-stroke motors up to 15 HP or 2-stroke motors up to 20 HP (max 132 lbs), compatible with long or short shaft engines.
• Heavy-duty stainless steel torsion springs assist with lifting; 11" of travel and a 4-position lock bar allow precise motor height tuning.

Frequently Asked Questions

What engines can the Panther 4 Stroke 15HP Max Stainless Outboard Motor Bracket support?

The Panther 4 Stroke 15HP Max Stainless Outboard Motor Bracket supports 4-stroke outboard motors up to 15 HP or 2-stroke motors up to 20 HP, with a maximum motor weight of 132 lbs. It is rated for both long- and short-shaft engines.

How much adjustment does the Panther 55-0408SS outboard motor bracket provide?

The Panther 55-0408SS provides 11 inches of travel and has a four-position lock bar. This adjustment range allows the motor height to be fine-tuned for the desired trim and performance.

What is the setback of the Panther 4 Stroke 15HP Max Stainless Outboard Motor Bracket?

The bracket has a setback of 8-3/4 inches in the up position and 14 inches in the down position. It also provides 11 inches of travel for adjusting the motor's height.

What is the Panther 4 Stroke 15HP Max Stainless Outboard Motor Bracket made from?

The bracket uses heavy-duty stainless steel construction, stainless steel torsion springs, and aircraft-type stainless steel hardware. It also features a 2-inch-thick weatherproof, maintenance-free polypropylene mounting board.

How does the Panther outboard motor bracket assist with lifting the motor?

Heavy-duty stainless steel torsion springs counterbalance the motor's weight to assist with lifting. Twist-knob safety locks provide increased torque rating while helping secure the bracket in place.

Does the Panther 55-0408SS require a safety cable?

Yes. The product description states that the bracket should not be used without the Panther 55-0415 safety cable. The bracket also meets ABYC Standards and includes a four-position lock bar for motor height adjustment.
