Patriot Docks Patio Dock w/ Gray Aluminum Decking

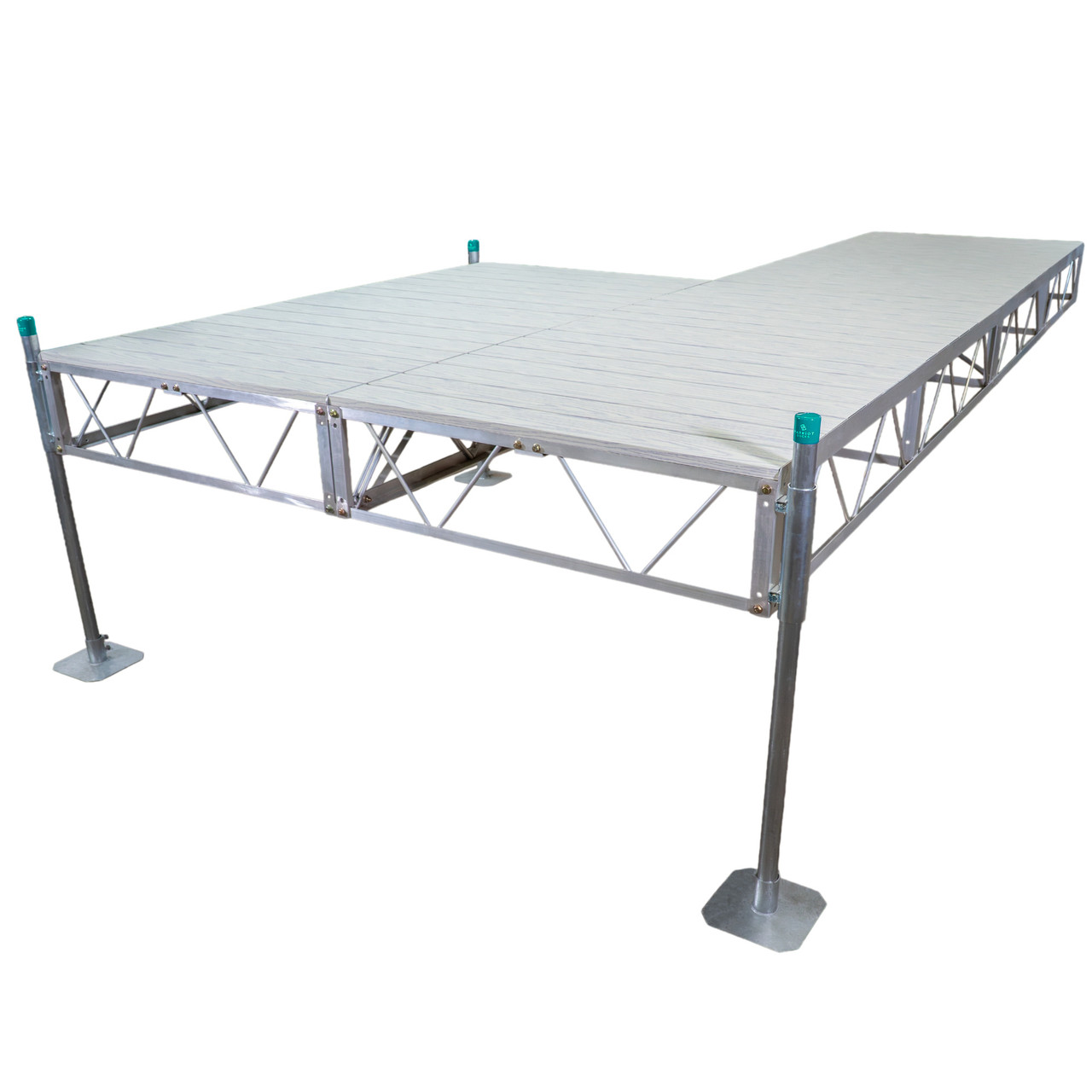

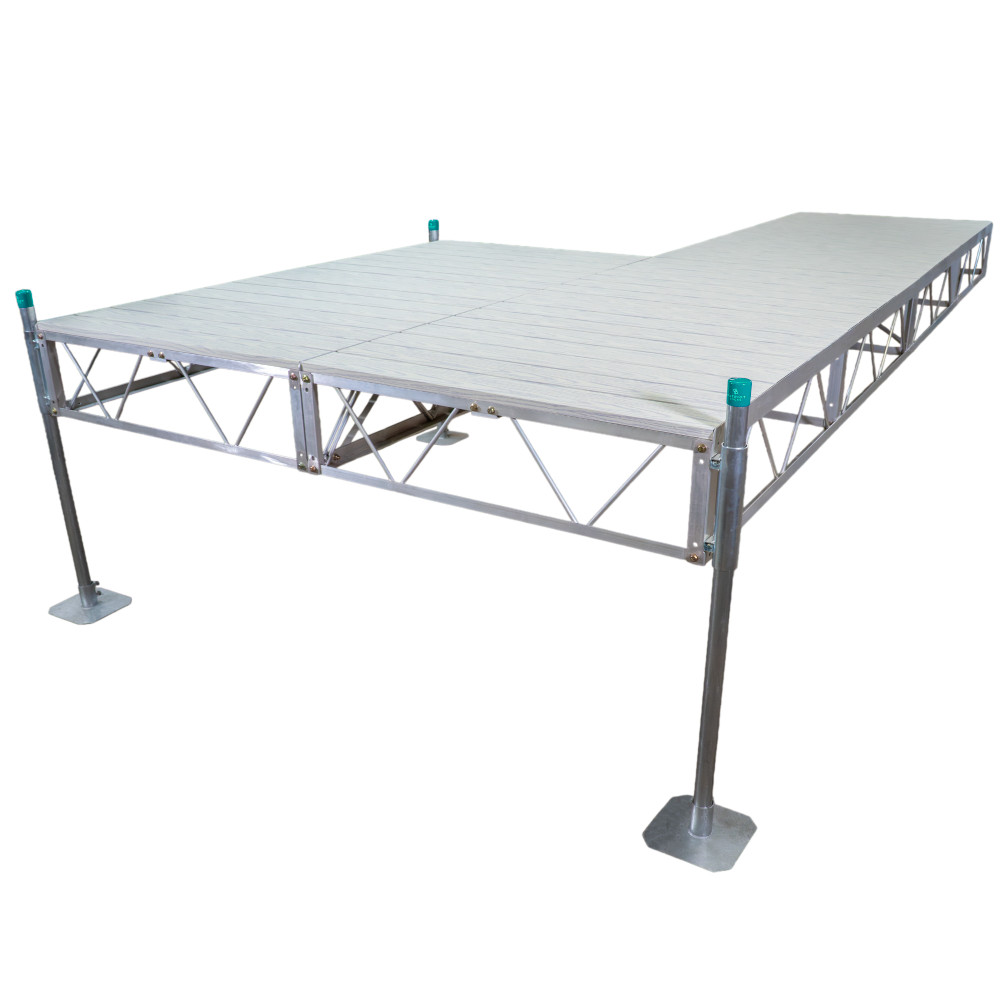

Patriot Docks Patio Dock with Gray Aluminum Decking

The Patriot Docks Patio Stationary Pipe Dock with Gray Aluminum Decking is a durable, modular dock system designed for long-term freshwater use. Available in 16 ft., 24 ft., 32 ft., and 40 ft. lengths, its patio-style layout provides extra space for relaxing, swimming, fishing, boat access, and waterfront entertaining. Built with marine-grade 6061-T6 aluminum 12 in. truss frames, the dock delivers lightweight strength, corrosion resistance, and dependable performance. The frame features welded and bolted connections with 7/16 in. aluminum chord rods, while 1-1/2 in. Schedule 40 electro-galvanized steel pipe and dual-bolt pipe brackets provide added structural stability. Gray aluminum decking offers a durable, low-maintenance surface that is easy to install, and the modular design allows for future expansion using hinge kits or bolts. Adjustable pipe legs with steel foot plates provide stable support on varying lake bottoms, and the drop-in decking system simplifies assembly and maintenance.

Features

• Available in 16 ft., 24 ft., 32 ft., and 40 ft. lengths
• Patio-style design provides increased deck space
• Gray aluminum decking offers durable, low-maintenance performance
• Marine-grade 6061-T6 aluminum 12 in. truss frame for lightweight strength and corrosion resistance
• Welded and bolted frame construction with 7/16 in. aluminum chord rods
• 1-1/2 in. Schedule 40 electro-galvanized steel pipe for dependable support
• Pipe brackets secured with dual stainless steel bolts
• Adjustable pipe legs with steel foot plates for stability on varying lake bottoms
• Drop-in decking panels simplify assembly and maintenance
• Modular dock sections can be expanded using hinge kits or bolts
• Designed for residential lakefront and recreational waterfront applications
• Limited Lifetime Warranty on the aluminum frame and aluminum decking

16' Patio Dock Kit Includes:

• (3) 4 x 8 Frames
• (6) 4 x 4 Deck Panels
• (2) End Rail
• (3) Post Brackets
• (3) 4' Posts
• (3) Foot Plates for Posts
• (3) Vinyl Caps for posts
• Nuts and Bolts

24' Patio Dock Kit Includes:

• (4) 4 x 8 Frames
• (8) 4 x 4 Deck Panels
• (2) End Rail
• (4) Post Brackets
• (2) 4' Posts
• (2) 6' Posts
• (4) Foot Plates for Posts
• (4) Vinyl Caps for posts
• Nuts and Bolts

32' Patio Dock Kit Includes:

• (5) 4 x 8 Frames
• (10) 4 x 4 Deck Panels
• (2) End Rail
• (5) Post Brackets
• (2) 4' Posts
• (3) 6' Posts
• (5) Foot Plates for Posts
• (5) Vinyl Caps for posts
• Nuts and Bolts

40' Patio Dock Kit Includes:

• (6) 4 x 8 Frames
• (12) 4 x 4 Deck Panels
• (2) End Rail
• (6) Post Brackets
• (2) 4' Posts
• (2) 6' Posts
• (2) 8' Posts
• (6) Foot Plates for Posts
• (6) Vinyl Caps for posts
• Nuts and Bolts

Click to Download Patriot Docks Assembly Instructions

Click here to see Patriot Dock shipping and delivery agreement & policy
