Patriot Docks Patio Roll-In Dock w/ Cedar Decking

Patriot Docks Patio Roll-In Boat Dock w/ Cedar Decking

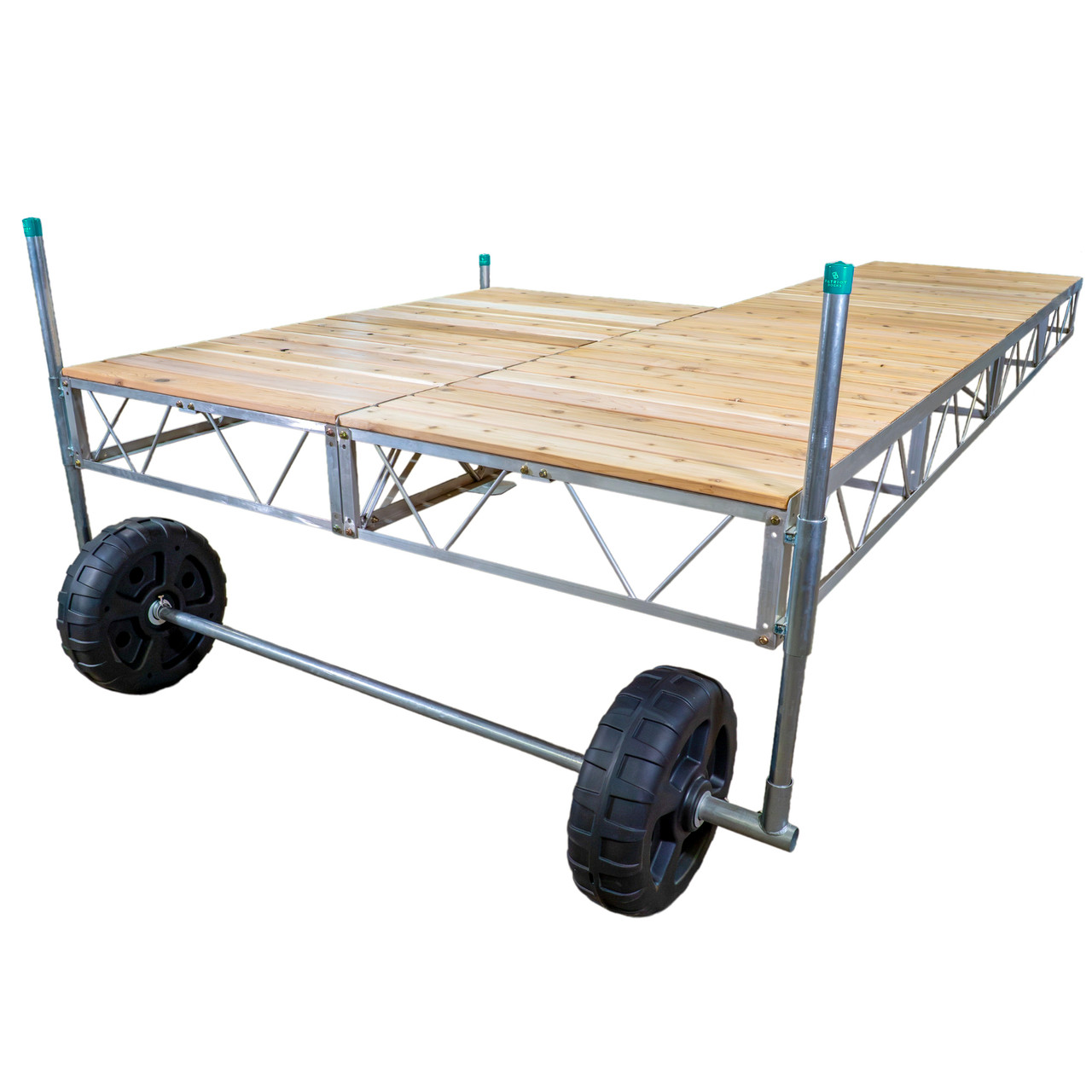

The Patriot Docks Patio Roll-In Pipe Dock is a durable, modular dock system designed for seasonal installation and long-term freshwater use. Available in 16 ft., 24 ft., 32 ft., and 40 ft. lengths, its spacious patio-style layout provides extra room for relaxing, swimming, fishing, boat access, and waterfront entertaining. Constructed with marine-grade 6061-T6 aluminum truss frames, the dock offers lightweight strength and corrosion resistance, while the roll-in design with integrated wheels makes seasonal installation and removal easier. Adjustable pipe legs with steel foot plates provide stable support on varying lake bottoms, and the modular design allows for easy maintenance and future expansion. Built with Patriot Docks' durable construction standards, the dock also features welded and bolted frame connections, extra-long pipe brackets with dual stainless steel set bolts, and 1-1/2 in. Schedule 40 electro-galvanized steel pipe for dependable performance.

Features

• Available in 16 ft., 24 ft., 32 ft., and 40 ft. lengths
• Patio-style layout provides increased usable deck space
• Marine-grade 6061-T6 aluminum truss frame for lightweight strength and corrosion resistance
• Roll-in design with integrated wheel assemblies for easier seasonal installation and removal
• Adjustable pipe legs with steel foot plates for stable support on uneven lake bottoms
• 1-1/2 in. Schedule 40 electro-galvanized steel pipe for durable support
• Welded and bolted frame construction with 7/16 in. aluminum chord rods
• Extra-long pipe brackets secured with dual stainless steel set bolts
• Cedar decking offers a traditional natural wood appearance
• Modular dock sections simplify maintenance and allow future expansion
• Concealed frame side lip provides a clean, finished appearance
• Ideal for residential lakefront and recreational waterfront applications

Note: The maximum span between supports is 16 ft. Standard support lengths are 4 ft. for docks under 16 ft., 6 ft. for docks from 16 ft. to 32 ft., and 8 ft. for docks over 32 ft.

16' Patio Roll-In Dock Kit Includes:

• (3) 4 x 8 Frames
• (6) 4 x 4 Deck Panels
• (2) End Rail
• (2) Post Brackets
• (2) 4' Posts
• (1) Foot Plates for Posts
• (2) Vinyl Caps for posts
• Nuts and Bolts
• (2) 24" Plastic Dock Wheels
• (1) Axle Converters (Pair)
• (1) HD Stop Clamps (Pair)
• (1) 8'6" Axle Pipe

24' Patio Roll-In Dock Kit Includes:

• (4) 4 x 8 Frames
• (8) 4 x 4 Deck Panels
• (1) End Rail
• (4) Post Brackets
• (4) 4' Posts
• (3) Foot Plates for Posts
• (3) Vinyl Caps for posts
• Nuts and Bolts
• (2) 24" Plastic Dock Wheels
• (1) Axle Converters (Pair)
• (1) HD Stop Clamps (Pair)
• (1) 8'6" Axle Pipe

32' Patio Roll-In Dock Kit Includes:

• (5) 4 x 8 Frames
• (10) 4 x 4 Deck Panels
• (2) End Rail
• (5) Post Brackets
• (5) 6' Posts
• (2) Foot Plates for Posts
• (4) Vinyl Caps for posts
• Nuts and Bolts
• (2) 24" Plastic Dock Wheels
• (1) Axle Converters (Pair)
• (1) HD Stop Clamps (Pair)
• (1) 8'6" Axle Pipe

40' Patio Roll-In Dock Kit Includes:

• (6) 4 x 8 Frames
• (12) 4 x 4 Deck Panels
• (2) End Rail
• (6) Post Brackets
• (2) 4' Posts
• (2) 6' Posts
• (2) 8' Posts
• (6) Foot Plates for Posts
• (6) Vinyl Caps for posts
• Nuts and Bolts
• (2) 24" Plastic Dock Wheels
• (1) Axle Converters (Pair)
• (1) HD Stop Clamps (Pair)
• (1) 8'6" Axle Pipe

Click to Download Patriot Docks Assembly Instructions

Click here to see Patriot Dock shipping and delivery agreement & policy
