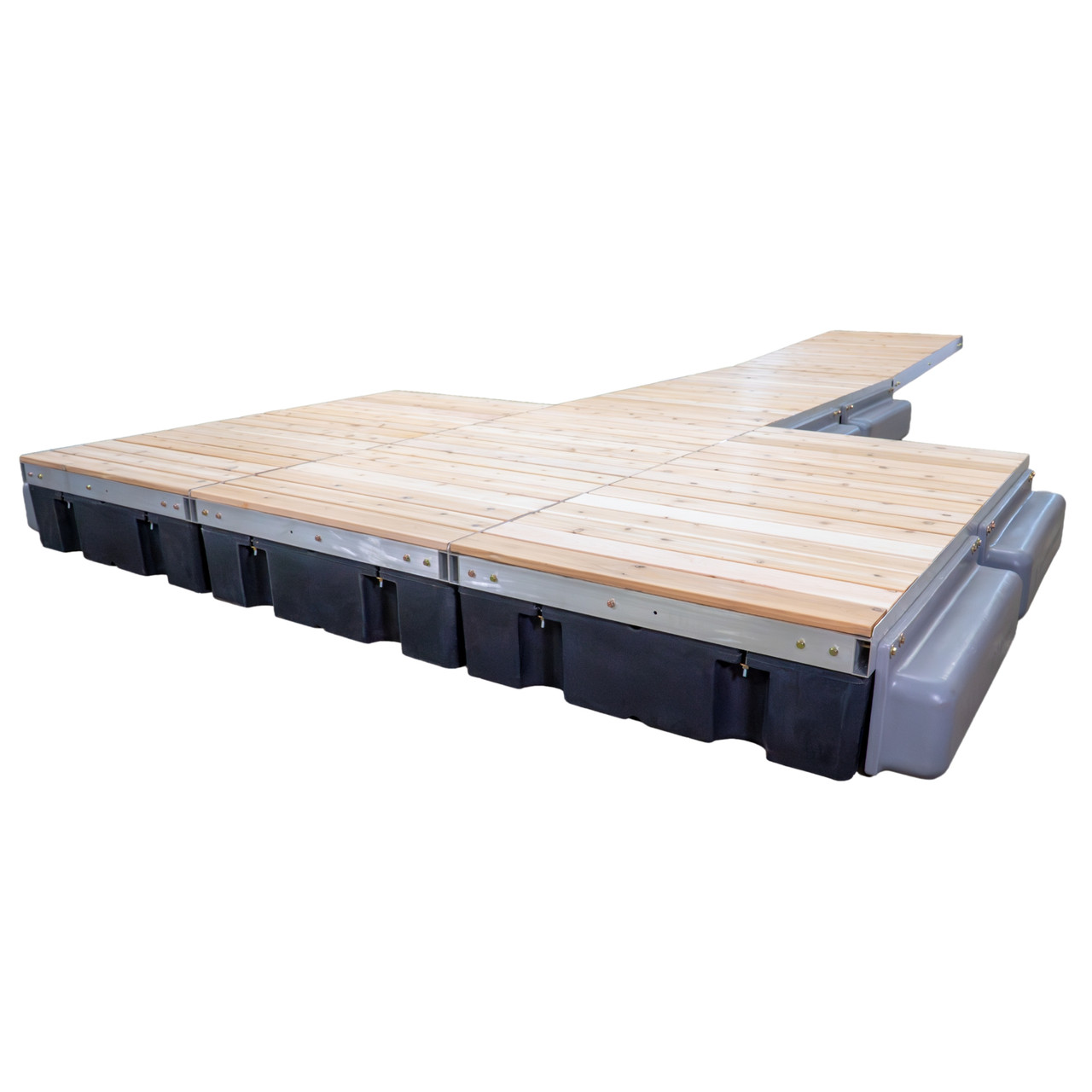

Patriot Docks Premium "T" Floating Dock w/ Cedar Decking

Patriot Docks Premium Low-Profile "T" Floating Dock with Cedar Decking

Upgrade your dock system with Patriot Docks Premium "T" Floating Dock Package. This modular dock system can be modified and combined with other parts and systems to create a custom solution for any waterfront.

Features:

• Corrosion-resistant foam helps maintain stability on the water
• Stability floats add critical load support and usable surface area
• To eliminate stress the unique hinge system allows the dock to move with changing water conditions
• The Low-Pro tubular aluminum frame allows the modular floating dock to sit closer to the water than any other dock in the market
• Excellent in deep or fluctuating water levels and extremely soft lake bottoms
• Affordable and attractive cedar decking

Construction Details:

Constructed of 6000 series marine grade aluminum, the Premium Floating Dock is designed to sit close to the water surface, allowing for easy access in and out of the water. Measuring 96” x 48” x 4-1/2”, and only weighing 50 lbs., the Premium Floating Dock has a 4’ wide usable walking surface and is easy to manage for seasonal removal or maintenance. Features attractive cedar decking.

Why Choose Cedar Decking? Patriot Docks Cedar decking is an affordable, beautiful, and incredibly durable decking option. The kiln-dried western red cedar is weather and insect resistant and will offer you many years of service.

The Premium Floating Dock is supported by (2) 48” x 24” x 12” foam filled rectangular floats EVERY 8ft of dock frame, with a total buoyancy rating of 400 lbs. per float. With a UV protected, impact resistant outer shell, these floats will battle the most challenging water conditions. Patriot Dock's floats deliver unmatched performance buoyancy and are U.S. Coast Guard Approved.

A Patriot Docks™ Floating Hinge Kit is used every 16ft span to ensure natural articulation of the dock and to minimize stress points along the dock structure. The kit allows for 25°of articulation along the 4’ aluminum hinge tube.

Stability is crucial to the performance of any floating dock system. The Patriot Docks™ Premium Floating Docks includes (4) Side Stability Floats EVERY 8ft section of dock frame. The impact resistant HDPE outer shell with EPS foam fill will stand the test of time and abuse in any marine environment. The Side Stability Float measures 43” x 13” x 7” and weighs only 14 lbs. With 150 lbs. of tank tested buoyancy rating, the Side Stability Float will not only increase your docks usable surface area but add critical load support for your floating dock structure.

24' Floating Dock Kit Includes:

• (5) 4' x 8' Low profile floating dock frame + hardware
• (8) 48" x 24" x 12" Foam filled rectangular floats + plug
• (8) J-bolt float mounting hardware set
• (8) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to 2" O.D. pipe)
• (10) 4' x 4' Cedar deck panels
• Assembly instructions

32' Floating Dock Kit Includes:

• (6) 4' x 8' Low profile floating dock frame + hardware
• (10) 48" x 24" x 12" Foam filled rectangular floats + plug
• (10) J-bolt float mounting hardware set
• (12) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to 2" O.D. pipe)
• (12) 4' x 4' Cedar deck panels
• Assembly instructions

40' Floating Dock Kit Includes:

• (7) 4' x 8' Low profile floating dock frame + hardware
• (12) 48" x 24" x 12" Foam filled rectangular floats + plug
• (12) J-bolt float mounting hardware set
• (16) 43" x 13" x 7" Side stability floats + hardware
• (3) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to 2" O.D. pipe)
• (14) 4' x 4' Cedar deck panels
• Assembly instructions

Vertical piling pipe is NOT included. Customer is responsible for determining acceptable anchoring method.
