Patriot Docks Straight Dock w/ Poly Decking

Patriot Docks Straight Dock w/ Poly Decking

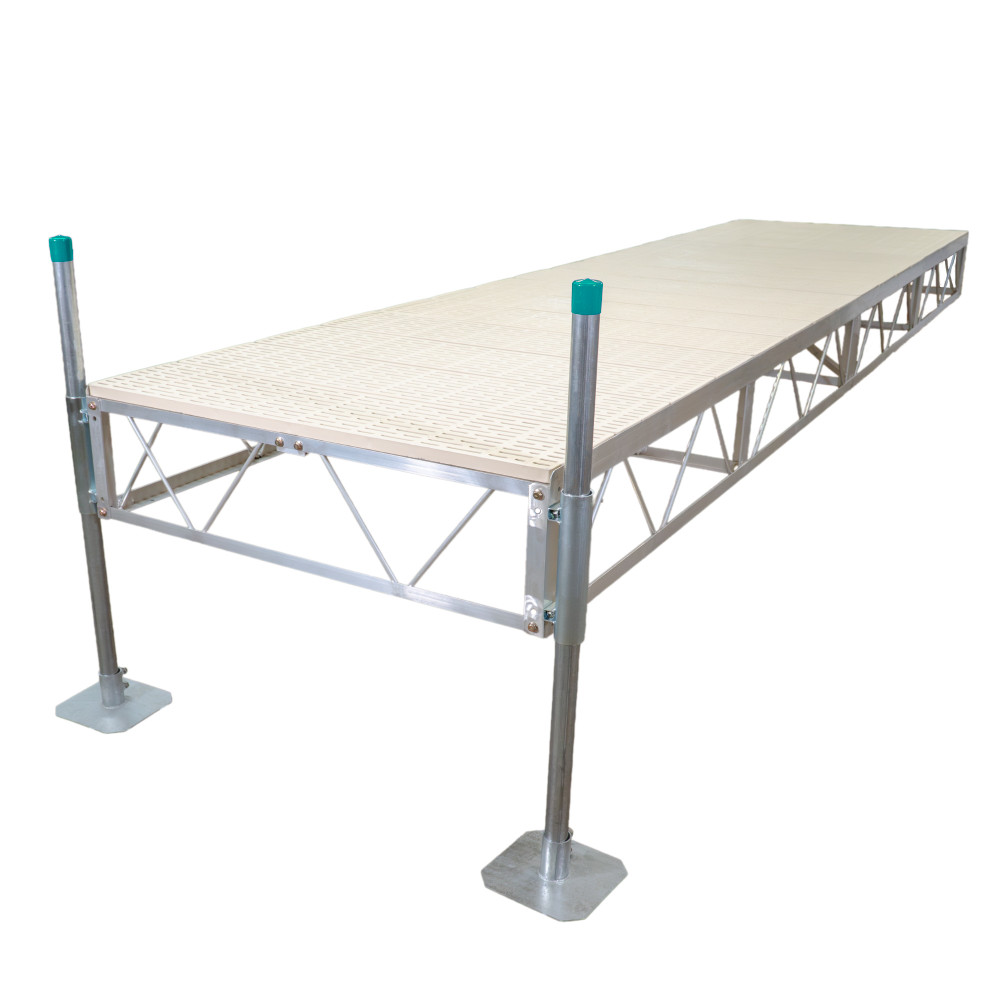

The Patriot Docks Straight Stationary Pipe Dock delivers a strong, stable, and long-lasting waterfront platform designed for permanent freshwater installations. Available in 16 ft., 24 ft., 32 ft., and 40 ft. lengths, this straight dock layout provides clean shoreline access and is ideal for boating, swimming, fishing, and relaxing by the water.

Built with marine-grade 6061-T6 aluminum truss frames, the dock combines lightweight strength with excellent corrosion resistance for years of dependable use. The 12 in. deep aluminum truss design features welded and bolted connections, 7/16 in. aluminum chord rods, and 1-1/2 in. Schedule 40 electro-galvanized steel pipe supports to create a rigid and reliable structure. Extra-long pipe brackets with dual stainless steel set bolts provide added reinforcement, while adjustable pipe legs with steel foot plates allow leveling on different lake bottoms and changing water conditions.

The polypropylene decking is reinforced with aluminum for increased rigidity and durability, helping resist moisture, UV exposure, cracking, and splintering. The modular drop-in decking panel system makes installation and maintenance easier, while the expandable section design allows flexible dock configurations. A built-in side lip conceals the decking edge for a clean appearance and added protection.

Features

• Available in 16 ft., 24 ft., 32 ft., and 40 ft. straight stationary dock configurations
• Straight dock layout provides streamlined shoreline access
• Designed for boating, swimming, fishing, and general dockside activities
• Marine-grade 6061-T6 aluminum truss frames provide lightweight strength and corrosion resistance
• High truss design creates a rigid and stable dock structure
• 12 in. deep aluminum truss frame with welded and bolted connections
• 7/16 in. aluminum chord rods for enhanced structural support
• 1-1/2 in. Schedule 40 electro-galvanized steel pipe supports
• Extra-long pipe brackets secured with dual stainless steel set bolts
• Adjustable pipe legs allow leveling on varying lake bottoms and changing conditions
• Steel foot plates improve dock stability and weight distribution
• Polypropylene decking resists moisture, UV exposure, cracking, and splintering
• Aluminum-reinforced decking panels provide added strength and reduced sag
• Lightweight removable decking panels nest into the dock frame
• Modular dock sections allow future expansion and layout flexibility
• Drop-in decking panels simplify assembly and maintenance
• Side lip conceals decking edges for a clean finished look
• Designed for freshwater lakes, shoreline installations, and permanent use
• Limited Lifetime Warranty on most aluminum components

Support Guidelines: Maximum span between supports is 16 ft. Standard support lengths: under 16 ft. = 4 ft. supports, 16 ft.–32 ft. = 6 ft. supports, over 32 ft. = 8 ft. supports.

16' Straight Dock Kit Includes:

• (2) 4 x 8 Frames
• (4) 4 x 4 Deck Panels
• (1) End Rail
• (2) Post Brackets
• (2) 4' Posts
• (2) Foot Plates for Posts
• (2) Vinyl Caps for posts
• Nuts and Bolts

24' Straight Dock Kit Includes:

• (3) 4 x 8 Frames
• (6) 4 x 4 Deck Panels
• (1) End Rail
• (4) Post Brackets
• (2) 4' Posts
• (2) 6' Posts
• (4) Foot Plates for Posts
• (4) Vinyl Caps for posts
• Nuts and Bolts

32' Straight Dock Kit Includes:

• (4) 4 x 8 Frames
• (8) 4 x 4 Deck Panels
• (1) End Rail
• (4) Post Brackets
• (2) 4' Posts
• (2) 6' Posts
• (4) Foot Plates for Posts
• (4) Vinyl Caps for posts
• Nuts and Bolts

40' Straight Dock Kit Includes:

• (5) 4 x 8 Frames
• (10) 4 x 4 Deck Panels
• (1) End Rail
• (6) Post Brackets
• (2) 4' Posts
• (2) 6' Posts
• (2) 8' Posts
• (6) Foot Plates for Posts
• (6) Vinyl Caps for posts
• Nuts and Bolts

Click to Download Patriot Docks Assembly Instructions
