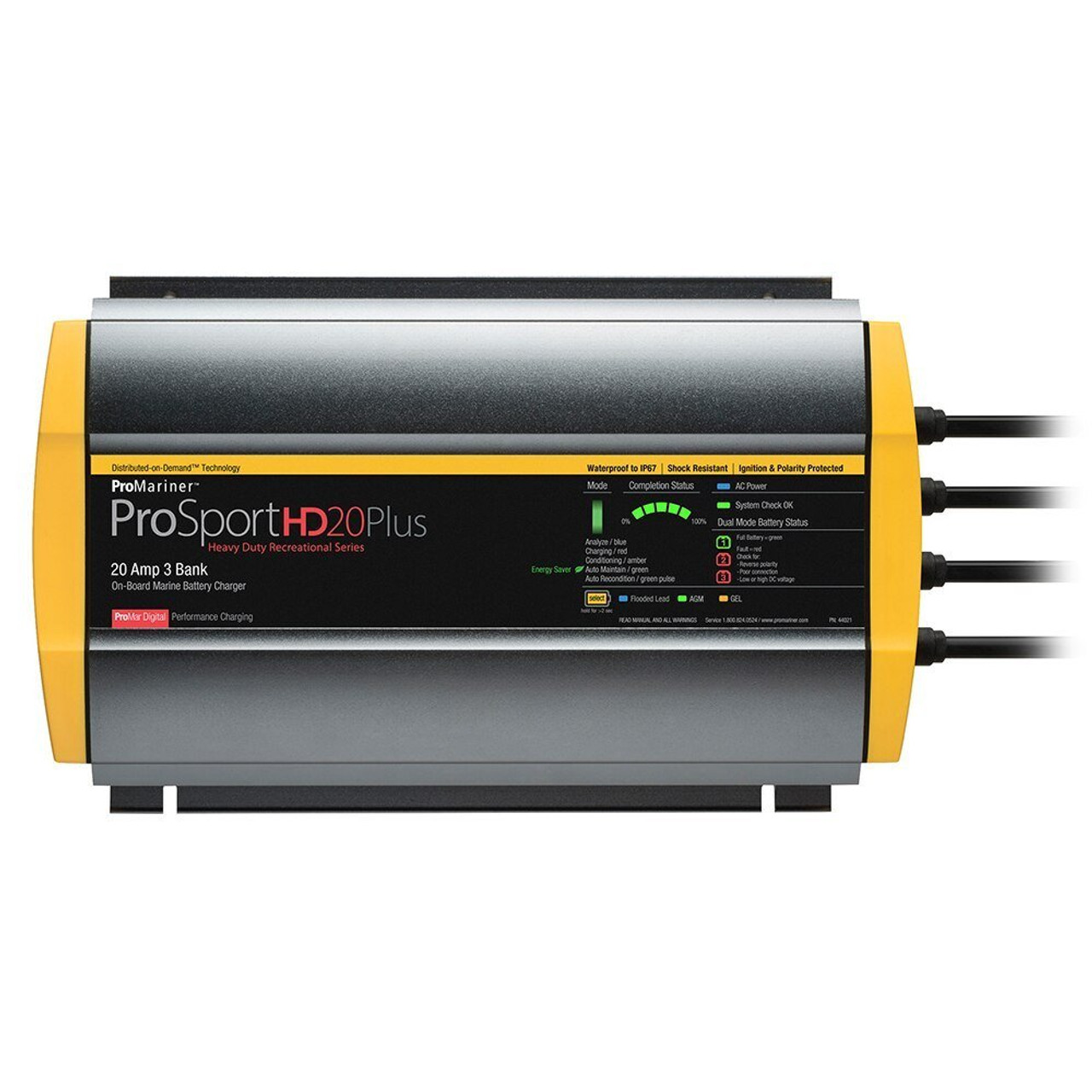

ProMariner ProSportHD Battery Charger 20 Amp - 3 Bank

ProMariner ProSportHD Gen 4 Battery Charger 20 Amp - 3 Bank

ProSportHD Generation 4 features a tri-surface heat-sink design for a long service life and reliable performance. In addition, its heavy-duty lightweight design delivers significantly faster charging via optimal cooling, to consistently deliver true-rated amp output during charge mode. This ProSport battery charger is designed for use in harsh environments with our industrial grade jacketed DC and AC power cables which include molded strain reliefs and wire-splitters.

ProSportHD's enhanced microprocessor/software provides digital features including:

• Fuel gauge-style Charge Completion Monitor
• Charge Mode hasIndividual Fault indicators with three digitally selectable performance charge profiles for:
• Flooded (lead acid)
• AGM and GEL batteries.
• HP AGM profile on ProSportHD 20 Dual only.

ProMariner battery chargers feature fully automatic 5-stage charging that not only enhances battery performance but also extends battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status.

This ProSport battery charger is lithium battery compatible.

Features:

• ProMariner battery chargers have exclusive ProMar Digital Technology Microprocessor and software controlled charging technology for fast, precise charging.
• Distributed-On-Demand™ Technology: 100% of all available charging amps are utilized by distributing unused charging amps to any one or combination of all batteries as required.
• Heavy Duty Tri-Surface Extruded Heat-Sink Design: Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode
• Expanded LED Display with Completion Status Gauge: LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Multi-stage Charge Mode, System Check OK, individual Battery Status and Battery Type indication
• ProSport Battery Charger’s New Lightweight Design: up to 40% lighter than an epoxy-filled charger.
• Auto-Maintain Energy Saver Mode Monitor: To maintain batteries automatically but only when needed to maintain full state of charge. This significantly reduces AC power consumption.
• Fully Automatic 5-Stage Digital Performance Charging: 5 Stages: Analyze, charge, condition, auto-maintain, and recondition the batteries once a month during storage periods. Fully-charges and extends battery life.
• Built-in Quality and Safety: Dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B.
• ProMariner battery chargers are easy to install and to operate and are pre-wired with 6’ AC and DC cables.
• Battery Type: Group 24–31 Flooded, AGM, HP AGM and GEL batteries
• 3 Year Warranty.

ProSport Battery Charger Specifications:

• Charging Banks: 3 Bank
• Charger Output - Amps: 20 Amp

Frequently Asked Questions

What is the ProMariner ProSportHD Gen 4 Battery Charger 20 Amp - 3 Bank used for?

The ProMariner ProSportHD Gen 4 Battery Charger is a 20-amp, 3-bank marine battery charger with microprocessor-controlled charging technology. Its fully automatic 5-stage charging process analyzes, charges, conditions, auto-maintains, and reconditions batteries during storage periods.

Is the ProMariner ProSportHD Gen 4 20 Amp 3 Bank compatible with lithium batteries?

Yes. The ProMariner ProSportHD Gen 4 20 Amp 3 Bank battery charger is compatible with lithium batteries. It also provides digitally selectable performance charging profiles for Flooded lead-acid, AGM, and GEL batteries.

What battery types are supported by the ProMariner ProSportHD Gen 4 20 Amp 3 Bank charger?

The ProSportHD charger supports Group 24–31 Flooded, AGM, HP AGM, and GEL batteries. The product description specifies three digitally selectable performance charging profiles for Flooded lead-acid, AGM, and GEL batteries. The HP AGM profile is specified for the ProSportHD 20 Dual only.

How does the ProMariner ProSportHD Gen 4 20 Amp 3 Bank charger distribute charging power?

Distributed-On-Demand Technology uses 100% of the available charging amps by distributing unused charging capacity to any one battery or combination of batteries as required. This allows the charger to direct available charging capacity where it is needed.

What charging and battery maintenance features does the ProMariner ProSportHD Gen 4 provide?

The ProSportHD Gen 4 provides fully automatic 5-stage digital performance charging, including analysis, charging, conditioning, auto-maintenance, and battery reconditioning. Its Auto-Maintain Energy Saver Mode monitors batteries and maintains their full state of charge only when needed to reduce AC power consumption.

What safety and installation features does the ProMariner ProSportHD Gen 4 20 Amp charger have?

The charger includes dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage, and ignition protection. It is pre-wired with 6-foot AC and DC cables and includes molded strain reliefs and wire splitters. It is certified to Marine UL 1236, CEC and DOE listed, and FCC Class B.
