  • Raymarine ECI-100 Universal Engine & Control Interface

Raymarine ECI-100 Universal Engine & Control Interface

SKU:
XRAY-E70227
Availability:
Order within and your order ships today! Details
Current Stock:
Out of stock

Out of Stock

$299.99
Our Price: $289.99
(You save $10.00)
Frequently Bought Together

    Product Description

    ECI-100 Universal Engine & Control Interface

    The ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system.

    Benefits:

    • A simple, single point of connection for engine data and drive-by-wire autopilot control
    • Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways
    • Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway
    • View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar and navigation technologies using a single touch screen display.
    • From our space saving aSeries, to our flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later
    • Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more
    • View engine information displays on your smart phone or tablet with Raymarine mobile apps
    • Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel


    ECI-100 Engine Data Parameters
    The ECI-100 Universal Engine and Control Interface identifies the following parameters:
    • Engine speed
    • Engine oil temperature
    • Engine temperature
    • Engine oil pressure
    • Engine coolant pressure
    • Engine fuel rate
    • Boost pressure
    • Battery potential
    • Transmission oil pressure
    • Transmission oil temperature
    • Total engine hours
    • Fuel tank level
    • Trip fuel used (calculated by ECI-100)
    • Alternator potential
    • Engine torque
    • Engine percent load
    • Transmission gear
    • VIN (not shown on the display)
    • Software number (not shown on the display)


    Simple Integration, Powerful Performance
    The ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including:
    • Volvo Penta
    • Yamaha Marine (Command Link Plus only)
    • Caterpillar
    • Yanmar Marine


    Raymarine is committed to delivering seamless integration with leading marine engines. Visit www.raymarine.com for the latest engine compatibility information.

    An industry standard DeviceNet port connects the ECI-100 to manufacturerspecific CAN bus cabling. The ECI-100 then connects to NMEA2000 networks using the SeaTalkng cabling system. Each of the ECI-100's isolated ports is powered independently ensuring reliable, worry-free performance from both navigation electronics and engine systems.

    * SAE - Society of Automotive Engineers standard

    Specifications:

    • Box Dimensions: 2"H x 6"W x 9"L WT: 0.6 lbs
    • UPC: 723193785263

    Brochure (pdf)

    Product Reviews

    Product Questions & Answers

    Product Videos

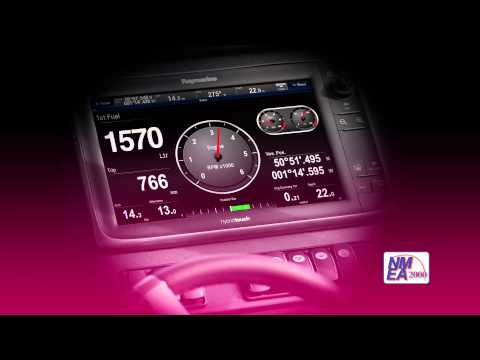

    Introducing the ECI-100 Universal Engine and Control Interface

    • Introducing th...

    Other Details

    Supplier Number:
    49819
    Google Product Type:
    GPS Fish
    Product MPN:
    E70227
    Product UPC:
    723193785263
    Condition:
    NEW
