Raymarine RV-212 RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 12° - 8M Cable Y-Cable

free shipping
List Price: $2,199.99
Starting At: $2,106.99
(You save $93.00
Order within and your order ships today!

Earn Captains Club Points

Wholesale Marine has created the Captains Club, an online loyalty rewards program that is second to none. Simply create an account at the time of purchase and you are registered to start collecting points. Captains Club

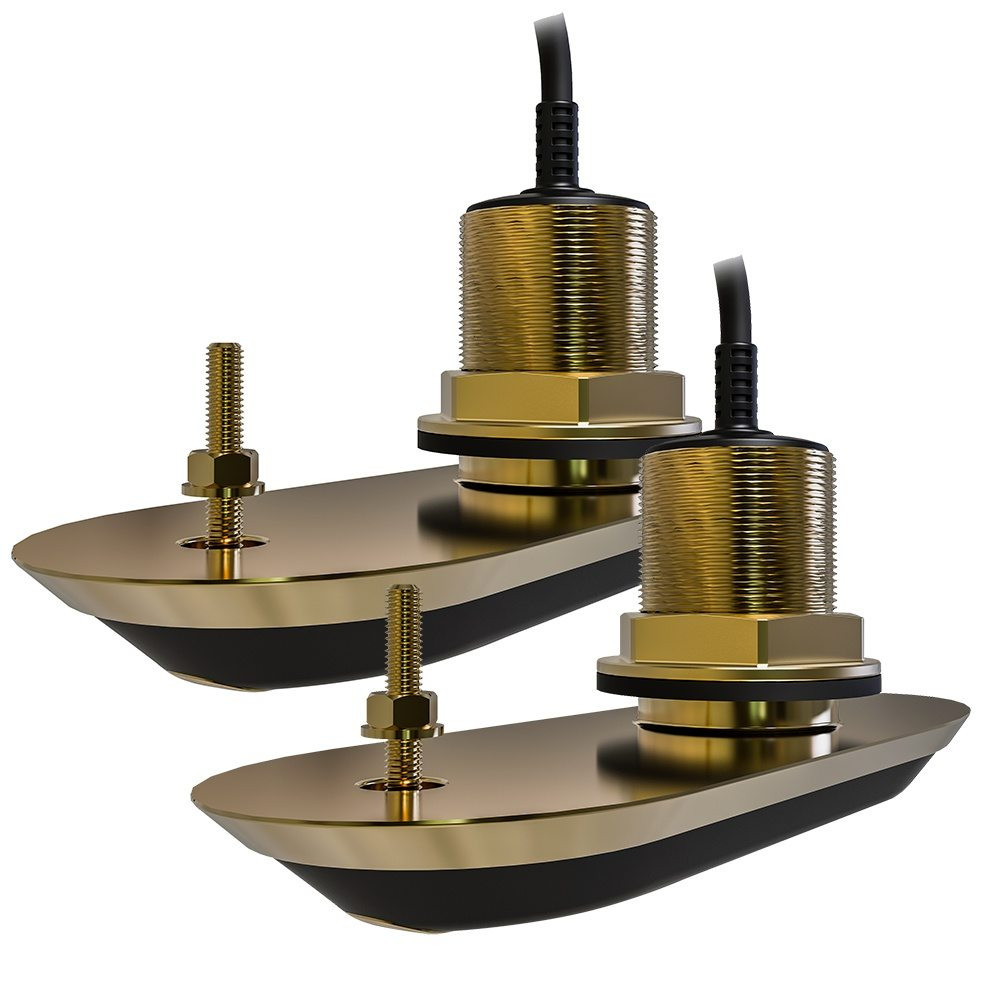

RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 12° - 8M Cable & Y-Cable

Designed for inboard or outboard boats, the RV-212 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-212 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-212 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine’s RV-212 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 1° to 12°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-212 system works great on trailered boats too.

The RV-212 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)

What’s in the Box?

  • RV-212P Bronze Port Transducer with 2M cable
  • RV-212S Bronze Starboard Transducer with 2M cable
  • RealVision 3D Transducer Y-Cable
  • RealVision 3D 8M (26') Transducer Extension Cable
  • Anti-rotation bolt kit
  • Installation instructions


  • Mounting Style: Thru-Hull
  • Imagining: Standard/Down/Side
  • Chirp: High
  • Temperature: Yes
  • Speed Included: No
  • Cable Length (Feet): 33'
  • Pins: 25
  • Box Dimensions: 15"H x 17"W x 28"L WT: 22.2 lbs
  • UPC: 723193817032
