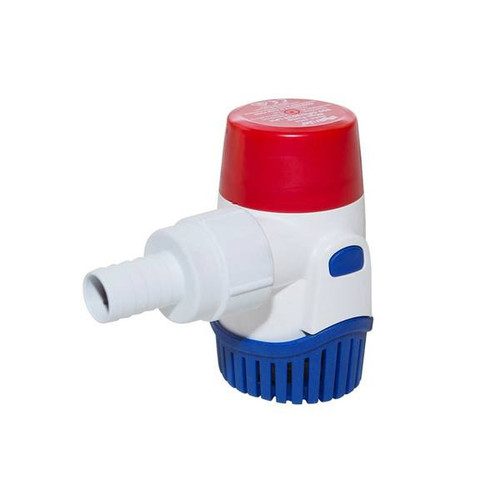

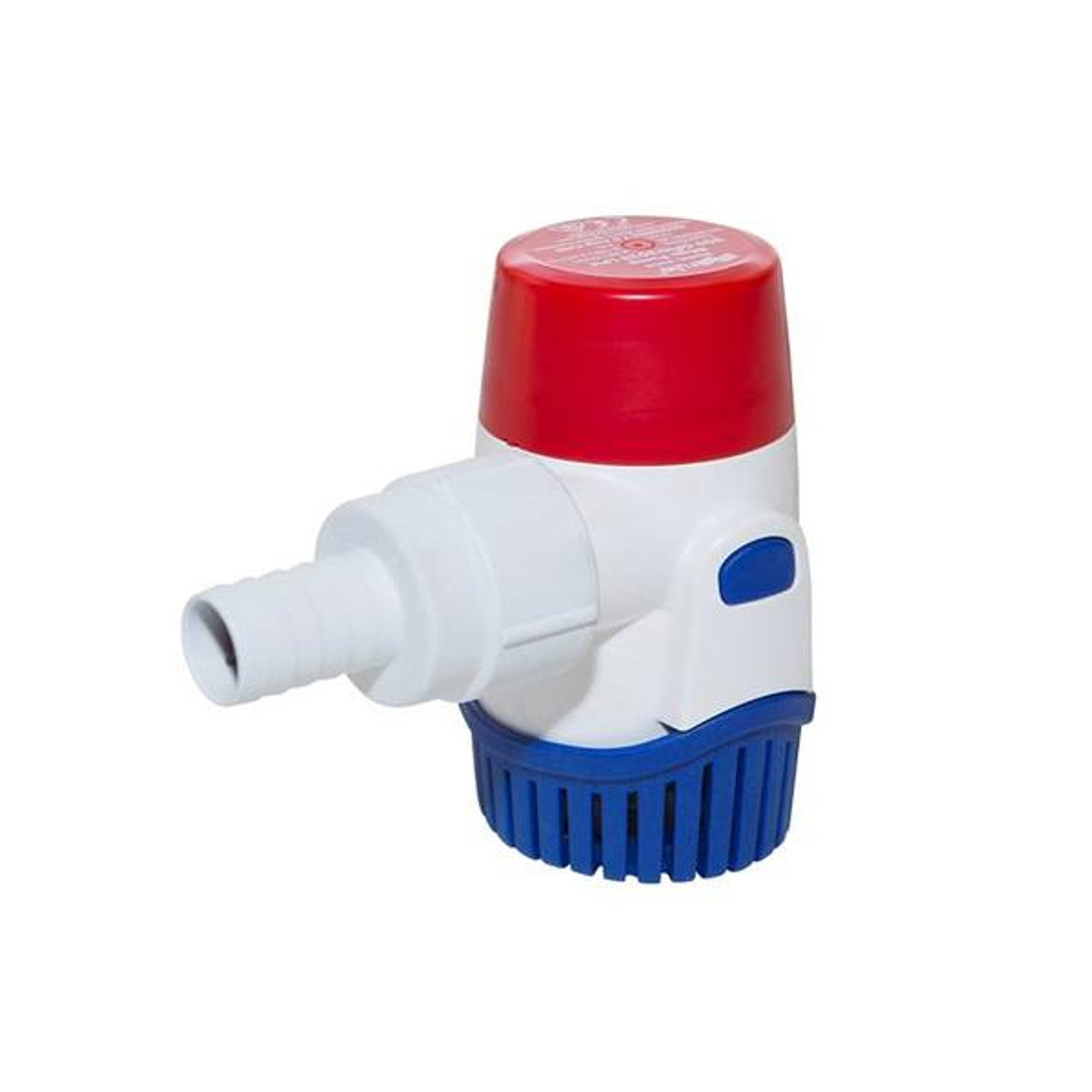

Rule 1100 GPH Automatic Bilge Pump 27SA

Rule 1100 GPH Automatic Bilge Pump 27SA

The Rule 1100 GPH Automatic Bilge Pump provides the ultimate pumping performance, which helps keep your bilge clear of nuisance water. Rule pumps are tested to the highest standards to deliver the best performance at an economical price. Float switches are not required for these fully automatic pumps. Controlled via built in sensors, the pump will turn on every 2.5 minutes for about 1 second to sense for water. If water is present, the pump will sense resistance and continue to run until all water is removed.

The pump is completely submersible and has a tough plastic body. It features back flow prevention to reduce the amount of water left over in the bilge. This reduces odor and helps keep the bilge cleaner. Hidden air vents in the body help with the check valve and prevents locking during plumbing installations. This model features a snap-lock strainer base which makes it easy to clean and a thermal cut-off for added protection. The threaded discharge provides easier installation and easier maintenance.

Features:

• Rust and corrosion protected
• Silent operation
• Completely submersible
• Ignition protected
• Long-life motor
• Non burn-out when dry
• Stainless steel shaft
• Back flow prevention
• Easy-clean
• Marine-grade blocked wiring
• Thermal cut-off
• Threaded discharge
• Marine-grade blocked wiring
• No float switch required
• 3 year warranty

Specifications:

• Height: 4.7"
• Width: 2.9"
• Depth: 2.5"
• Volts: 12 DC
• Amp draw @ 12 V: 3.7 amp
• Amp draw @ 13.6 V: 4.7 amp
• Fuse size: 7.5 amp
• Port size: 1" hose barb, 1-1/8" hose barb
• Replacement strainer: 1232R
• Panel switches: 41, 43, 45

Click here for Rule 27SA Automatic Bilge Pump Installation Instructions

Frequently Asked Questions

What is the Rule 1100 GPH Automatic Bilge Pump 27SA used for?

The Rule 1100 GPH Automatic Bilge Pump 27SA is a completely submersible bilge pump designed to help remove nuisance water from the bilge. It uses built-in sensors for automatic operation, so a separate float switch is not required. The pump has a 1100 GPH capacity and a tough plastic body.

How does the automatic sensing system work on the Rule 1100 GPH Bilge Pump?

The built-in sensors activate the pump every 2.5 minutes for about 1 second to check for water. If water is present, the pump senses resistance and continues running until all water is removed. This allows the pump to operate automatically without a separate float switch.

What features make the Rule 1100 GPH Automatic Bilge Pump easy to maintain?

The pump has a snap-lock strainer base that makes cleaning easier. Its threaded discharge is designed to simplify installation and maintenance, while hidden air vents in the pump body help with the check valve and prevent air locking during plumbing installations.

What protection features are included with the Rule 1100 GPH Automatic Bilge Pump?

The Rule 1100 GPH Automatic Bilge Pump features a thermal cut-off for added protection, along with ignition protection, rust and corrosion protection, a stainless steel shaft, marine-grade blocked wiring, and a design specified to prevent burn-out when running dry.

What hose connections are available for the Rule 1100 GPH Automatic Bilge Pump?

The Rule 1100 GPH Automatic Bilge Pump has 1" and 1-1/8" hose barb port options. The product specifications also list replacement strainer 1232R and Rule panel switches 41, 43, and 45 for this model.

What are the electrical and dimensional specifications of the Rule 1100 GPH Bilge Pump 27SA?

The Rule 1100 GPH Automatic Bilge Pump operates at 12 DC and draws 3.7 amps at 12 V or 4.7 amps at 13.6 V. It requires a 7.5 amp fuse and measures 4.7" high, 2.9" wide, and 2.5" deep.
