Sea-Dog Stainless Steel Surface Mount Locking Ring Pull

Sea-Dog Surface Mount Locking Lift Ring Pull

The Sea Dog Locking lift ring pull is designed to keep your valuables protected. This ring pull is ideal for hatches, deck plates, cabinets and drawers. Constructed of corrosion resistant 304 stamped stainless steel with a die cast zinc lock. Ring is recessed for a flush, clean installation.

• Constructed of corrosion resistant 304 stamped stainless steel
• Die cast zinc lock
• Comes with two matching keys
• Comes with two locking arms for flush or offset installations.
• Installs with back mounted threaded nut.

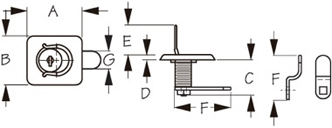

Dimensions:

• A: 2-1/8"
• B: 1-15/16"
• C: 1-1/16"
• D: 3/16"
• E: 15/16"
• F (locking arm): 1-7/16" - 1-7/8"
• G: 1/2"

Frequently Asked Questions

What is the Sea-Dog Surface Mount Locking Lift Ring Pull used for?

The Sea-Dog Surface Mount Locking Lift Ring Pull is designed for hatches, deck plates, cabinets, and drawers. Its recessed ring provides a flush, clean installation while the locking mechanism helps keep contents protected.

What is the Sea-Dog Locking Lift Ring Pull made from?

The ring pull is constructed of corrosion-resistant 304 stamped stainless steel with a die cast zinc lock. It installs using a back-mounted threaded nut.

Does the Sea-Dog Surface Mount Locking Lift Ring Pull include keys?

Yes. The Sea-Dog Surface Mount Locking Lift Ring Pull includes two matching keys for the locking mechanism.

What locking arms are included with the Sea-Dog Lift Ring Pull?

The lift ring pull includes two locking arms that allow for flush or offset installations. The listed locking arm dimension is 1-7/16" to 1-7/8".

What are the dimensions of the Sea-Dog Surface Mount Locking Lift Ring Pull?

The listed dimensions are 2-1/8" for A, 1-15/16" for B, 1-1/16" for C, 3/16" for D, 15/16" for E, 1/2" for G, and 1-7/16" to 1-7/8" for the locking arm.
