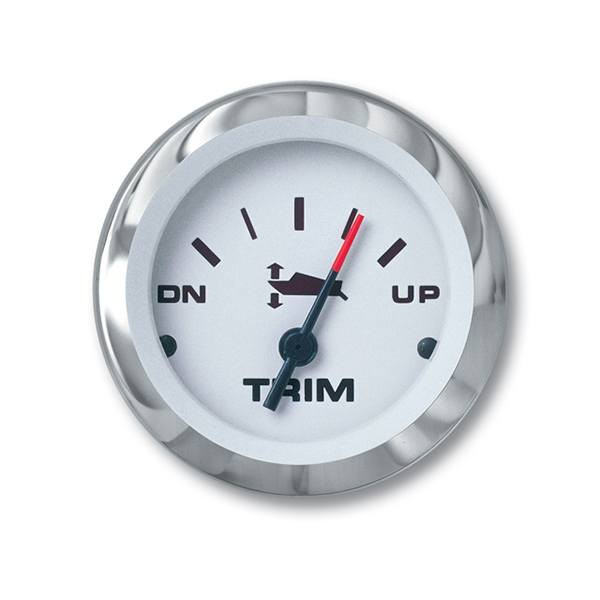

Sierra 65502P Johnson/Evinrude 4 Stroke Lido Series Trim Gauge

Sierra 65502P Johnson/Evinrude 4 Stroke Lido Series Trim Gauge

The hottest selling white dial line! A comprehensive famiily of instruments for most engine types, Lido features crisp white dials and fire orange pointer tips. Red through dial and white perimeter lighting provide great night readability.

Features:

• White dial, black numerals, black pointer with fire-orange tip.
• Scratch resistant curved glass lenses, with polished stainless steel, near flush bezels
• U.S. and metric scales, with ISO symbols.
• Optional add-on square bezels for modular apperance
• White perimeter and red thru-dial lighting.

Additional Details:

• Dial Range: UP-DOWN
• Size: 2"
• Trim Gauges (Outboard, I/O): Evinrude/Johnson Outboard, Suzuki 4-Stroke 2002 to date
• Sender Code: BY ENG. MFR
• Voltage: 12 VDC
• Current Draw: 0.10 - 0.15 A
• Operating Temperature: -40C to +70C
• Ingress Protection: IP65
• Bezel O.D.: 2.34
• Housing O.D.: 2.08
• Hole Size: 2.13

Shop All Lido Series

Frequently Asked Questions

What is the Sierra 65502P Johnson/Evinrude 4 Stroke Lido Series Trim Gauge used for?

The Sierra 65502P Johnson/Evinrude 4 Stroke Lido Series Trim Gauge displays trim position using an UP-DOWN dial range. It is listed for Evinrude/Johnson outboards and Suzuki 4-stroke applications from 2002 to date.

What engines is the Sierra 65502P Lido Series Trim Gauge compatible with?

The Sierra 65502P is listed for Evinrude/Johnson Outboard and Suzuki 4-Stroke 2002 to date applications. Verify your engine's requirements before purchasing or installing the gauge.

What sender does the Sierra 65502P Trim Gauge require?

The Sierra 65502P has a sender code of "BY ENG. MFR," meaning the sender specification is determined by the engine manufacturer. Verify the required sender for your specific application before installation.

What are the mounting dimensions of the Sierra 65502P Trim Gauge?

The Sierra 65502P is a 2-inch gauge with a 2.34-inch bezel outside diameter, 2.08-inch housing outside diameter, and 2.13-inch hole size. Check these dimensions against the available dash opening before installation.

Does the Sierra 65502P Trim Gauge have lighting for nighttime operation?

Yes. The Sierra 65502P features white perimeter lighting and red thru-dial lighting for night readability. It also has a white dial, black numerals, and a black pointer with a fire-orange tip.

What are the electrical and environmental specifications for the Sierra 65502P?

The Sierra 65502P operates at 12 VDC and has a current draw of 0.10-0.15 A. Its stated operating temperature range is -40C to +70C, and it has an IP65 ingress protection rating.
