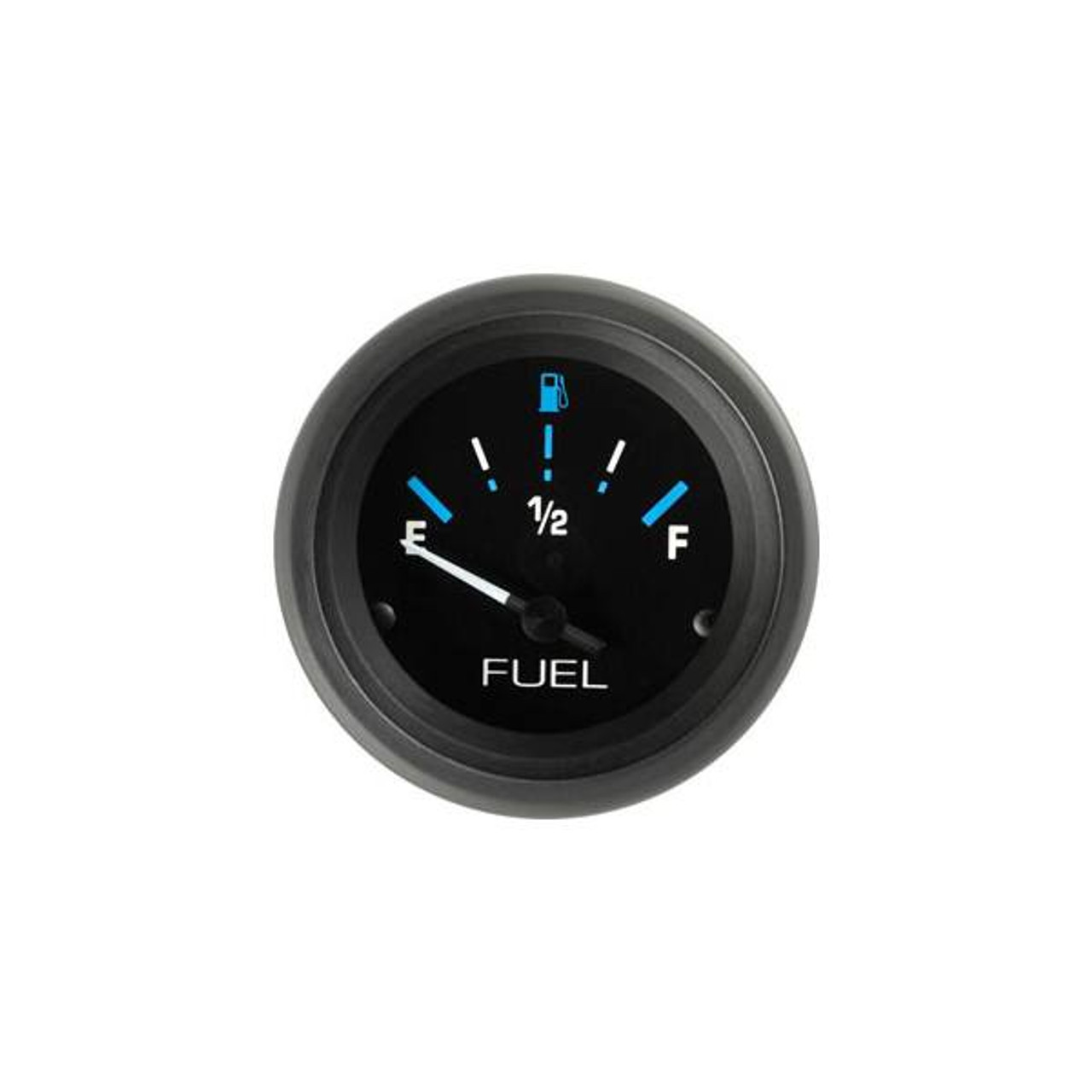

Sierra 68390P Eclipse Series 2" Fuel Gauge

Sierra 68390P Eclipse Series Fuel Gauge

Smart white and blue graphics on a black dial background, these very low profile bezels follow the curve of the lens to eliminate water trapping. Designed with domed glass sheds water and resists scratching.

Features:

• Instruments available for most outboards, sterndrives and gasoline-powered inboards.
• Scratch-resistant domes glass lenses.
• Perimeter lighting for excellent readability at night.
• U.S. and metric scales, with ISO symbols, where appropriate.
• Optional add-on square bezels for modular appearance.

Specifications:

• Dial Range: E-1/2-F
• Size: 2"
• Sender Code: None Required
• Voltage: 12 VDC
• Current Draw: 0.10 - 0.15 A
• Operating Temperature: -40C to +70C
• Ingress Protection: IP 65
• Bezel O.D.: 2.39
• Housing O.D.: 2.08
• Hole Size: 2.13

Shop All Eclipse Series

Frequently Asked Questions

What is the Sierra 68390P Eclipse Series Fuel Gauge used for?

The Sierra 68390P is a 2-inch marine fuel gauge with an E-1/2-F dial range. It operates at 12 VDC and features a black dial with white and blue graphics, making it suitable for marine instrument applications where its specifications and mounting dimensions match the boat.

Does the Sierra 68390P fuel gauge require a sender?

No. The Sierra 68390P has a sender code of "None Required," according to the supplied specifications.

What are the electrical specifications of the Sierra 68390P?

The Sierra 68390P operates at 12 VDC and has a current draw of 0.10-0.15 A. Its specified operating temperature range is -40°C to +70°C, and it has an IP65 ingress protection rating.

What are the mounting dimensions of the Sierra 68390P fuel gauge?

The Sierra 68390P has a 2.39-inch bezel outside diameter, 2.08-inch housing outside diameter, and 2.13-inch hole size. Verify these dimensions against your instrument-panel opening before installation.

What features does the Sierra 68390P Eclipse Series fuel gauge have?

The Sierra 68390P features a black dial with white and blue graphics, a scratch-resistant domed glass lens, and perimeter lighting for nighttime readability. It also uses U.S. and metric scales with ISO symbols where appropriate and supports optional add-on square bezels.

What applications is the Sierra 68390P fuel gauge designed for?

The Eclipse Series includes instruments available for most outboards, sterndrives, and gasoline-powered inboards. For this specific fuel gauge, verify the E-1/2-F dial range, electrical specifications, and mounting dimensions against your application before installation.
