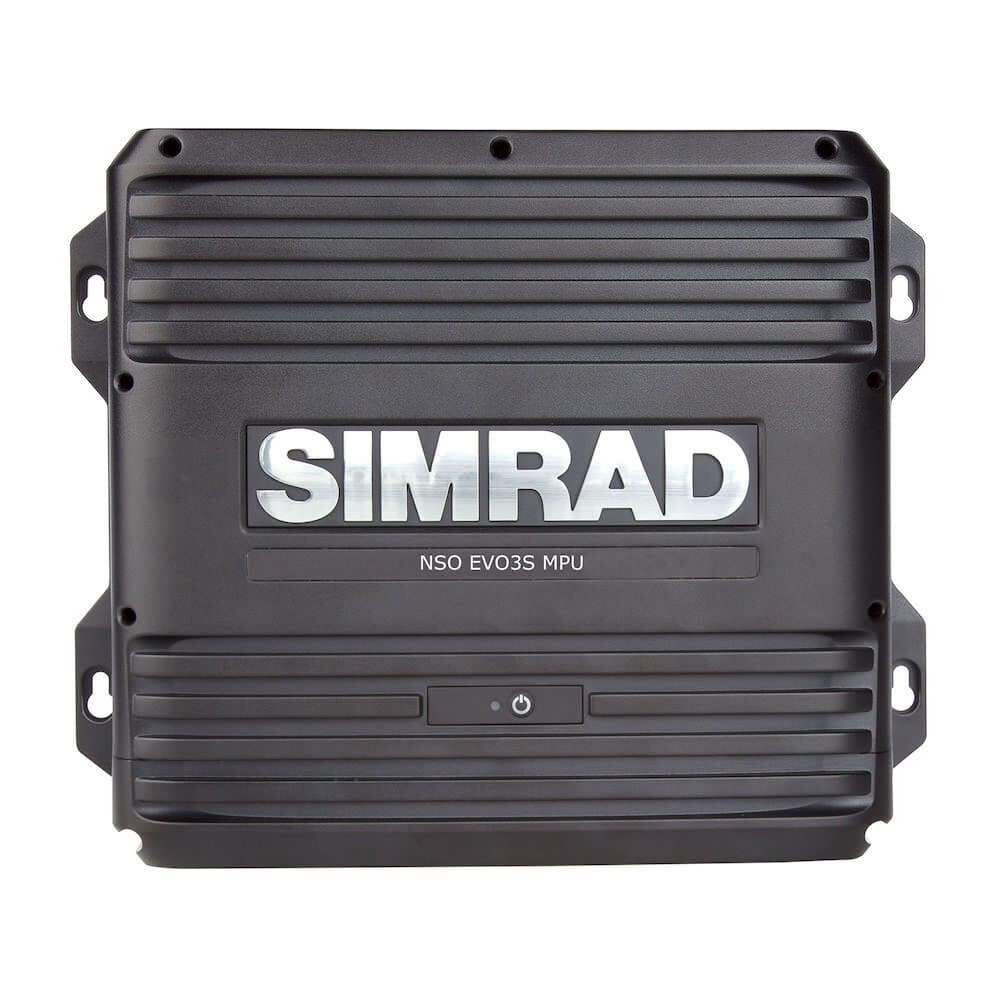

Simrad NSO evo3S MPU Processor

NSO evo3S MPU Processor

Create truly customized multi-display systems with the NSO evo3S Processor – the ideal solution aboard powerboats 33' (10M) and larger.  This marine processor can drive two independent displays, supporting both touchscreen and non-touch monitors.  Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more.

 Features:

• Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad-Core processors and the connectivity options needed to integrate and expand your system vessel-wide.
• Dual monitor support - enabling two independent stations
• Quad-Core processors for supreme performance. The NSO evo3S processor features two quad-core processors delivering category-leading response times across connected displays.
• Industry-standard vessel-wide connectivity. NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of Simrad and third-party accessories.

 Technical Specifications:

• Connectivity - NMEA 2000, NMEA 0183, ethernet, video inputs x 2, video output x 1, Wi-fi compatible with external module
• Languages - Standard Simrad language pack
• Supply Voltage - 9 - 31.2 V DC
• Waterproof rating - IPX2
• Dimensions (W x H x D) - 11" x 9.1" x 2.5" (281 x 232 x 66 mm)
• Weight - 2.33lb (1.06kg)

In the Box:

• Processor x 1
• Power cable - 6.5' (2 M) 4 pin to bare wire x 1
• Ethernet cable - 4" (.1 M) x 1
• NMEA 0183 cable - 6.5" (2 M) x 1
• NMEA 2000 cable - 6' (1.8 M) x 1
• NMEA 2000 power cable with T-Connector - x 1
• NMEA 200 terminal resistor kit x 1
• NMEA 2000 T-Connector x 2
• Instruction manual

*Sold as an Individual
