Mercury-MerCruiser 87-815200A02 3 Pin Pakcard Connector Transom Mounted Power Tilt Panel

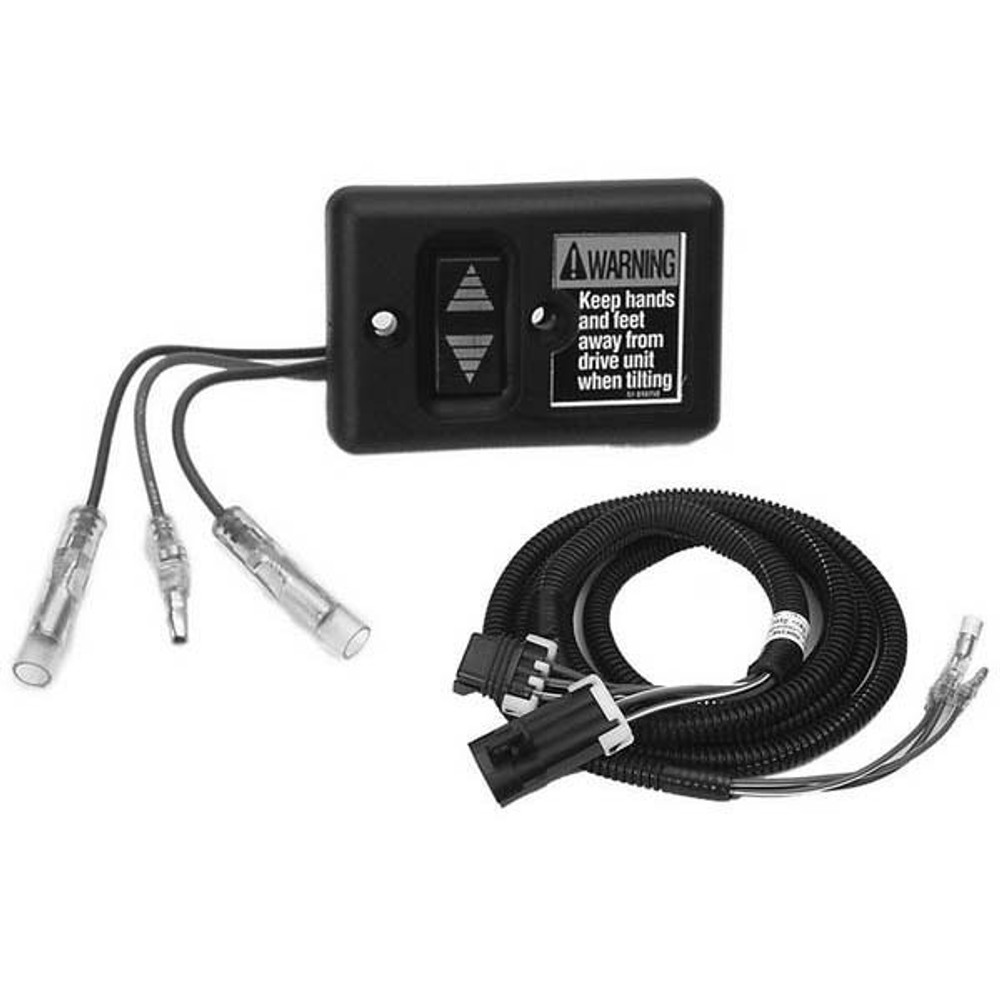

Mercury-MerCruiser 87-815200A02 Transom Mounted Power Tilt Panel

The Mercury-MerCruiser 87-815200A02 Transom Mounted Power Tilt Panel provides convenient tilt control from outside the boat when trailering, launching, or positioning the sterndrive. This rocker switch style panel includes a 6 ft. harness with bullet connectors for compatible Mercury and MerCruiser applications.

The included T-harness connects directly to the trim pump using a 3 pin Packard connector, making this panel a practical replacement or installation kit where this connector style is required. Always confirm your existing connector type before ordering.

Product Features:

• Transom mounted power tilt panel for compatible Mercury and MerCruiser applications
• Rocker switch style panel for simple tilt control
• Provides tilt operation from outside the boat
• Useful when trailering, launching, or positioning the drive
• Includes 6 ft. / 1.8 m harness with bullet connectors
• Included T-harness connects directly to the trim pump
• Designed for trim pumps using a 3 pin Packard connector

Product Details:

• Brand: Mercury / MerCruiser
• Manufacturer Part Number: 87-815200A02
• Part Type: Transom Mounted Power Tilt Panel
• Switch Style: Rocker switch
• Harness Length: 6 ft. / 1.8 m
• Harness Connectors: Bullet connectors
• Trim Pump Connection: 3 pin Packard connector
• Includes: Rocker switch panel, 6 ft. harness, bullet connectors, and T-harness

Fitment Note: This transom mounted power tilt panel is designed for applications using a 3 pin Packard connector at the trim pump. Please compare your existing connector style and refer to your owner’s manual or service manual to confirm compatibility before purchasing.

Frequently Asked Questions

What is the Mercury-MerCruiser 87-815200A02 Transom Mounted Power Tilt Panel used for?

The Mercury-MerCruiser 87-815200A02 Transom Mounted Power Tilt Panel provides tilt control from outside the boat. Its rocker switch can be used when trailering, launching, or positioning the sterndrive, making it a convenient control panel for compatible Mercury and MerCruiser applications.

What type of switch does the Mercury-MerCruiser 87-815200A02 Power Tilt Panel use?

The Mercury-MerCruiser 87-815200A02 uses a rocker switch style panel. The panel is designed to provide tilt operation from outside the boat for compatible applications.

What is included with the Mercury-MerCruiser 87-815200A02 Transom Mounted Power Tilt Panel?

The kit includes the rocker switch panel, a 6 ft. / 1.8 m harness with bullet connectors, and a T-harness. The T-harness connects directly to the trim pump using a 3 pin Packard connector.

How long is the harness included with the Mercury-MerCruiser 87-815200A02?

The included harness is 6 ft. / 1.8 m long and uses bullet connectors. The harness is part of the transom mounted power tilt panel kit and connects through the included T-harness for compatible trim pump applications.

What trim pump connector does the Mercury-MerCruiser 87-815200A02 require?

The Mercury-MerCruiser 87-815200A02 is designed for trim pumps using a 3 pin Packard connector. The included T-harness connects directly to the trim pump, so compare your existing connector type before ordering to confirm compatibility.

What should I verify before purchasing the Mercury-MerCruiser 87-815200A02 Power Tilt Panel?

Verify that your application uses a 3 pin Packard connector at the trim pump and compare your existing connector style with the product requirements. The product description also recommends referring to your owner’s manual or service manual to confirm compatibility before purchasing.
