AnchorLift Mako 1500 Low Profile Windlass - 3/8" & 5/8"

AnchorLift Mako 1500 Low Profile Windlass - 3/8" & 5/8"

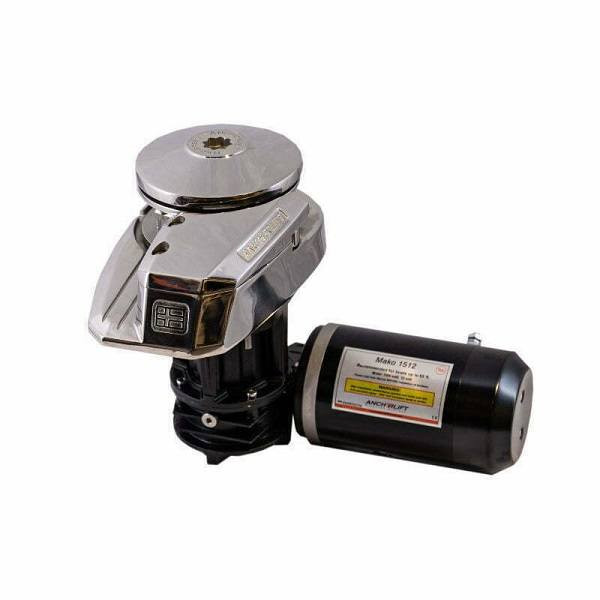

The Mako 1500 is a compact but powerful vertical windlass that offers silent operation and a low profile design to take up less space on deck. Designed for use with anchors 44 - 99 lbs and boats up to 65' in length. Constructed of 316L stainless steel, the deck unit and vertical shaft provide longer term corrosion resistance to hold up in marine environments and provide trouble free operation. This windlass is able to manual free fall with an adjustable clutch and high speed drop of up to 125' per minute. Works with chain only or chain/rope combination. The Mako 1500 is able to use chain up to 3/8" and rope up to 5/8".

Features:

• Low profile design
• Adjustable clutch
• Easy install
• Manual free fall
• 316L Stainless Steel
• High speed drop

Includes:

• Windlass Unit
• Motor & Gearbox
• Solenoid
• Circuit Breaker
• Handle
• Gear Box Backing Plate
• EPDM Base Gasket
• Thread Locker
• Hardware
• Mounting Template

Specifications:

• Boat Length: 40' - 65'
• Boat Weight: Up to 60,000 lbs
• Electrical System: 12-Volt
• Max Working Load: 1,069 lbs
• Max Power Pull: 2,612 lbs
• Max Speed Up: Approx. 71'/Minute (under normal load using 5/16" chain)
• Chain Gypsy: 3/8" HT G43 Windlass Chain & 5/8" Rope
• Chain Size: 3/8"
• Chain Length: 164' - 246'
• Rope Size: 5/8"
• Anchors: 44 - 99lbs
• Motor: 1500Watt
• Ground Tackle Weight: 353 lbs
• Amp Draw Down: 55Amp, 12V
• Amp Draw Up: 115Amp, 12V
• Circuit Breaker: 135A
• Cable Size: 2 AWG
• Deck Thickness: 1" - 2.5"

Click here for AnchorLift Mako 1500 Low Profile Windlass Installation Guide
