Ancor 6 Gauge Marine Battery Cable - Per Foot

Ancor 6 Gauge Marine Battery Cable - Per Foot

THIS PRODUCT IS SOLD BY THE FOOT

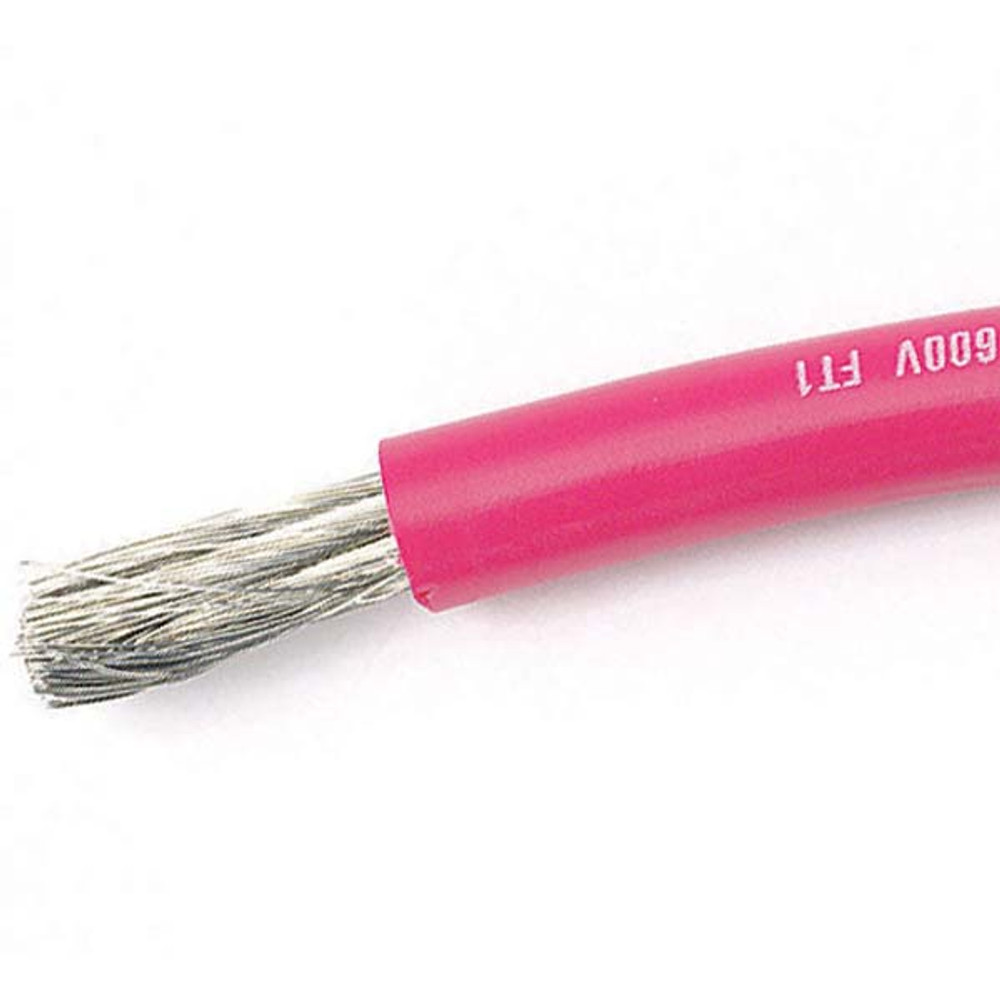

Ancor 6 Gauge Marine Battery Cable is constructed with high-quality tinned copper stranding and delivers maximum protection against both corrosion and electrolysis. This 6 Gauge Marine Battery Cable features flexible stranding that is resistant to cable fatigue brought on by vibration and flexing. Ancor’s marine-grade quality marine battery cables are designed to remain flexible in even the harshest conditions and are resistant to salt water, battery acid, oil, gasoline, and UV radiation. Manufactured from an exclusive insulation formula, this battery cable is rated at 600 volts, 105° C dry and 75° C wet, and is particularly resistant to heat and abrasion.

Product Features:

• ANCOR Marine Grade uses tinned copper standing for maximum protection against corrosion an electrolyis.
• To resist fatigue from vibration and flexing it is built with Ultra flexible (Type 3) stranding.
• Made with proprietary premium vinyl insulation rated at 600 volts, 105° C dry and 75° C wet.
• Cable stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultraviolet radiation.
• Exceeds ABYS standards and all UL 1426, US Coast Guard Charterboat (CFR Title 46).

Specifications:

• Wire Size: 6 AWG
• Nominal O.D.: 11/32" (8.7 mm)
• Minimum Bend Radius: 2-35/64" (6.5 cm)

Wire Gauge Chart - Critical Applications (3% Drop)

Wire Gauge Chart - Non-Critical Applications (10% Drop)
