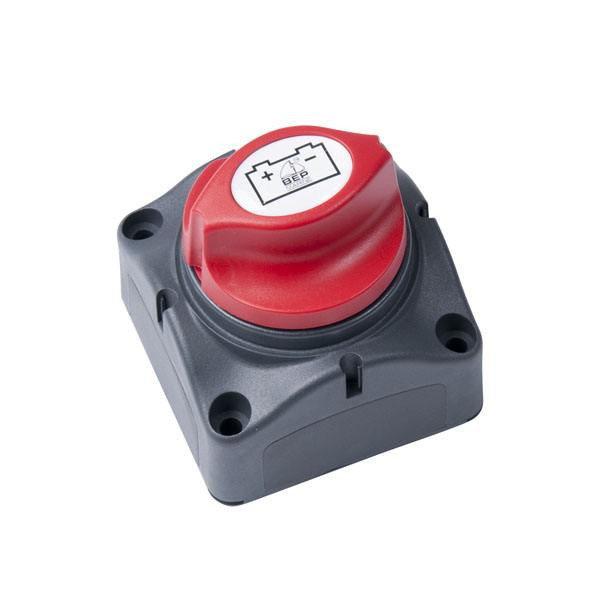

BEP Contour Battery Switch On/Off

BEP 701 Contour Battery Master Switch (On/Off)

The BEP 701 Contour Battery Switch is a master battery switch with on/off operation. Constructed of high strength, fiber reinforced plastic, this battery switch is designed for excellent high temperature performance and resistance to chemicals. This switch is also manufactured with BEP's patented Contour Locking System, allowing it to be a stand alone unit, or locked together with other switches. The control knob features an interchangeable labeling system, allowing a full range of applications. The control knob can also be removed by switching to a counter-clockwise 45 degree position. Three removable side panels allow access of up to 1/0 cables and a rear cover insulates the rear terminals against any short circuits. This combination ensures the switch meets ABYC requirements.

Features:

• Constructed of molded, high-strength, fiber reinforced plastic
• Excellent temperature performance and resistance to chemicals
• Patented contour locking system allows switch to be locked together with other switches
• Control knob can be removed
• Can be surface or recess mounted by cutting a 2.1" hole
• Tin-plated copper studs and nuts
• Ignition protected

Specifications:

• Dimensions: 2.75" L x 2.75" W x 3" H
• Mounting hole: 2.1"
• Operation: On/Off
• Continuous Rating: 275 A DC
• Intermittent Rating (5 min): 455 A DC
• Crank Rating (10 sec): 1250 A DC
• Voltage: 48 V DC
• Stud Size: 2 x 3/8" / 10mm
• Cable to meet rating: 3/0 / 95mm²

 Click to Download BEP 701 Contour Battery Switch Installation Instructions

Frequently Asked Questions

What is the BEP 701 Contour Battery Master Switch used for?

The BEP 701 Contour Battery Master Switch provides on/off control for a marine battery system. It can be used as a stand-alone switch or locked together with other switches using BEP's patented Contour Locking System.

What are the amperage and voltage ratings of the BEP 701 Contour Battery Switch?

The BEP 701 Contour Battery Switch has a continuous rating of 275 A DC, an intermittent rating of 455 A DC for 5 minutes, and a crank rating of 1250 A DC for 10 seconds. Its voltage rating is 48 V DC.

How can the BEP 701 Contour Battery Switch be mounted?

The BEP 701 Contour Battery Switch can be surface mounted or recess mounted using a 2.1-inch mounting hole. The switch measures 2.75 inches long by 2.75 inches wide by 3 inches high.

What materials are used in the BEP 701 Contour Battery Master Switch?

The BEP 701 Contour Battery Master Switch uses molded, high-strength, fiber-reinforced plastic construction. It also features tin-plated copper studs and nuts, with the housing designed for temperature performance and chemical resistance.

How does the BEP Contour Locking System work on the BEP 701 Battery Switch?

The patented Contour Locking System allows the BEP 701 Battery Switch to operate as a stand-alone unit or be locked together with other switches. The control knob also has an interchangeable labeling system and can be removed by turning it to a counter-clockwise 45-degree position.

What cable and terminal specifications does the BEP 701 Contour Battery Switch have?

The BEP 701 Contour Battery Switch has two 3/8-inch (10mm) studs and uses 3/0 (95mm²) cable to meet its listed ratings. Three removable side panels provide access for cables up to 1/0, while a rear cover insulates the rear terminals against short circuits.
