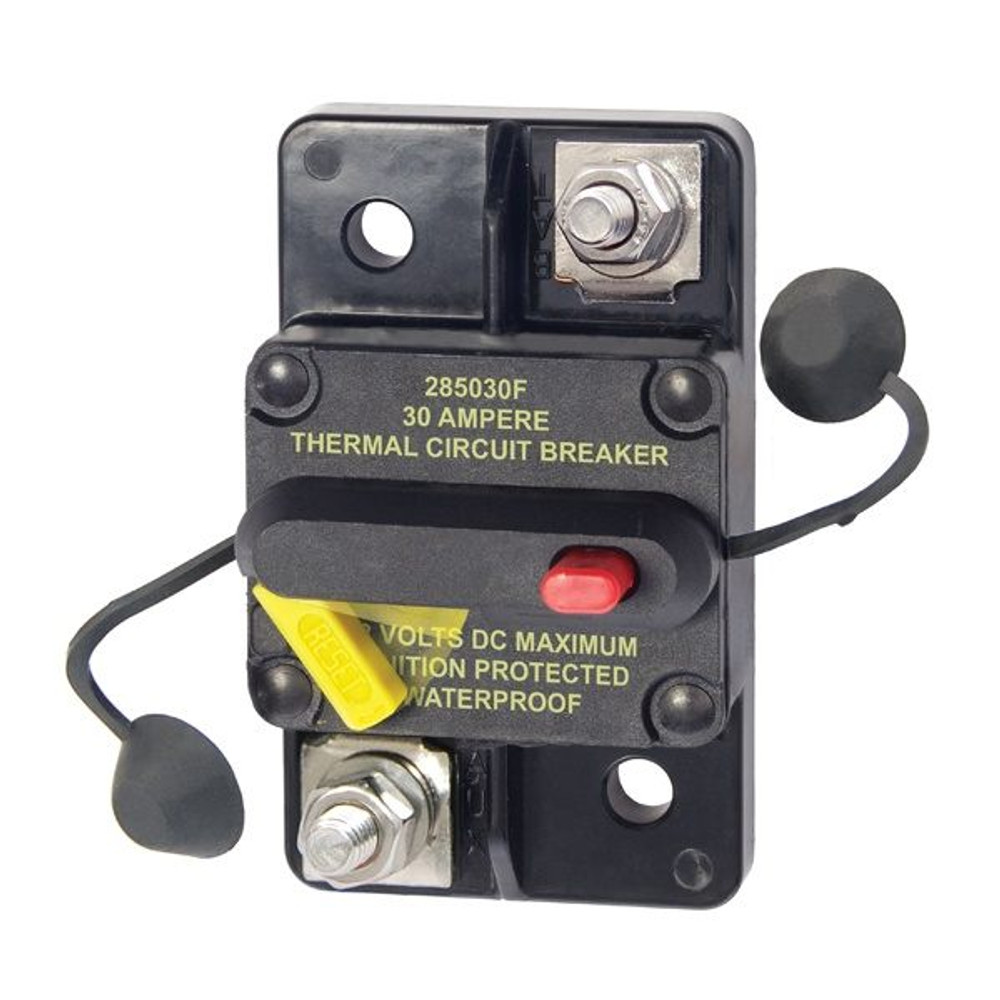

Blue Sea Systems 285 Series Surface Mount Circuit Breaker

The Blue Sea 285 Series Circuit Breaker is a drop-in replacement for 185 Series circuit breakers. This circuit breaker combines switching and circuit breaker function into one unit. Note: Do not use as a switch where high inrush currents are expected.

Features:

  • Surface Mount
  • Visible reset lever shows open condition
  • Ignition Protected; Safe for installation aboard gasoline powered boats
  • Weather resistant
  • "Trip free" cannot be held closed after trip
  • Available in 30, 40, 50, and 60 AMP models

Meets SAE J1171 external ignition protection requirements

Specifications:

  • Maximum Voltage: 48V DC
  • Terminal Stud: M6 (accepts 1/4" ring terminal)
  • Terminal Stud Torque: 50 in-lb
  • Interrupt Capacity: 3000A @ 48V
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Circuit Breaker Class: Type III - switchable/manual reset - trip free

California Residents: warning sign WARNING Cancer and Reproductive Harm - P65Warnings.ca.gov
