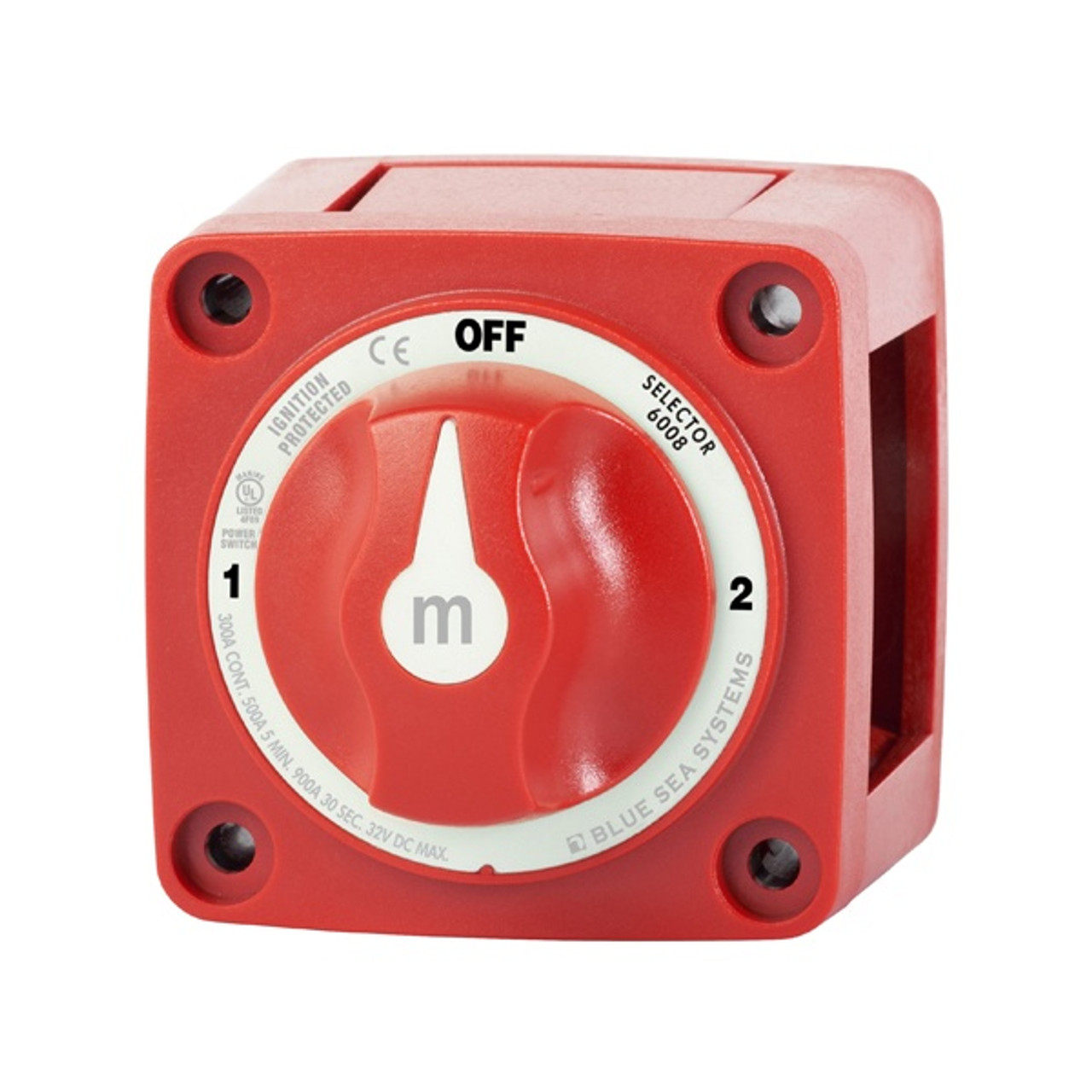

Blue Sea "M" Series Battery Switch - 3-Position

Blue Sea "M" Series Battery Switch - 3-Position

This Blue Sea "M" Series Battery Switch - 3-Position is ignition protected making it safe for installation aboard gasoline powered boats. It switches a single battery to a single load group. The case design allows for surface or rear panel mounting. This 3-Position "M" series battery switch is an ideal choice among many.

Features:

• Case Design Allows For Surface Or Rear Panel Mounting
• Ignition Protected
• Safe For Installation Aboard Gasoline Powered Boats
• Switches A Single Battery To A Single Load Group

Specifications:

• Maximum Voltage: 32V DC
• Switch Positions: 3
• Continuous Rating: 300A
• Battery Combine: No
• Switch Type: Selector 3 Position
• Intermittent Rating: 500A (5 Min)
• Color: Red
• Alternator Field Disconnect: No
• Cranking Rating 30 Seconds: 900A
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Battery Inputs: 2
• Cable Size To Meet Ratings: 4/0 AWG (120mm²), 4/0 AWG (130mm²)
• Mounting Holes: Accept #10 Screw
• Cable Clearance For 4/0 AWG Cables: 1.12 in (28.45 mm)

 Click to Download Blue Sea's Battery Management Wiring Schematics
