  • Garmin B619 20 Degree Tilt Bronze Thru-Hull Transducer - 8-Pin

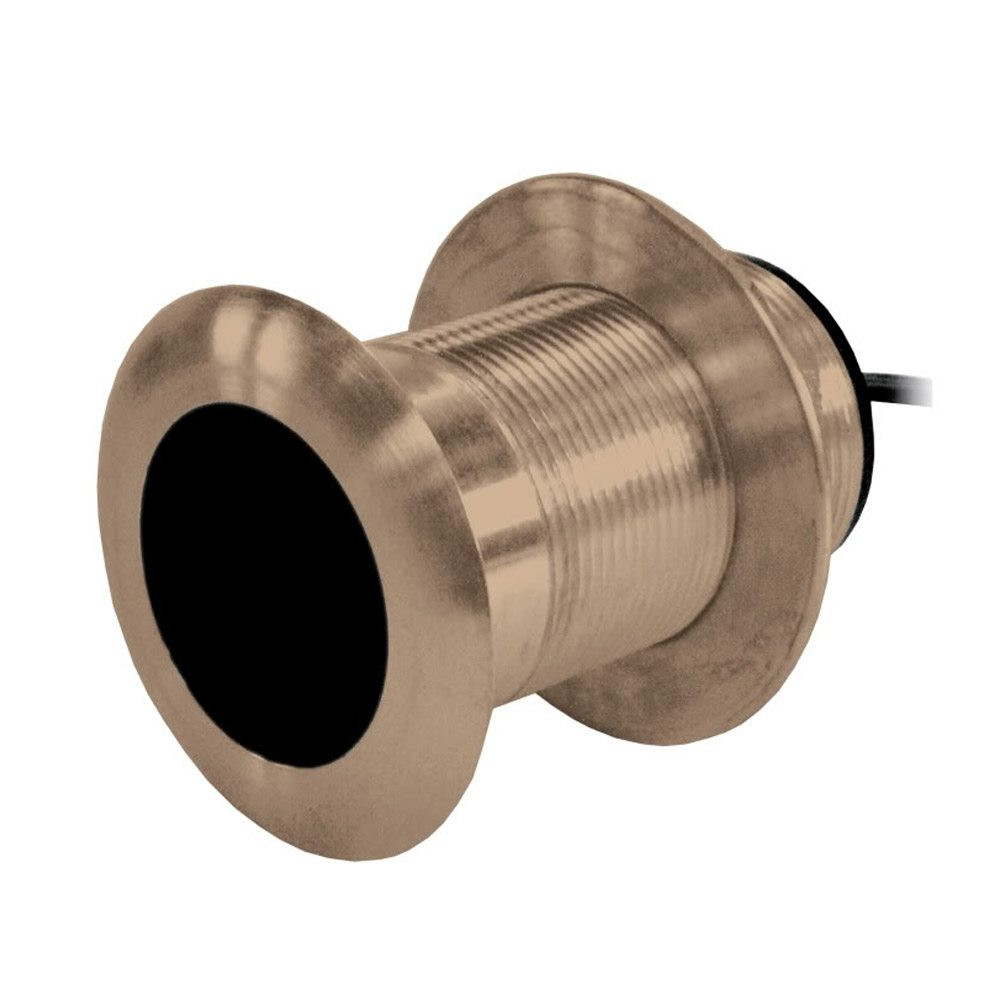

Garmin B619 20 Degree Tilt Bronze Thru-Hull Transducer - 8-Pin

SKU:
XGAR-010-10217-22
Availability:
Order within and your order ships today! Details
Current Stock:
4
$189.99
Our Price: $178.99
(You save $11.00)
Quantity:
Frequently Bought Together

    Product Description

    B619 20° Tilt Bronze Thru-Hull Transducer - 8-Pin

    Minimize Your Drag
    The B619 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

    Applications:

    • Cruising powerboats and sailboats
    • Sailboats


    Features:
    • Depth only or Depth and temperature
    • Fixed 20° tilted versions for 16° to 24° hull deadrise
    • Right angle cable exit offers low headroom and protection when transducer is stepped on
    • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
    • Housings are ABYC H-27 compliant
    • Optional temperature sensor
    • Bronze housing
    • Boat Size: Up to 9M (30')

    Specifications:

    • Cable Length (Feet): 30'
    • Fairing Block Included: No
    • Frequency: 77/200
    • Mounting Style: Thru-Hull
    • Pins: 8
    • Speed Included: No
    • Temperature: Yes
    • Box Dimensions: 4"H x 6"W x 8"L WT: 3.4 lbs
    • UPC: 753759971731

    Quick Guide (pdf)
    Owner's Manual (pdf)
    Brochure (pdf)

    Product Reviews

    Product Questions & Answers

    Other Details

    Supplier Number:
    47856
    Returns:
    Non-Returnable
    Supplier Number:
    47856
    Product MPN:
    010-10217-22
    Product UPC:
    753759971731
    Condition:
    NEW
