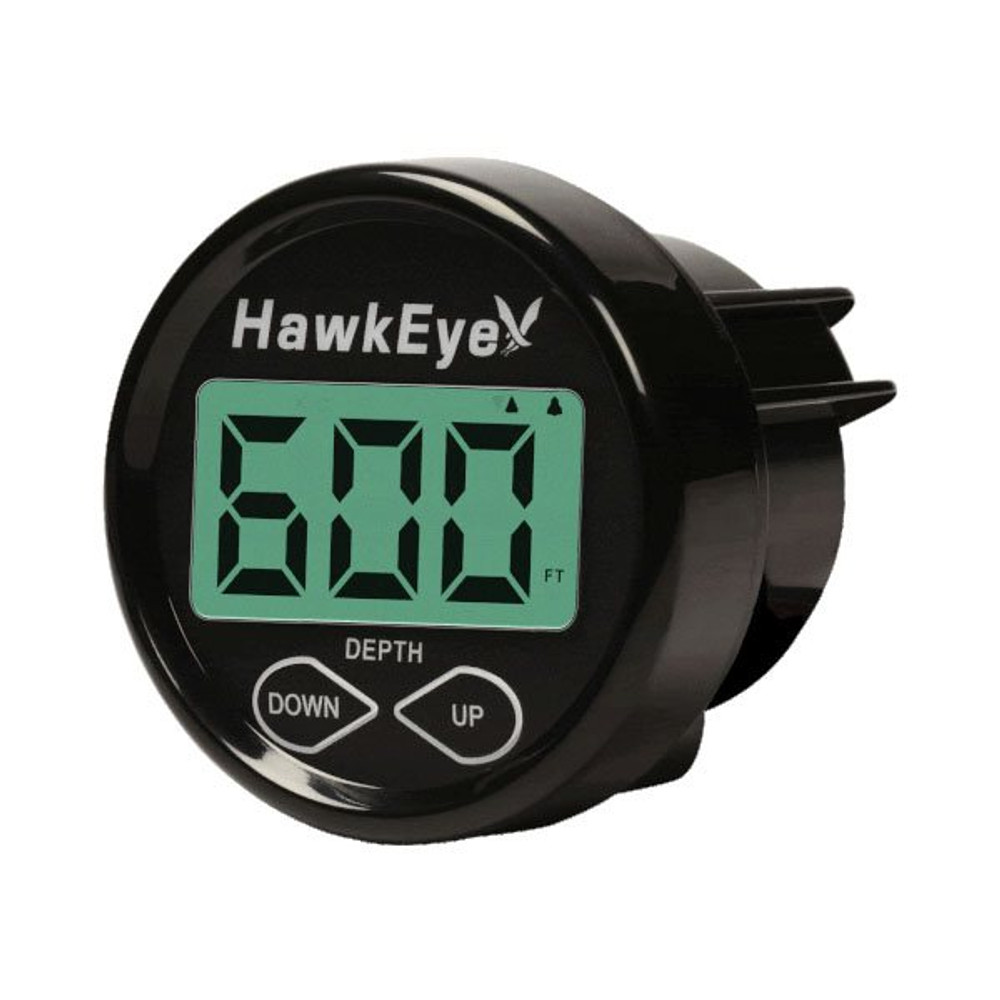

Hawkeye DepthTrax 2BX Depth Finder

Hawkeye DepthTrax 2BX Depth Finder w/ Transom Mount Transducer

The DepthTrax 2BX from Hawkeye is a boat-mount depth finder with a transom mount transducer. This depth finder includes advanced sonar, depth alarm, and keel offset capabilities. It also integrates dual temperature displays and an AIRMAR ultra-sensitive, high-performance transducer. A simple press of a button on the DepthTrax 2BX display produces instant access to water or air temperature readings via integrated sensors in both the head unit and the transducer.

Hawkeye's DepthTrax 2BX has intelligent sonar that delivers unmatched depth readings up to 600 feet. It also produces on plane readings up to 60 MPH. Dual upper and lower depth alarms can be set throughout the full depth range to warn of water depth changes. When shallow and deep water parameters are triggers, the 2BX will signal audible and visual alarms. With one-touch alarm muting, you can instantly turn off audible depth alarms so you can focus on the water and not the depth finder.

Built for the harshest marine environments, the DepthTrax 2BX has a 100% waterproof display face to prevent rain and salt spray from penetrating the inside. The 2BX also has a polarized LCD to allow for glare-free viewing of the display in any light condition and with or without sunglasses on. If your DepthTrax is damaged or faulty, Hawkeye will provide hassle-free repair or replacement for any damage for up to two years.

Features:

• 600 Foot Depth Range
• Automatic range and sensitivity
• Water and Air temperature readings
• Dual depth alarms with 3-stage advanced warning system
• Algorithmic software minimizes false readings
• English and imperial readings
• Includes black and white faces and bezels
• 2 Year manufacturer's warranty

Specifications:

• Dimensions: 2" Diameter x 1.75" Depth
• Screen Size: 1.65" Height, 0.87" Width
• Operating Temperature: 0~160°F
• Depth Range: 2.5 ft. ~ 600 ft.
• Transducer Cable Length: 30 ft
• Transducer Frequency: 200 kHz
• Transducer Beam Angle: 14/Degrees
• Power Requirement: 12-14 VDC
• Current Draw: 200 mAh

Frequently Asked Questions

What is the Hawkeye DepthTrax 2BX Depth Finder used for?

The Hawkeye DepthTrax 2BX Depth Finder is a boat-mount depth finder with a transom mount transducer. It provides depth readings up to 600 feet, water and air temperature readings, depth alarms, and keel offset capabilities for monitoring changing water depths.

How deep can the Hawkeye DepthTrax 2BX measure?

The Hawkeye DepthTrax 2BX has a depth range of 2.5 to 600 feet. Its intelligent sonar provides depth readings up to 600 feet and on-plane readings up to 60 MPH. Automatic range and sensitivity settings help provide depth readings across its specified range.

Does the Hawkeye DepthTrax 2BX display water and air temperatures?

Yes. The Hawkeye DepthTrax 2BX provides both water and air temperature readings. A press of a button provides access to temperature information from integrated sensors in the display head and transducer.

What type of depth alarms does the Hawkeye DepthTrax 2BX have?

The DepthTrax 2BX includes dual upper and lower depth alarms with a 3-stage advanced warning system. Audible and visual alarms can signal when shallow or deep water parameters are triggered, and one-touch alarm muting can turn off audible depth alarms.

What are the transducer specifications for the Hawkeye DepthTrax 2BX?

The Hawkeye DepthTrax 2BX includes an AIRMAR transducer with a 200 kHz frequency and a 14-degree beam angle. The transducer cable is 30 feet long, and the unit uses a transom mount transducer.

What are the power requirements and dimensions of the Hawkeye DepthTrax 2BX?

The Hawkeye DepthTrax 2BX requires 12-14 VDC and has a listed current draw of 200 mAh. The display measures 2 inches in diameter by 1.75 inches deep, with a screen measuring 1.65 inches high by 0.87 inches wide.
