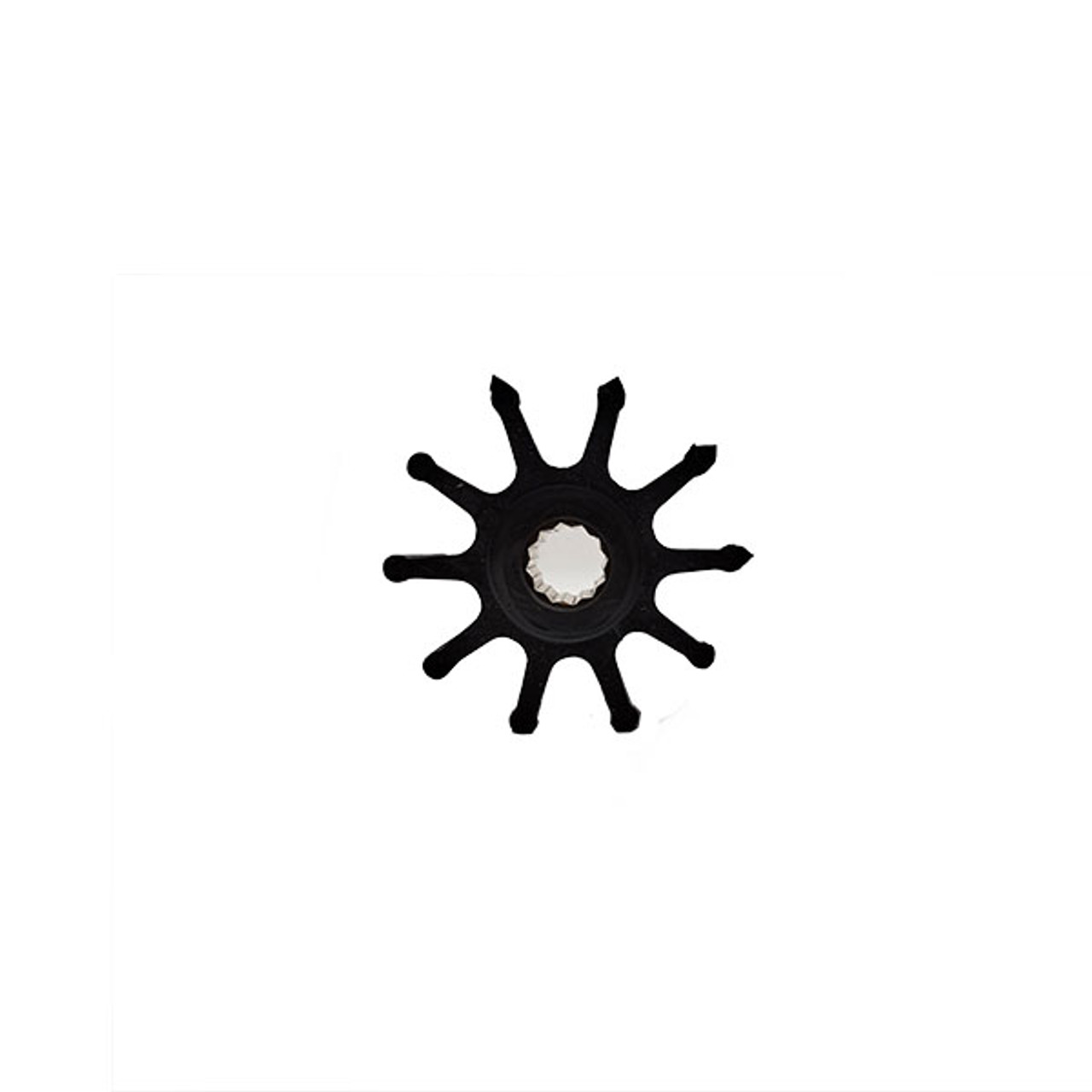

Jabsco 17937-0001-P Impeller replaces 801277/877061-2

Jabsco 17937-0001-P Impeller replaces Volvo 801277/877061-2

This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, a gasket and instructions for easy installation. This impeller is in MAN, Ford Leman, Volvo, Yanmar, and Johnson cooling systems.

Replaces:

• Yanmar
• 127610-42200
• Perkins
• 0460024
• 24880031
• Volvo
• 801277
• 877061-2
• 825941
• CAT
• 7C-3286
• Johnson
• 09-1028B
• Sherwood
• 18200
• Oberdorfer
• 7441

Specifications:

• Diameter: 2-9/16"
• Width: 2"
• Shaft Diameter: 5/8"
• Drive Type: Spline Drive
• Material: Neoprene
• Blades: 10

Jabsco 17937-0001-P Impeller Installation Instructions

1. Remove screws, endcover, and gasket
2. Remove old impeller using Jabsco removal tool
3. Remove any debris from pump chamber
4. Lubricate inside pump wall and grease
5. Insert replacement impeller into impeller bore with a twisting motion
6. Fit replacement gasket and endcover
7. Tighten endcover
