Lewmar V3 Vertical Windlass

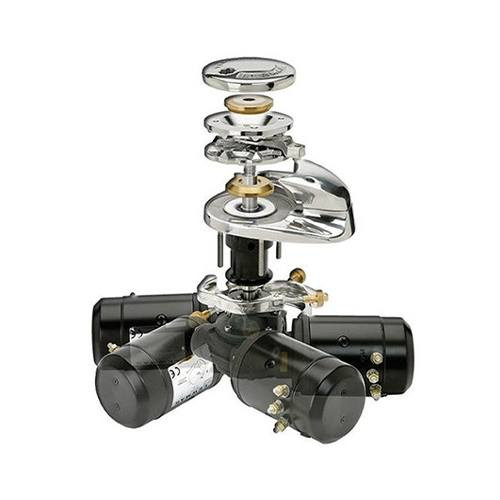

Lewmar V3 12V Vertical Windlass - Gypsy Only

The Lewmar V3 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.

Features:

• FastFit
• W.A.R.P drum
• Rope-chain gypsy
• Manual chain release (Free Fall)
• Rope size: 5/8"
• Fall safe anchor lock
• Cone clutch
• Robust worm gearbox

Specifications:

• Motor Power: 1000Watts
• Max Pull: 1962 lbs
• Working Load: 473 lbs
• Max Line Speed: 92' per minute
• Normal Current Draw: 85Amps
• Circuit Breaker: 110Amps

Click here to download V3 Vertical Windlass Owner's Manual

Frequently Asked Questions

What is the Lewmar V3 12V Vertical Windlass - Gypsy Only designed for?

The Lewmar V3 12V Vertical Windlass - Gypsy Only is designed for boat anchoring applications and features stainless steel construction for durability and corrosion resistance. Its low-profile design helps keep the windlass out of the way while providing rope-chain rode handling and manual free-fall capability.

What rope size does the Lewmar V3 Vertical Windlass use?

The Lewmar V3 is specified for 5/8-inch rope and features a rope-chain gypsy. It also includes a W.A.R.P drum, manual chain release, fall-safe anchor lock, cone clutch, and robust worm gearbox.

How does the FastFit system simplify installation on the Lewmar V3?

The FastFit motor gearbox is designed for easy installation. Align the deck unit, slide the gearbox up the shaft, then swing the clamp shut and tighten it with the bronze nut. This allows the deck unit and motor gearbox to align for installation.

Does the Lewmar V3 Vertical Windlass have a manual free-fall function?

Yes. The Lewmar V3 features a manual chain release for free-fall anchoring. It also includes a fall-safe anchor lock and cone clutch as part of its windlass design.

What are the pulling power and line speed of the Lewmar V3 Windlass?

The Lewmar V3 has a maximum pull of 1,962 lbs. and a working load of 473 lbs. Its maximum line speed is 92 feet per minute. The 12V motor is rated at 1,000 watts with a normal current draw of 85 amps and a 110-amp circuit breaker.
