NFB 4.2 Tilt Rotary Steering System

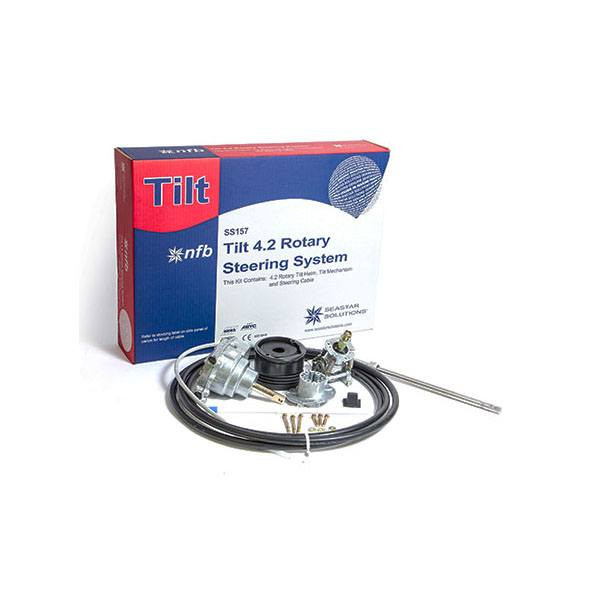

SeaStar Solutions NFB 4.2 Tilt Rotary Mechanical Steering System

With the SeaStar Solutions NFB 4.2 Tilt Rotary Steering System, you get the benefits of the patented No FeedBack Control as well as the world's most popular tilt steering. This 4.2 Rotary NFB Tilt Kit puts all the latest mechanical steering technology in one box. SeaStar Solution's tilt steering allows for 48° of total adjustment in five 12° positions.

Application:

NFB 4.2 Tilt single-cable systems are suitable for most single-station boats with a single non-power-assisted outboard or stern drive engines up to V-6 and minimal engine flutter or steering instability. 4.2 Tilt accepts wheels up to 16” diameter.

Drop-in replacement for all current generation SeaStar Solutions Tilt Steering with no dash modification — and replace other rotary steering systems with minimal dash modifications.

Features:

• SeaStar Solutions Tilt Steering with 48° of total adjustment in five 12° positions
• Patented NFB (No FeedBack™)
• Comfortable 4.2 turns from lock-to-lock
• Minimal clutch free play
• Standard 3/4” round tapered steering wheel shaft
• Stainless steel cable output ends
• Fast, easy installation: uses SeaStar Solutions® Quick Connect (QC) steering cable
• Meets A.B.Y.C. standards
• Meets N.M.M.A. certification requirements

How to Measure Steering Cables - Measure Twice. Order Once.

Replacement of Existing Cable:

• Locate the part number stamped on the plastic jacket of the old cable.
• Then follow the manufacturer's directions for that part.
• If you removed the old cable, measure for the replacement cable as follows:

For Rack and Pinion Steering System

Cable Replacement:

• Measure the existing cable as shown in the illustration.
• Measure plastic cable jacket (“Y” dimension shown in above drawing) in inches.
• Add 30″, and round-up to next foot
• Order that length cable.

New Installation:

• Measure cable routing path from wheel center line to engine connection, as follows:
• A = Center line of wheel to gunwale (or deck, if routed downward)
• B = Dash to transom
• C = Gunwale to centerline of cable connection at centered tiller.

For Cable Installations through the Engine Tilt Tube:

• Add A, B & C + 6″, then round up to the next foot.
• Order that length cable.

For Cables Mounted to Transom, Splashwell or Stringer:

• Add A, B & C, then subtract 6″ and round up to the next foot.
• Order that length cable.

TYPICAL SINGLE STATION ROUTING

The diagram above illustrates the single-cable, starboard drive push-pull mechanical cable system. For different mechanicals or if you have any questions about mechanical steering relative to this guide, please contact Teleflex (Mechanical) Technical Service at (610) 495-7011 or visit ww.teleflexmarine.com

Cable routings (such as those found on pontoon boats) may vary from this drawing. Length can be confirmed by laying a garden hose or similar object) along cable path and measure run from wheel to engine connection point.
