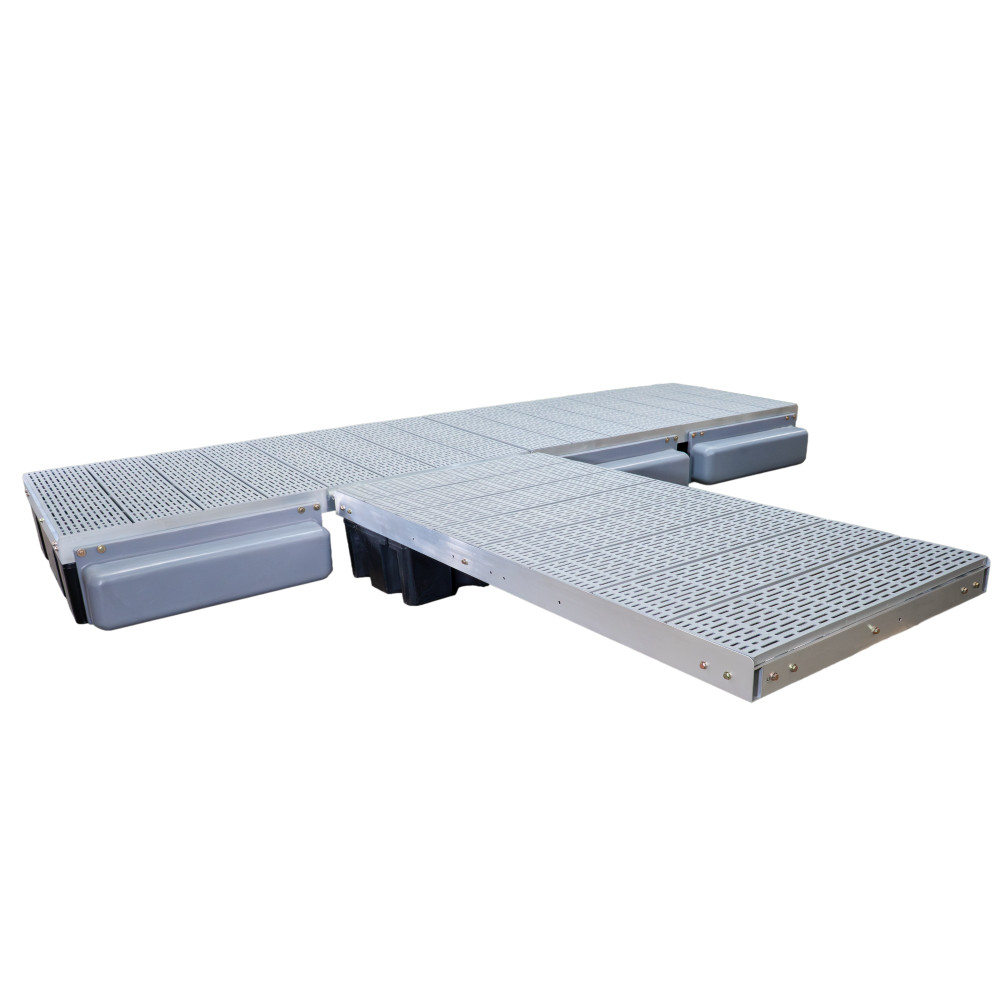

Patriot Docks Premium Floating Canal Dock w/ Poly Decking

Patriot Docks Premium Floating Canal Dock Package with Poly Decking

The Patriot Docks Premium Floating Canal Dock with Poly Decking is a versatile floating dock system designed specifically for canal waterfront applications. Combining a floating T-dock design with an 8 ft. ramp, this modular dock system can be expanded and customized to fit changing waterfront needs. Constructed with a 6000 series marine-grade aluminum frame, the dock offers lightweight strength, corrosion resistance, and long-lasting performance season after season.

The low-profile aluminum frame allows the dock to sit closer to the water for easier access, while the unique hinge system provides natural movement with changing water conditions to help reduce stress on the structure. Foam-filled floats deliver reliable buoyancy and stability, while side stability floats add additional load support, usable surface area, and protection. The durable polypropylene decking is reinforced with aluminum slats for added strength, stays comfortable for barefoot use, and features a simple drop-in panel design for easier installation and transport.

Features

• Floating T-dock design with 8 ft. ramp for easy waterfront access
• Modular 4 ft. x 8 ft. dock sections allow flexible configurations and expansion
• Lightweight, corrosion-resistant 6000 series marine-grade aluminum frame
• Low-profile design positions dock closer to the water for easier entry and exit
• Foam-filled floats provide buoyant, leak-resistant performance
• U.S. Coast Guard Approved foam-filled rectangular floats
• Side Stability Floats on every platform section add buoyancy, stability, and load support
• Floating hinge system allows dock movement with changing water levels while reducing stress points
• Durable polypropylene decking reinforced with aluminum slats for added strength
• Barefoot-friendly decking stays comfortable during use
• Drop-in decking panels simplify installation, transport, and maintenance
• Cedar decking provides an attractive natural appearance
• Designed for canal and waterfront environments

8' Floating Dock Kit Includes:

• (2) 4' x 8' Low profile floating dock frame + hardware
• (2) 48" x 24" x 12" Foam filled rectangular floats + plug
• (2) J-bolt float mounting hardware set
• (4) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to a 2" O.D. pipe)
• (4) 4' x 4' Reinforced poly deck panels
• Assembly instructions

16' Floating Dock Kit Includes:

• (3) 4' x 8' Low profile floating dock frame + hardware
• (4) 48" x 24" x 12" Foam filled rectangular floats + plug
• (4) J-bolt float mounting hardware set
• (7) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to a 2" O.D. pipe)
• (6) 4' x 4' Reinforced poly deck panels
• Assembly instructions

24' Floating Dock Kit Includes:

• (4) 4' x 8' Low profile floating dock frame + hardware
• (6) 48" x 24" x 12" Foam filled rectangular floats + plug
• (6) J-bolt float mounting hardware set
• (11) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to a 2" O.D. pipe)
• (8) 4' x 4' Reinforced poly deck panels
• Assembly instructions

Vertical piling pipe is NOT included. Customer is responsible for determining acceptable anchoring method.
