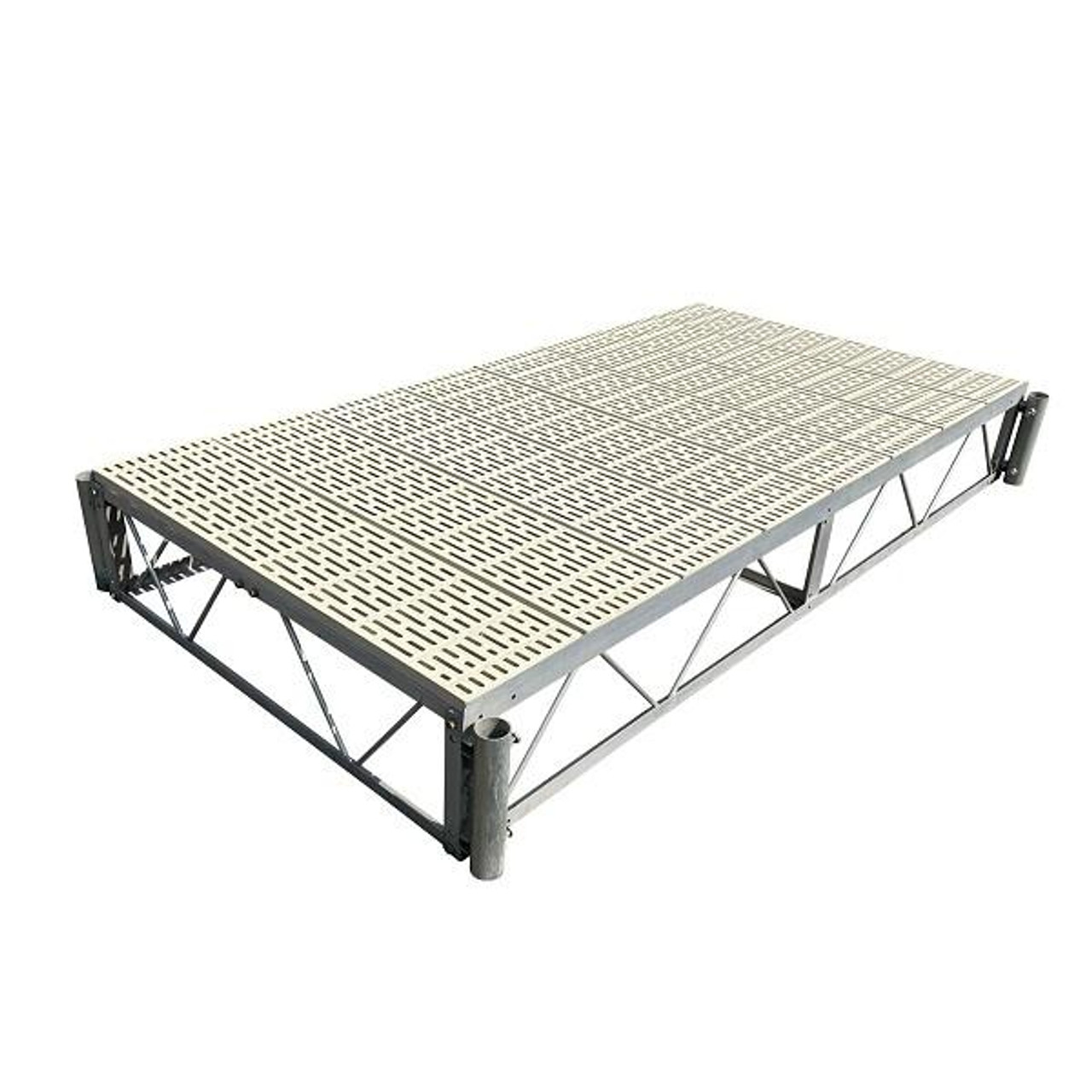

Patriot Docks Premium Floating Canal Dock w/ Tan Poly Decking

Patriot Docks Premium Floating Canal Dock w/ Tan Poly Decking

The Patriot Docks Premium Canal Floating Dock is a combination of a floating "T" dock with an eight foot ramp. This versatile dock system can be expanded and customized to suit your waterfront needs. Premium construction features ensure this dock will last season after season.

Features:

• Corrosion-resistant foam helps maintain stability on the water
• Stability floats add critical load support and usable surface area
• To eliminate stress the unique hinge system allows the dock to move with changing water conditions
• Low-Profile aluminum frame allows the modular floating dock to sit closer to the water than any other dock in the market
• Poly decking is durable and barefoot-friendly

Construction Details:

Constructed of 6000 series marine grade aluminum, the Premium Floating Dock is designed to sit close to the water surface, allowing for easy access in and out of the water. Measuring 96” x 48” x 4-1/2”, and only weighing 50 lbs., the Premium Floating Dock has a 4’ wide usable walking surface and is easy to manage for seasonal removal or maintenance. Features attractive cedar decking.

Why Choose Poly Decking? The Patriot Docks Polypropylene (plastic) decking is reinforced with aluminum slats for strength and is designed to span 24” o.c. The decking is manufactured for flexible and easy installation. Decking stays cool even in extreme temperatures and is barefoot friendly.

The Premium Floating Dock is supported by (2) 48” x 24” x 12” foam filled rectangular floats EVERY 8ft of dock frame, with a total buoyancy rating of 400 lbs. per float. With a UV protected, impact resistant outer shell, these floats will battle the most challenging water conditions. Patriot Dock's floats deliver unmatched performance buoyancy and are U.S. Coast Guard Approved.

A Patriot Docks Floating Hinge Kit is used every 16ft span to ensure natural articulation of the dock and to minimize stress points along the dock structure. The kit allows for 25° of articulation along the 4’ aluminum hinge tube.

Stability is crucial to the performance of any floating dock system. The Patriot Docks Premium Floating Docks includes (4) Side Stability Floats every 8ft section of dock frame. The impact resistant HDPE outer shell with EPS foam fill will stand the test of time and abuse in any marine environment. The Side Stability Float measures 43” x 13” x 7” and weighs only 14 lbs. With 150 lbs. of tank tested buoyancy rating, the Side Stability Float will not only increase your docks usable surface area but add critical load support for your floating dock structure.

8' Floating Dock Kit Includes:

• (2) 4' x 8' Low profile floating dock frame + hardware
• (2) 48" x 24" x 12" Foam filled rectangular floats + plug
• (2) J-bolt float mounting hardware set
• (4) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to a 2" O.D. pipe)
• (4) 4' x 4' Reinforced poly deck panels
• Assembly instructions

16' Floating Dock Kit Includes:

• (3) 4' x 8' Low profile floating dock frame + hardware
• (4) 48" x 24" x 12" Foam filled rectangular floats + plug
• (4) J-bolt float mounting hardware set
• (7) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to a 2" O.D. pipe)
• (6) 4' x 4' Reinforced poly deck panels
• Assembly instructions

24' Floating Dock Kit Includes:

• (4) 4' x 8' Low profile floating dock frame + hardware
• (6) 48" x 24" x 12" Foam filled rectangular floats + plug
• (6) J-bolt float mounting hardware set
• (11) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to a 2" O.D. pipe)
• (8) 4' x 4' Reinforced poly deck panels
• Assembly instructions

Vertical piling pipe is NOT included. Customer is responsible for determining acceptable anchoring method.
