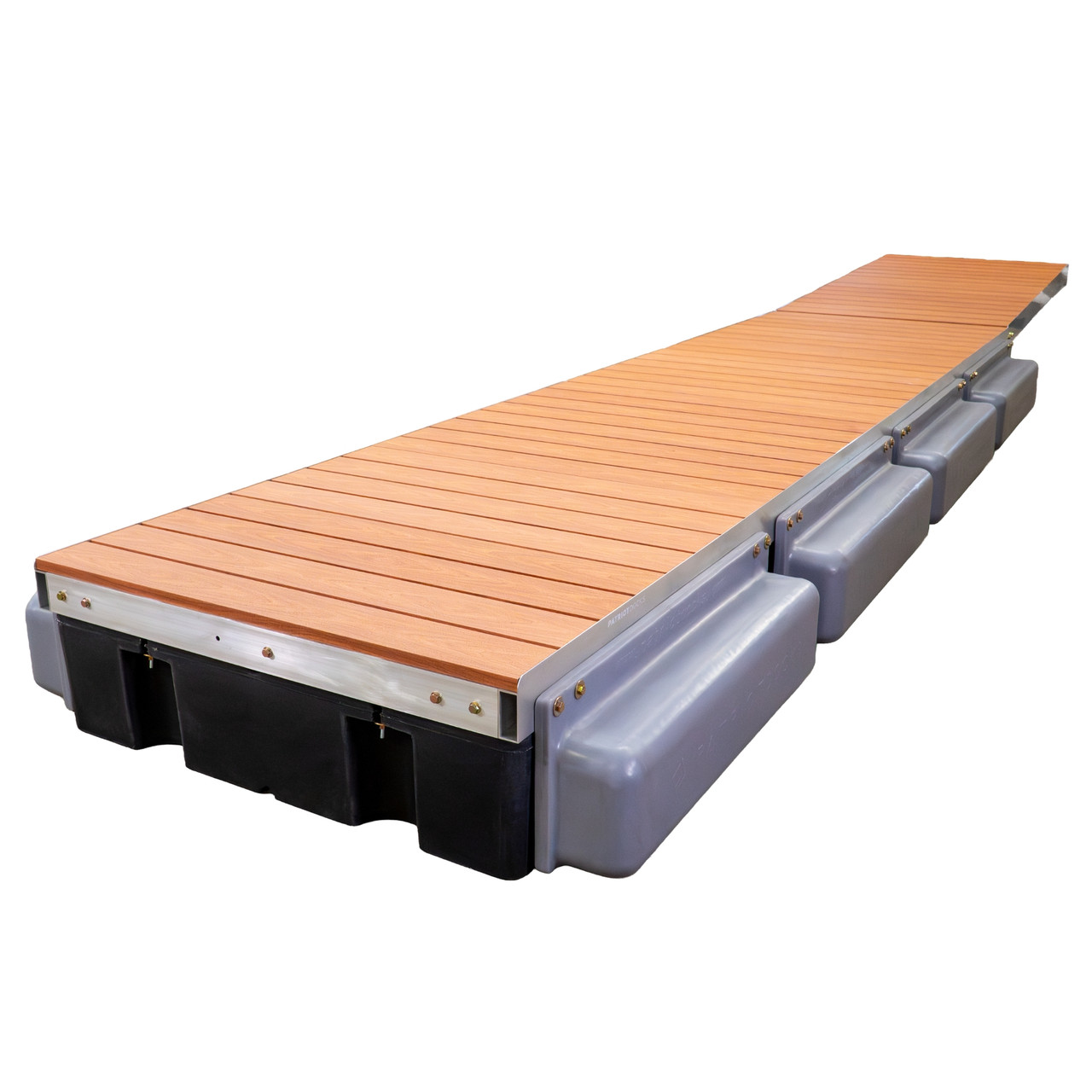

Patriot Docks Premium Floating Dock w/ Brown Aluminum Deck

Patriot Docks Premium Low-Profile Straight Floating Dock with Brown Aluminum Decking

The Patriot Docks Straight Premium Floating Dock provides a durable, stable, and low-maintenance platform for residential and recreational waterfront applications. Available in 24 ft., 32 ft., and 40 ft. configurations, this modular floating dock system is designed for lakes, reservoirs, rivers, and other waterfronts with fluctuating water levels or deeper water.

Constructed from marine-grade 6061-T6 aluminum, the low-profile frame provides lightweight strength and corrosion resistance. The floating design automatically adjusts with changing water levels, while the straight dock layout provides a clean, streamlined configuration for swimming, fishing, relaxing, tying off watercraft, and expanding modular dock systems.

Foam-filled dock floats provide dependable flotation, while premium side stability floats increase buoyancy, improve side-to-side stability, and help protect watercraft during docking. Hinged frame connections allow natural dock articulation as water conditions change, helping reduce stress on the dock structure. The modular dock sections also allow for future expansion and layout customization.

The drop-in brown aluminum decking provides a durable, low-maintenance walking surface with a powder-coated wood-grain finish. The decking system simplifies installation and allows panels to be removed for replacement or maintenance.

24' Floating Dock Kit Includes:

• (3) 4' x 8' low-profile floating dock frames with hardware
• (4) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (4) J-bolt float mounting hardware sets
• (8) 43" x 13" x 7" side stability floats with hardware
• (1) floating hinge kit with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (6) 4' x 4' brown aluminum deck panels
• Assembly instructions

32' Floating Dock Kit Includes:

• (4) 4' x 8' low-profile floating dock frames with hardware
• (6) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (6) J-bolt float mounting hardware sets
• (12) 43" x 13" x 7" side stability floats with hardware
• (2) floating hinge kits with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (8) 4' x 4' brown aluminum deck panels
• Assembly instructions

40' Floating Dock Kit Includes:

• (5) 4' x 8' low-profile floating dock frames with hardware
• (8) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (8) J-bolt float mounting hardware sets
• (16) 43" x 13" x 7" side stability floats with hardware
• (2) floating hinge kits with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (10) 4' x 4" brown aluminum deck panels
• Assembly instructions

Vertical piling pipe is not included. The customer is responsible for determining the appropriate anchoring method for their waterfront location and installation.
