Patriot Docks Premium "T" Floating Dock w/ Brown Aluminum

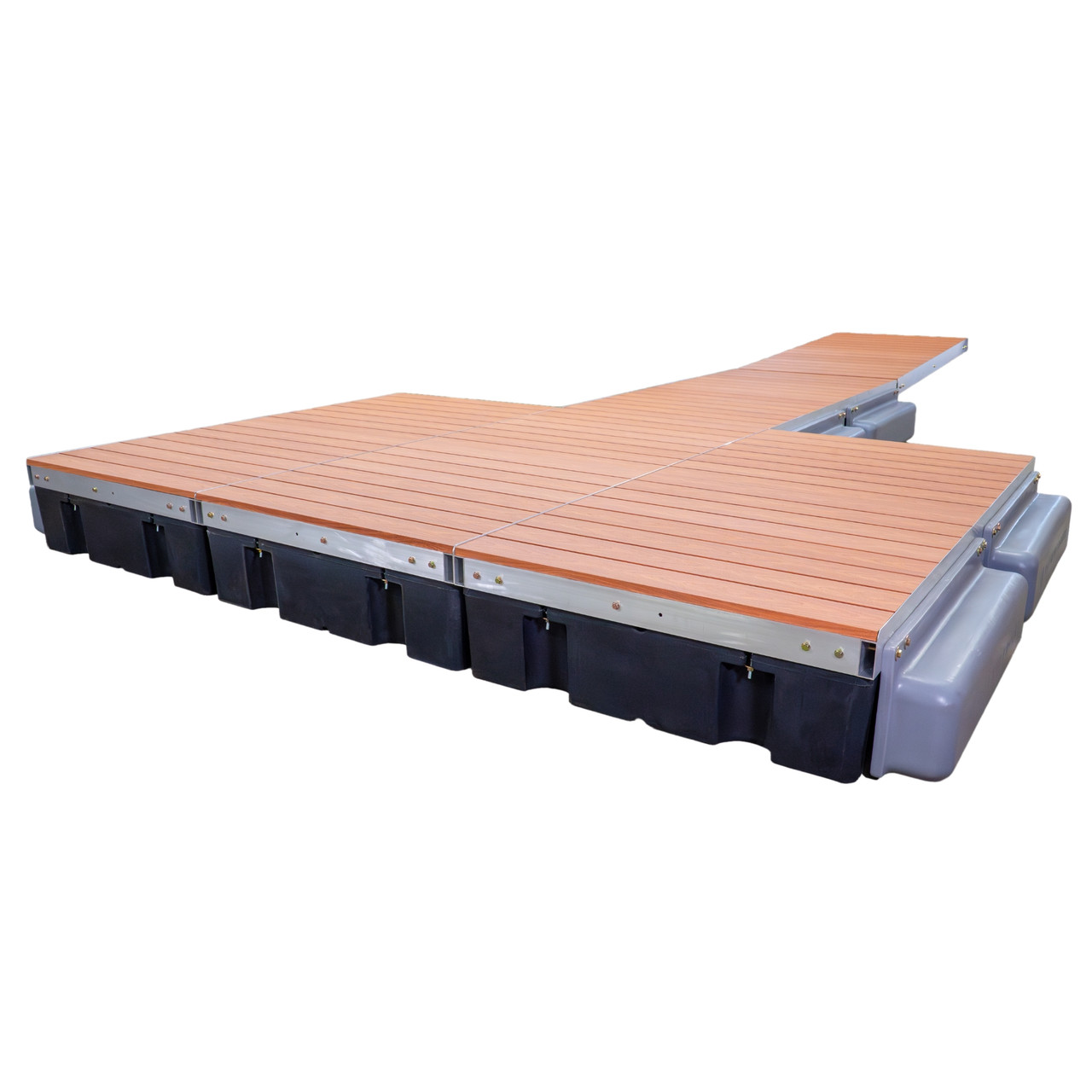

Patriot Docks Premium Low-Profile T-Shaped Floating Dock with Brown Aluminum Decking

The Patriot Docks Premium T-Shaped Floating Dock provides increased buoyancy, stability, and usable dock space for residential and recreational waterfront applications. Available in 24 ft., 32 ft., and 40 ft. configurations, this modular floating dock system is designed for lakes, reservoirs, rivers, and other waterfronts with fluctuating water levels or deeper water.

Constructed from marine-grade 6061-T6 aluminum, the low-profile frame offers lightweight strength, corrosion resistance, and easier seasonal handling. The T-shaped layout adds usable surface area and improves side-to-side stability, making the dock suitable for swimming, fishing, relaxing, launching kayaks and paddlecraft, and docking watercraft.

Foam-filled dock floats provide dependable buoyancy and leak protection, while side stability floats mounted along the outer edges add additional buoyancy and usable space while helping protect watercraft during docking. Hinged frame connections allow natural dock articulation as water conditions change, helping reduce stress on the dock structure.

The drop-in brown aluminum decking provides a durable, low-maintenance walking surface with a powder-coated wood-grain finish. The modular decking system simplifies installation and allows panels to be removed for seasonal service or future upgrades.

24' Floating Dock Kit Includes:

• (5) 4' x 8' low-profile floating dock frames with hardware
• (8) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (8) J-bolt float mounting hardware sets
• (8) 43" x 13" x 7" side stability floats with hardware
• (2) floating hinge kits with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (10) 4' x 4' brown aluminum deck panels
• Assembly instructions

32' Floating Dock Kit Includes:

• (6) 4' x 8' low-profile floating dock frames with hardware
• (10) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (10) J-bolt float mounting hardware sets
• (12) 43" x 13" x 7" side stability floats with hardware
• (2) floating hinge kits with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (12) 4' x 4' brown aluminum deck panels
• Assembly instructions

40' Floating Dock Kit Includes:

• (7) 4' x 8' low-profile floating dock frames with hardware
• (12) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (12) J-bolt float mounting hardware sets
• (16) 43" x 13" x 7" side stability floats with hardware
• (3) floating hinge kits with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (14) 4' x 4' brown aluminum deck panels
• Assembly instructions

Vertical piling pipe is not included. The customer is responsible for determining the appropriate anchoring method for their waterfront location and installation.
