Perko Compact 1-2-All Battery Switch

 Perko Compact 1-2-All Battery Switch

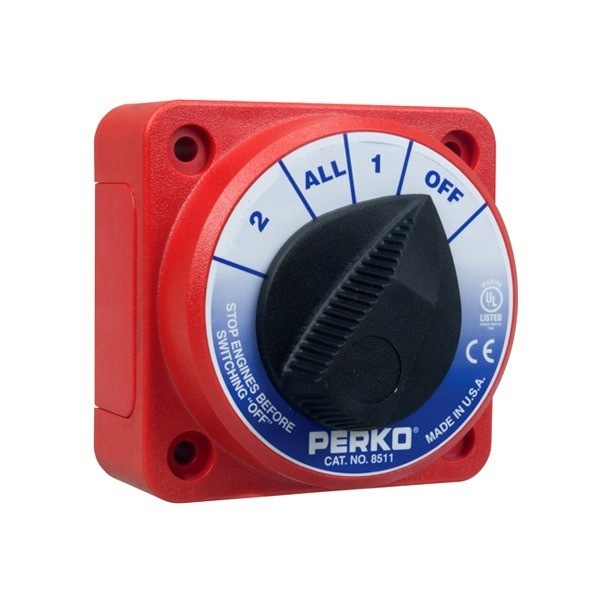

The Perko 8511 Battery Selector Switch is a compact and durable battery switch that has a bright red polycarbonate housing with a large easy-to-turn black knob. The Perko Compact Battery Selector Switch has a number of functions – its allows for a quick and easy way to shut down the entire electrical system in an emergency; this device also permits battery selection (of two or more batteries) for specific purposes, including starting engines, running accessories or even recharging. This device can also facilitate putting batteries in parallel for emergency starting when one or both batteries are substantially discharged. Selector switches are designed with a "make before break" feature. This allows switching between the "1", the "ALL", and the "2" positions while the engine is running.

The Perko Compact Battery Switch has a small footprint for easy installation. This switch can be mounted in numerous locations including the engine rooms of gasoline powered boats. Four removable skirt panels allow for easy cable connection from different directions. High conductivity studs are long enough to handle more than 1 cable and strong enough for torque needed for secure connections.

Features:

• Requires 1/3rd less space to mount than standard switches
• Popular 90° Easy to Identify Position Rotation
• For Use with 12, 24, and 32 Volt Marine Electrical Systems
• Higher Rating than Popular 8500 Series Switches
• Same Bolt Pattern as Popular 8500 Series
• Smooth, Positive Position Selector
• Four removable side skirt panels for easy cable access and mounting
• Made in the USA

Specifications:

• Ignition protected
• Capacity - 315 AMPS continuous, 450 AMPS 5 Min. intermittent
• Terminal stud size: 3/8"
• Width: 4"
• Height: 4"
• Depth: 3"

Frequently Asked Questions

What is the Perko Compact 1-2-All Battery Switch used for?

The Perko Compact 1-2-All Battery Switch allows users to select between two or more batteries for starting engines, running accessories, or recharging. It can also shut down the electrical system in an emergency and facilitate connecting batteries in parallel for emergency starting.

What does the 1-2-All selector on the Perko Compact Battery Switch do?

The Perko Compact Battery Switch uses a make-before-break design that allows switching between the 1, ALL, and 2 positions while the engine is running. This design permits battery selection or combining batteries for the applicable electrical system.

What voltage systems is the Perko Compact 1-2-All Battery Switch designed for?

The Perko Compact Battery Switch is designed for use with 12, 24, and 32 volt marine electrical systems. It has a capacity of 315 amps continuous and 450 amps intermittent for 5 minutes.

Can the Perko Compact Battery Switch be installed in a gasoline-powered boat?

Yes. The Perko Compact Battery Switch is ignition protected and can be mounted in numerous locations, including engine rooms of gasoline-powered boats.

What are the mounting and cable connection features of the Perko Compact Battery Switch?

The Perko Compact Battery Switch requires one-third less mounting space than standard switches and uses the same bolt pattern as popular 8500 Series switches. Four removable side skirt panels provide cable access and mounting flexibility from different directions.

What are the dimensions and terminal specifications of the Perko Compact 1-2-All Battery Switch?

The Perko Compact 1-2-All Battery Switch measures 4 inches wide, 4 inches high, and 3 inches deep. It has 3/8-inch terminal studs, which are designed to accommodate more than one cable and provide the strength needed for secure connections.
