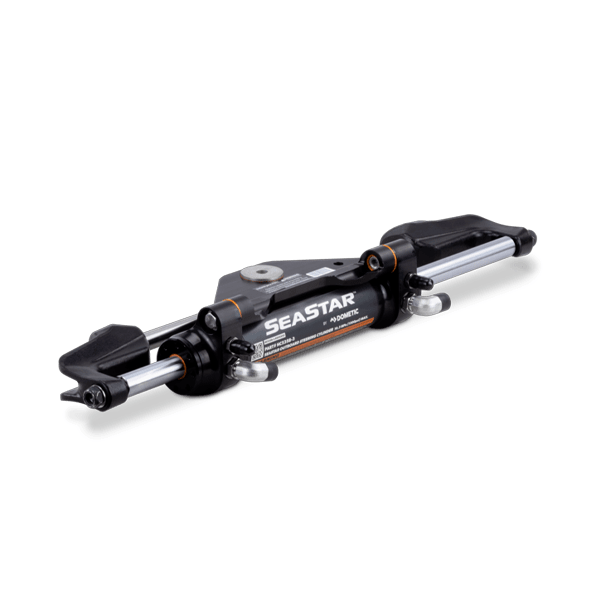

SeaStar HC5358-3 Front Mount Outboard Hydraulic Steering Cylinder - Inverted Plate

SeaStar HC5358-3 Front Mount Outboard Hydraulic Steering Cylinder - Inverted Plate

SeaStar Outboard Steering Cylinders offer excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. They also feature independent engine tilt for twin/triple engine installations and varying lock-to-lock turn ration dependent on helm selection. The new end gland sealing system has been redesigned with an 8-hole design for improved serviceability and updated with Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.

Features

• actuation Stroke Length : 8"
• Horse Power Rating : 350hp
• Maximum Pressure Rating : 1500 psi
• Shaft Diameter : 0.75"

Dimension

• Depth : 4 7/8'
• Width: 21 3/4"
• Weight : 9.50 lbs
• Fluid Volume : 8.34oz
