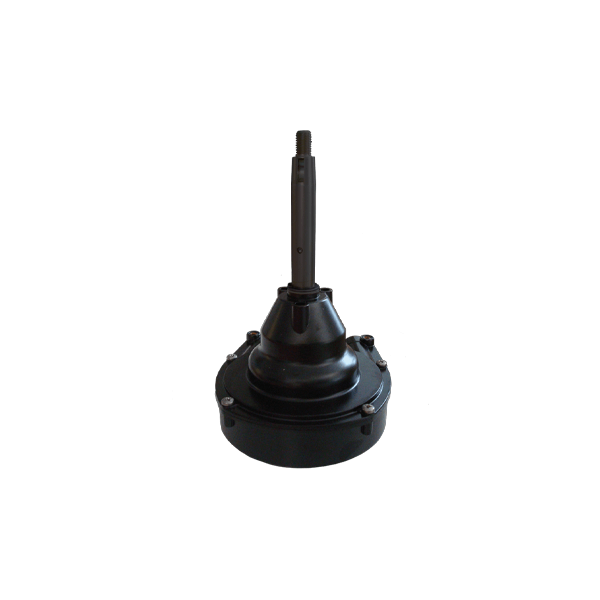

UFlex T93 Zero Torque Rotary Helm

UFlex T93 Zero Torque Rotary Helm

UFlex T93ZT High Efficiency Zero Torque Rotary Helm is engineered for high-performance steering with minimal feedback. Designed for easy installation and long-term durability, it delivers smooth, precise control in high-efficiency marine applications. The T93 is not for use on boats where the engines equipped exceed the max horsepower rating of the boat.

Features

• Specifically designed for high performance and high efficiency applications
• M90 Mach cable : performance, flexibility and durability increased by top quality materials and construction.
• Fast connect, Easy installation, patented end fitting.
• Stainless steel cable output end featuring patented gasket, engine side
• Corrosion resistant materials
• Standard 3/4” stainless steel tapered shaft
• Exceeds EN 28848 and ABYC P17 safety standards

Specification

• Installation: 90 or 20 degree
• M90 steering cable stroke: 228 mm (9")
• Lock to lock steering wheel turns: 4.2 approx.
• Max. steering wheel diameter: 406 mm(16")
• Suggested cable bend radius: 200 mm (7.87")
• Min. steering cable bend radius: 150 mm (5.9")
