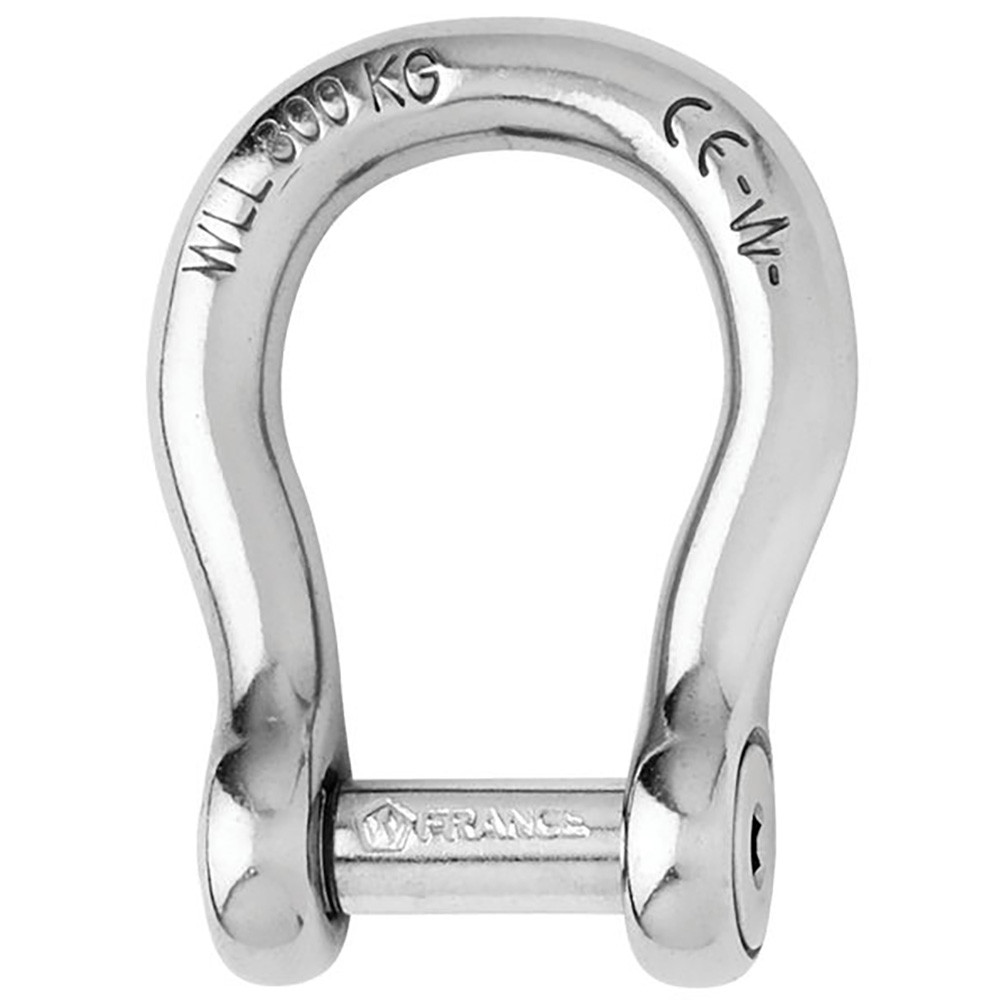

Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5\/16"

Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"

Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5\/16"
SKU:
XWIC-01344
$63.65
$47.05
$16.60
Availability:
Ships next business day if ordered in the next:
Frequently Bought Together

Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"

Features:

  • Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Ideal for linking chains and anchor
  • On the halyard, avoids damaging the sails
  • To be used when the clutter is reduced
  • To be used when ample room is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 2110 / (kg) 960
  • WLL: (lb) 1190 / (kg) 540
  • Breaking load: (lb) 5950 / (kg) 2700
  • Weight: (lb) 0.148 / (g) 67

Dimensions:

  • A: (inch) 1 29/64" / (mm) 37
  • B: (inch) 5/8" / (mm) 16
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 5/8" / (mm) 16
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 9/32" / (mm) 7
  • F: (inch) 63/64" / (mm) 25
  • M: (inch) 1 37/64" / (mm) 40

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)

California Residents: warning sign WARNING Cancer and Reproductive Harm - P65Warnings.ca.gov

Other Details

Supplier Number:
97643
