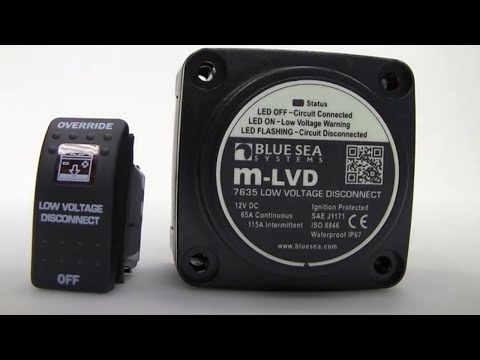

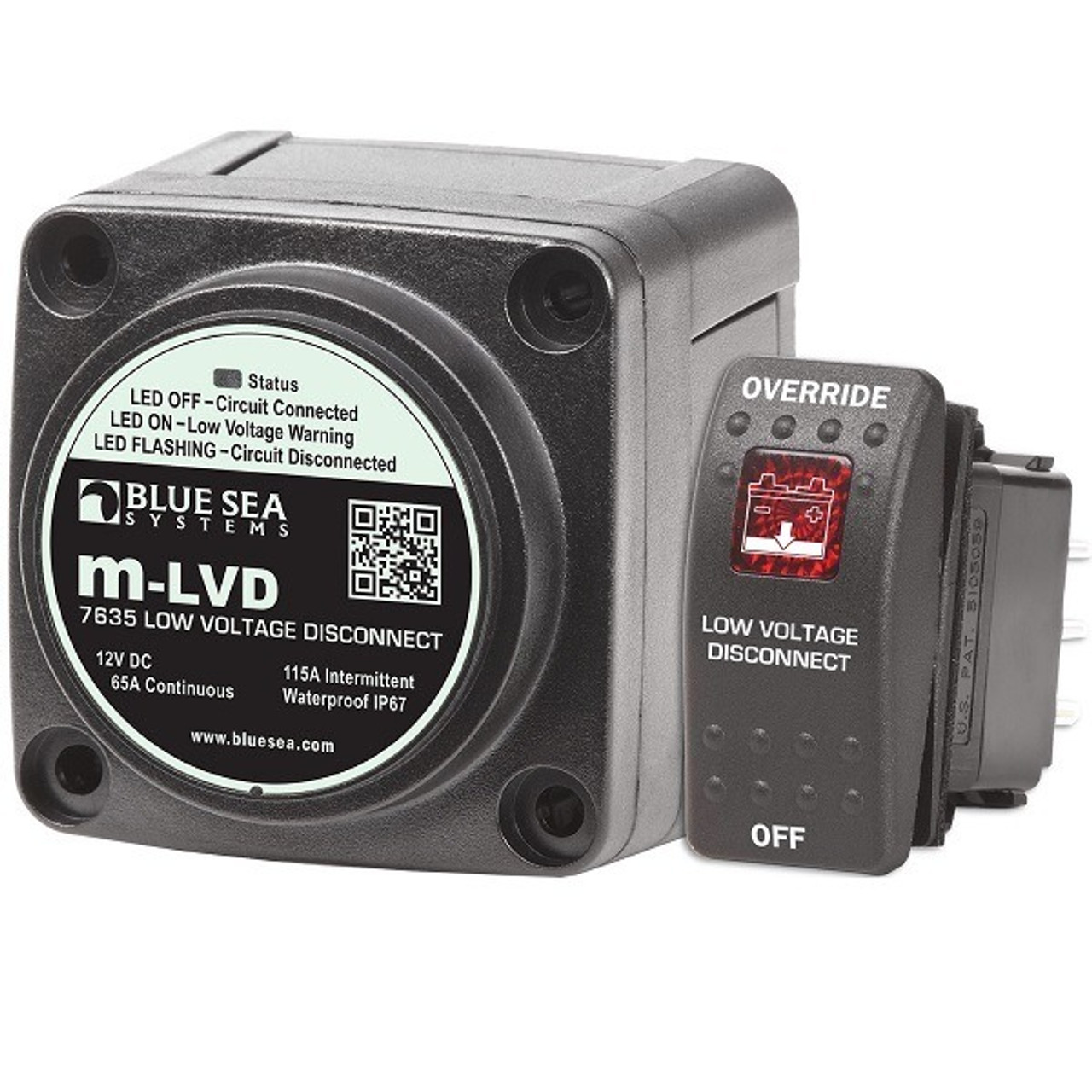

Blue Sea Systems m-LVD Low Voltage Disconnect

The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

Remote Control Switch Functions:

• Disconnect Voltage Adjustment - Sets desired disconnect voltage
• Override - Temporarily delays circuit disconnect for 10 minutes
• OFF - Temporarily disconnects circuits until voltage rises
• Override or OFF - Silences alarm (optional alarm required)

Features:

• Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
• Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
• Case design allows surface, front panel, or rear panel mounting
• Rear insulating cover protects rear contacts
• Waterproof – rated IP67 for temporary immersion

Specifications:

• Nominal Voltage: 12V DC
• Amperage Operating Current: 95mA (Connected)  |  4mA (Open)
• Terminal Stud Torque: 60 in-lb
• Continuous Rating: 65A
• Intermittent Rating: 115A (5 min)
• Maximum Cable Size: 1/0 AWG
• Terminal Stud Length: 7/16"
• Terminal Stud Size: 1/4" - 20
• Weight: 0.77 lb.

Click to Download Blue Sea m-LVD Low Voltage Disconnect Instructions
